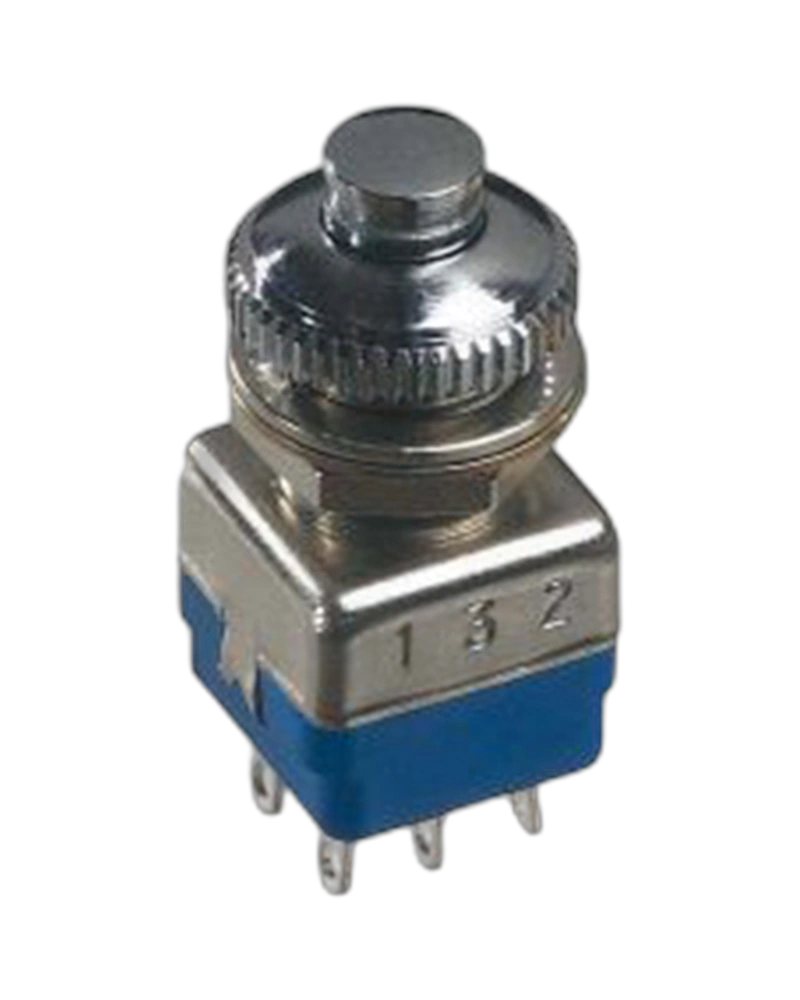

Panel Switches 10400
The APEM Panel Switches 10400 is a Switches and Pushbutton with documented product-specific characteristics including panel thickness: 3.5 mm (.138) Aug 16, 2024 · 10400 Professional pushbutton switches with treaded bushing dia.10 mm (.393); Bushing Diameter: bushing dia.10 mm; Torque: 1.50 Nm (1.106 Ft.lb) max. applied to nut.
Key Features
- panel thickness: 3.5 mm (.138) Aug 16, 2024 · 10400 Professional pushbutton switches with treaded bushing dia.10 mm (.393)
- Single and double pole momentary configurations Solder lug termin
- Single and double pole momentary configurations
- Solder lug terminals
- Gold plated silver or coin silver contacts are available
- Optional color caps
- CECC approved
- Available with matte black finish
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Bushing Diameter | bushing dia.10 mm |
Specifications
| Feature | Specification |
|---|
| Torque | 1.50 Nm (1.106 Ft.lb) max. applied to nut |
| Minimum load | 100 µA 10 mV |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 5 00VDC |
| Electrical life | 50,000 cycles |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Case | diallylphthalate (DAP) |
| Actuator | brass, chrome plated |
| Housing | brass, nickel plated |
