Product Overview

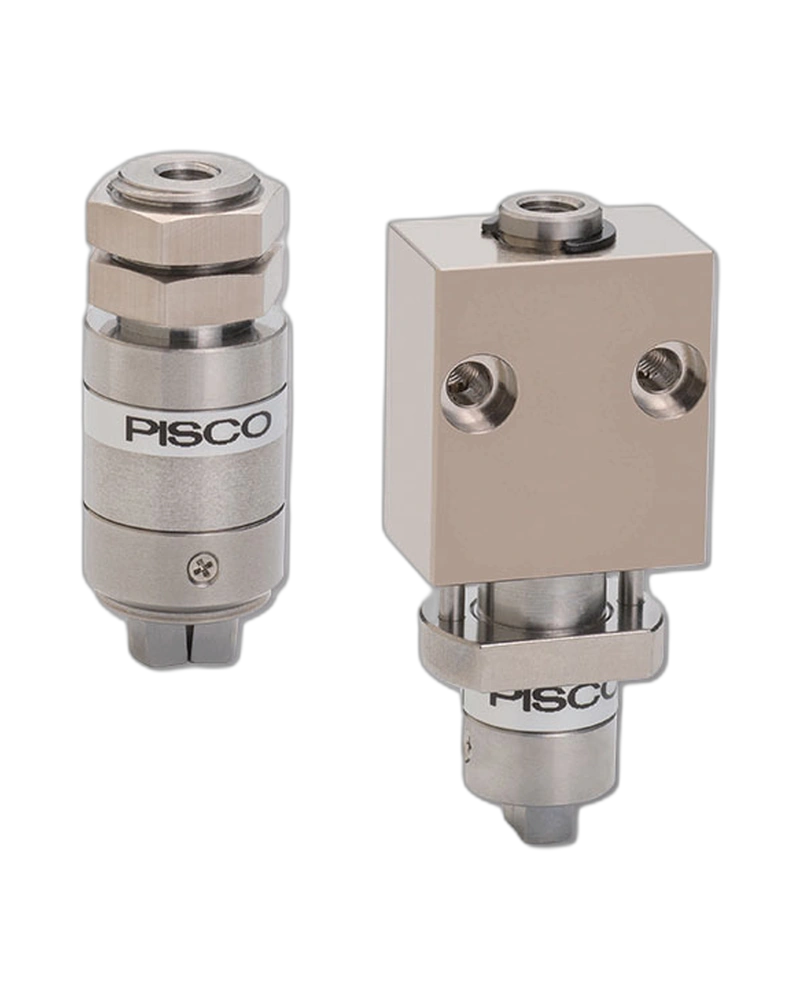

The Opening Gripper is a compact, single-acting air finger designed for precise and reliable opening of workpieces without the need for dedicated fingers. Its normally closed configuration ensures secure initial contact, while its light weight and miniature size make it ideal for applications involving simple or irregularly shaped parts. The gripper operates efficiently in tight spaces and reduces mechanical complexity by eliminating the need for separate finger components.

Construction and Materials

Constructed entirely from stainless steel, the Opening Gripper features no copper-based metallic materials in any flow path. This design ensures compatibility with a wide range of industrial environments and eliminates potential corrosion or contamination risks associated with copper. The robust, corrosion-resistant material composition provides long-term durability under demanding operational conditions.

Configuration and Connections

The gripper is configured as a floating type mechanism, which enhances the effectiveness of the built-in work stopper. This design allows for stable gripping performance by preventing unintended movement during operation. No additional fingers are required for simple shapes, simplifying integration and reducing component count in automated systems.

Operating Characteristics

Operated using compressed air, the Opening Gripper functions within an operating pressure range of 0.2 to 0.7 MPa. It is rated for continuous use across temperatures from 0 to 60℃, with no freezing allowed. The system is designed to function reliably under standard industrial air conditions without degradation in performance or safety.

Sizes and Options

The product is available in a range of miniature sizes optimized for compact installations. All variants maintain consistent mechanical design and material specifications. No color options are offered—only functional configurations tailored to specific space and load requirements.

Installation and Integration

Integration with existing pneumatic systems is straightforward, as the gripper features standard air inlet connections compatible with typical industrial air lines. The floating mechanism and work stopper provide built-in stability, allowing direct mounting or attachment without additional alignment components.
