Explore performance details, construction highlights, applications, and technical information in one clear overview.

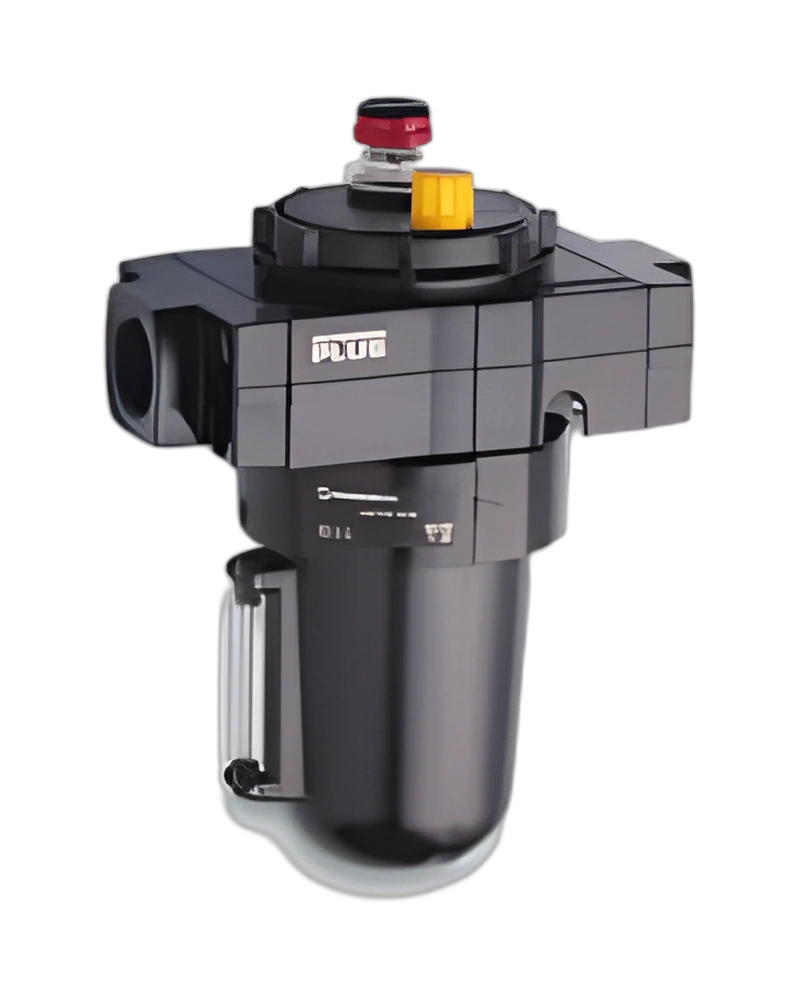

L68C-NNE-MVN is a NORGREN configuration represented by Olympian Plus Oil fog lubricator, High Flow, 5l metal bowl. This product entry presents the listed configuration and model-specific technical information for selection and comparison.
The selected configuration is identified by Olympian Plus Oil fog lubricator, High Flow, 5l metal bowl. The principal recorded product data includes Medium: Compressed air only. Maximum Inlet Pressure: 17 bar (246 psi). Drain Type: Without standard. Operating Temperature: -20 ... +80°C (-4 ... +176°F). Flow: Micro & Oil-fog. Bowl Material: Aluminium (0,5 and 1 l);. Materials: Body and yoke: Aluminium. Maximum Supply Pressure: 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog.
Flow: Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size. Drain Type: Without standard Manual optional. Operating Temperature: -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).. Materials: Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system. Media: Compressed air. Port Size: Without Yoke. Drain Type: Manual. Bowl Material: Steel. Operating Temperature: -20 ... 80 °C, -4 ... 176 °F. Maximum Inlet Pressure: 10 bar, 145 psi. Lubricator Fog Type: Oil fog. Bowl Capacity: 5 l.
Flow: 400 dm3/s, 848 scfm. Materials - Body: Aluminum alloy. Materials - Bowl: Steel. Materials - Elastomers: Nitrile rubber (NBR). Dimensions - Height: 465 mm. Dimensions - Length: 244 mm. Dimensions - Width: 244 mm. Weight: 23.8 kg. Country of Origin: Czechia. Range: L68C.
Languages 0 Basket
The listed product specifies Medium as Compressed air only. This stated value forms part of the model-specific product information.
For this configuration, Maximum Inlet Pressure is 17 bar (246 psi). The value is retained as part of the product definition used for catalogue selection.
| Specification | Value |
|---|---|
| Medium | Compressed air only |
| Maximum Inlet Pressure | 17 bar (246 psi) |
| Drain Type | Without standard |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) |
| Flow | Micro & Oil-fog |
| Bowl Material | Aluminium (0,5 and 1 l); |
| Materials | Body and yoke: Aluminium |
| Maximum Supply Pressure | 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog |
| Flow | Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size |
| Drain Type | Without standard Manual optional |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system |
| Media | Compressed air |
| Port Size | Without Yoke |
| Drain Type | Manual |
| Bowl Material | Steel |
| Operating Temperature | -20 ... 80 °C, -4 ... 176 °F |
| Maximum Inlet Pressure | 10 bar, 145 psi |
| Lubricator Fog Type | Oil fog |
| Bowl Capacity | 5 l |
| Flow | 400 dm3/s, 848 scfm |
| Materials - Body | Aluminum alloy |
| Materials - Bowl | Steel |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Dimensions - Height | 465 mm |
| Dimensions - Length | 244 mm |
| Dimensions - Width | 244 mm |
| Weight | 23.8 kg |
| Country of Origin | Czechia |
| Range | L68C |
