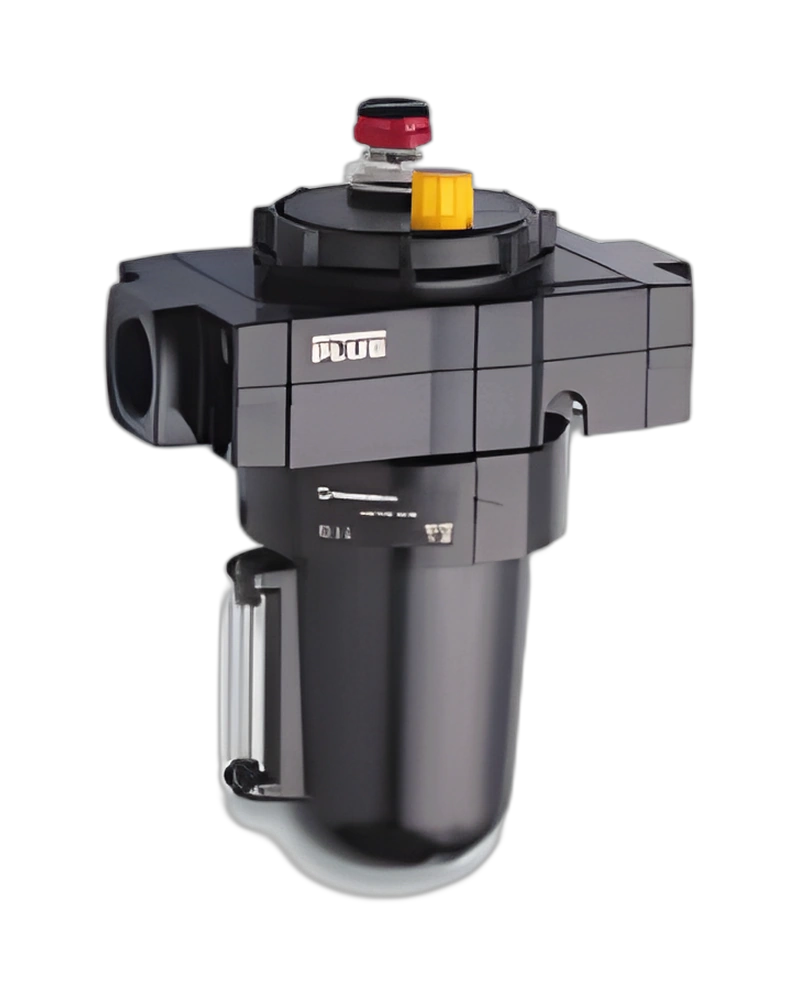

L68M-NNP-MVN is a NORGREN Olympian Plus micro fog lubricator, without yoke, 5l metal bowl configuration.
Medium: Compressed air only. Maximum Inlet Pressure: 17 bar (246 psi). Drain Type: Without standard. Operating Temperature: -20 ... +80°C (-4 ... +176°F). Flow: Micro & Oil-fog. Bowl Material: Aluminium (0,5 and 1 l);. Materials: Body and yoke: Aluminium. Maximum Supply Pressure: 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog. Flow: Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size. Drain Type: Without standard Manual optional. Operating Temperature: -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).. Materials: Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system. Media: Compressed air. Port Size: Without Yoke. Drain Type: Manual. Bowl Material: Steel. Operating Temperature: -20 ... 80 °C, -4 ... 176 °F. Maximum Inlet Pressure: 10 bar, 145 psi. Lubricator Fog Type: Micro fog. Bowl Capacity: 5 l. Flow: 175 dm3/s, 371 scfm. Materials - Body: Aluminum alloy. Materials - Bowl: Steel. Materials - Elastomers: Nitrile rubber (NBR). Dimensions - Height: 458 mm. Dimensions - Length: 244 mm. Dimensions - Width: 209 mm. Weight: 16 kg. Country of Origin: Czechia. Range: L68M.
The selected configuration specifies Medium as Compressed air only. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
For this configuration, Maximum Inlet Pressure is 17 bar (246 psi). The product content retains this value exactly as supplied for the selected model and does not substitute a value from another variant.
The product specification includes Drain Type: Without standard. This is one of the technical characteristics that defines the configuration presented on this product page.
| Specification | Value |
|---|---|
| Medium | Compressed air only |
| Maximum Inlet Pressure | 17 bar (246 psi) |
| Drain Type | Without standard |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) |
| Flow | Micro & Oil-fog |
| Bowl Material | Aluminium (0,5 and 1 l); |
| Materials | Body and yoke: Aluminium |
| Maximum Supply Pressure | 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog |
| Flow | Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size |
| Drain Type | Without standard Manual optional |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system |
| Media | Compressed air |
| Port Size | Without Yoke |
| Drain Type | Manual |
| Bowl Material | Steel |
| Operating Temperature | -20 ... 80 °C, -4 ... 176 °F |
| Maximum Inlet Pressure | 10 bar, 145 psi |
| Lubricator Fog Type | Micro fog |
| Bowl Capacity | 5 l |
| Flow | 175 dm3/s, 371 scfm |
| Materials - Body | Aluminum alloy |
| Materials - Bowl | Steel |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Dimensions - Height | 458 mm |
| Dimensions - Length | 244 mm |
| Dimensions - Width | 209 mm |
| Weight | 16 kg |
| Country of Origin | Czechia |
| Range | L68M |
