Explore performance details, construction highlights, applications, and technical information in one clear overview.

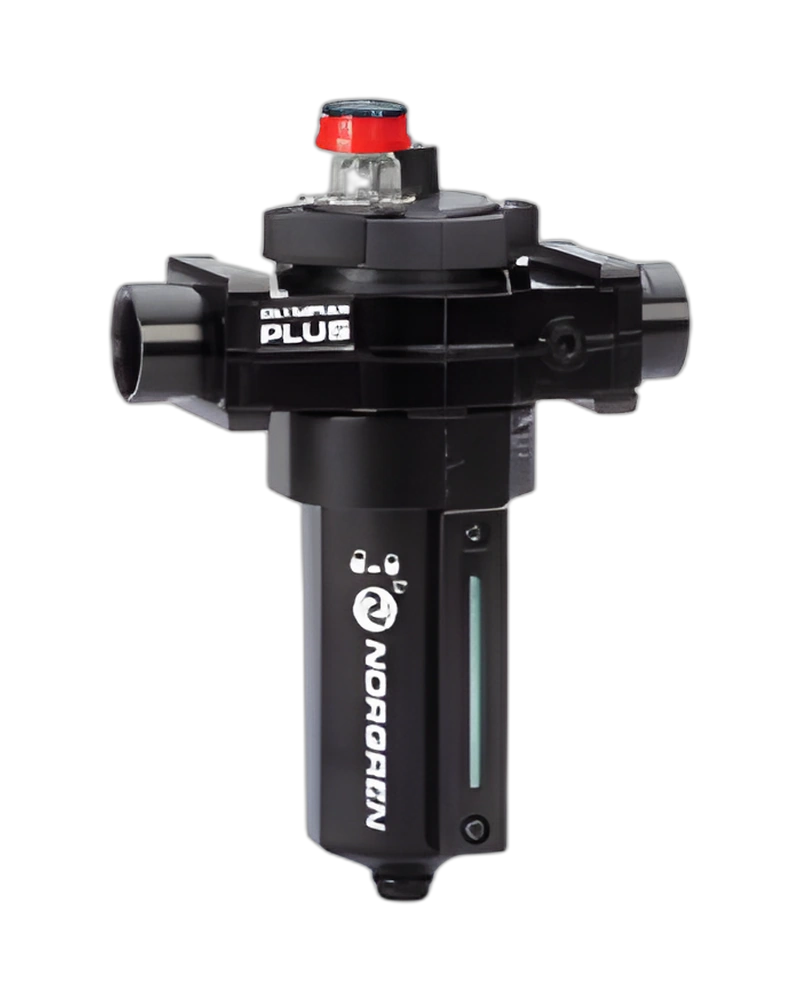

L64M-2GP-EAN is a NORGREN Olympian Plus micro fog lubricator, G1/4, 1l metal bowl closed configuration.
Media: Compressed air. Port Size: 1/4" ISO G. Drain Type: Closed bowl. Bowl Material: Aluminum alloy. Operating Temperature: -20 ... 80 °C, -4 ... 176 °F. Maximum Inlet Pressure: 17 bar, 246 psi. Lubricator Fog Type: Micro fog. Bowl Capacity: 1 l. Flow: 25 dm3/s, 53 scfm. Materials - Body: Zinc alloy. Materials - Bowl: Aluminum alloy. Materials - Elastomers: Nitrile rubber (NBR). Country of Origin: Czechia. Range: L64M. Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /. Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo). Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5. Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250. Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '. Gauge: P R F J K V U T. Materials: Scale.
The selected configuration specifies Media as Compressed air. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
For this configuration, Port Size is 1/4" ISO G. The product content retains this value exactly as supplied for the selected model and does not substitute a value from another variant.
The product specification includes Drain Type: Closed bowl. This is one of the technical characteristics that defines the configuration presented on this product page.
The stated Bowl Material is Aluminum alloy, forming part of the technical information associated with this exact product configuration.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Port Size | 1/4" ISO G |
| Drain Type | Closed bowl |
| Bowl Material | Aluminum alloy |
| Operating Temperature | -20 ... 80 °C, -4 ... 176 °F |
| Maximum Inlet Pressure | 17 bar, 246 psi |
| Lubricator Fog Type | Micro fog |
| Bowl Capacity | 1 l |
| Flow | 25 dm3/s, 53 scfm |
| Materials - Body | Zinc alloy |
| Materials - Bowl | Aluminum alloy |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Country of Origin | Czechia |
| Range | L64M |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
