Product Overview

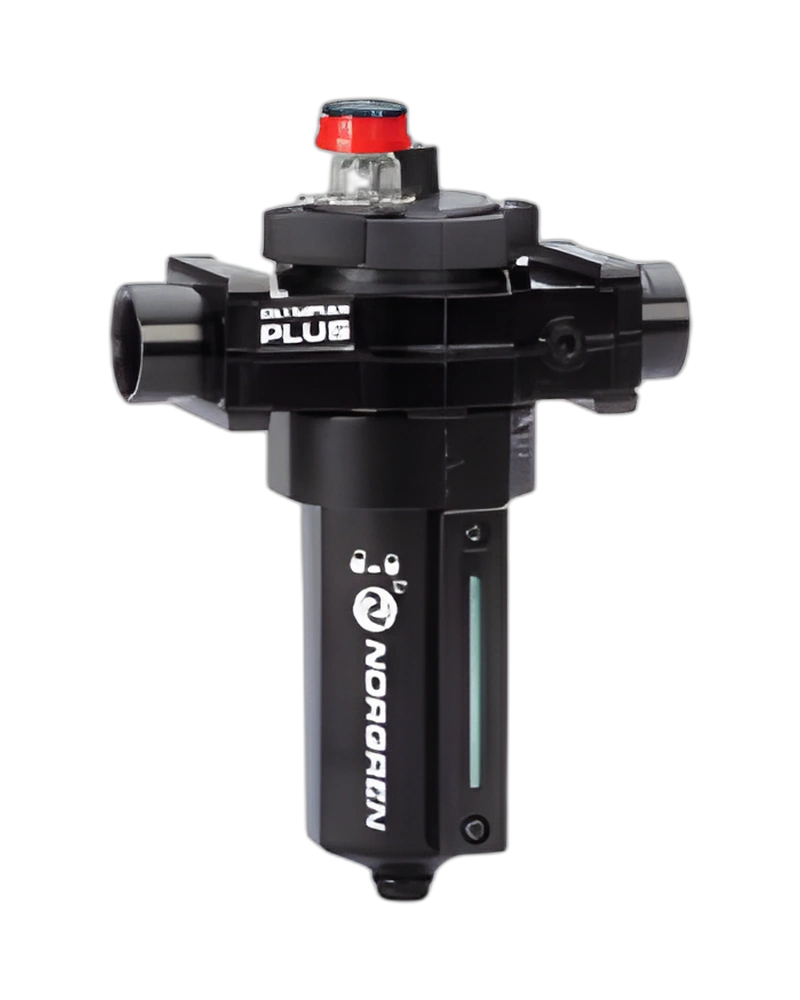

L64M-4GP-EAN is a NORGREN Olympian Plus micro fog lubricator, G1/2, 1l metal bowl closed configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Lubricator Fog Type: Micro fog; Country of Origin: Czechia; Range: L64M. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Media: Compressed air; Port Size: 1/2" ISO G; Drain Type: Closed bowl; Operating Temperature: -20 ... 80 °C, -4 ... 176 °F; Maximum Inlet Pressure: 17 bar, 246 psi; Flow: 72 dm3/s, 153 scfm. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Bowl Material: Aluminum alloy; Bowl Capacity: 1 l; Materials - Body: Zinc alloy; Materials - Bowl: Aluminum alloy; Materials - Elastomers: Nitrile rubber (NBR). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Dimensions and Product Data

Additional product data includes Dimensions - Height: 343 mm; Dimensions - Length: 125 mm; Dimensions - Width: 110 mm; Weight: 2.5 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.

Product Information

Languages 0 Basket Products Industries

Technical Specification Summary

Media is specified as Compressed air. Port Size is specified as 1/2" ISO G. Drain Type is specified as Closed bowl. Bowl Material is specified as Aluminum alloy. Operating Temperature is specified as -20 ... 80 °C, -4 ... 176 °F. Maximum Inlet Pressure is specified as 17 bar, 246 psi. Lubricator Fog Type is specified as Micro fog. Bowl Capacity is specified as 1 l. Flow is specified as 72 dm3/s, 153 scfm. Materials - Body is specified as Zinc alloy. Materials - Bowl is specified as Aluminum alloy. Materials - Elastomers is specified as Nitrile rubber (NBR). Dimensions - Height is specified as 343 mm. Dimensions - Length is specified as 125 mm. Dimensions - Width is specified as 110 mm. Weight is specified as 2.5 kg. Country of Origin is specified as Czechia. Range is specified as L64M.
