Explore performance details, construction highlights, applications, and technical information in one clear overview.

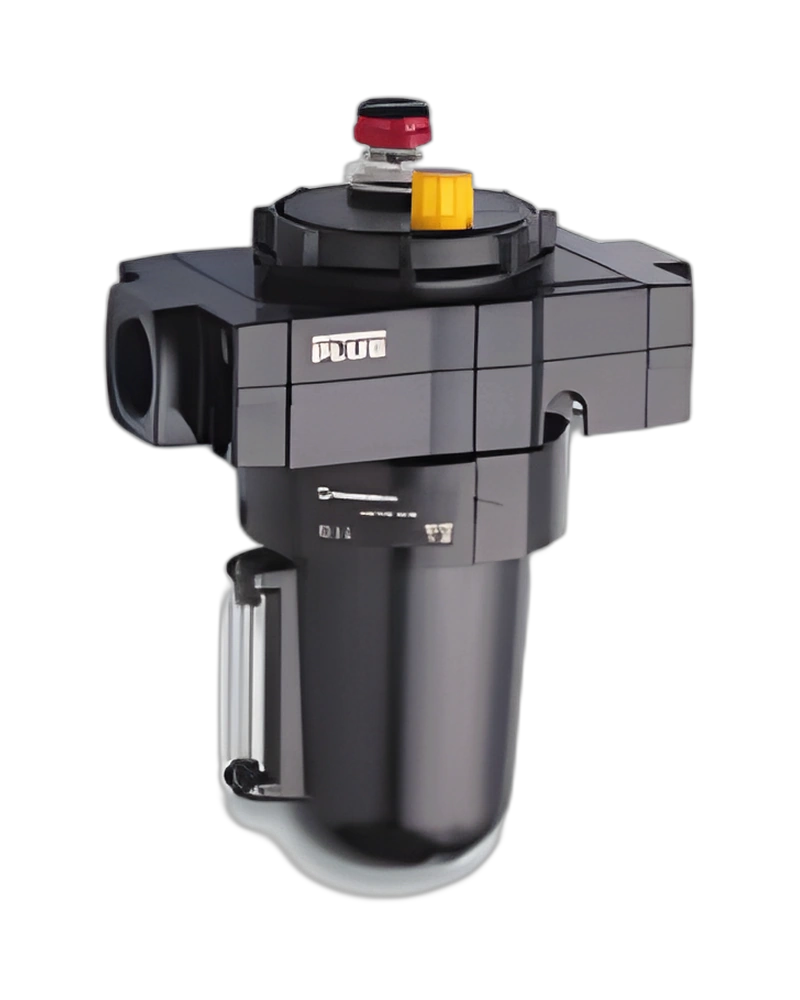

L68M-8AP-ERN is a NORGREN Olympian Plus micro fog lubricator, 1" PTF, metal bowl closed configuration. The product entry brings together the stated connection, drainage, filtration and other technical characteristics for this exact listed model, so the content remains focused on the selected configuration.
The core configuration is defined by Medium: Compressed air only; Lubricator Fog Type: Micro fog; Country of Origin: Czechia; Range: L68M. These values identify the product configuration and distinguish the listed arrangement from other configurations in the same range.
The available operating data specifies Maximum Inlet Pressure: 17 bar (246 psi); Drain Type: Without standard; Operating Temperature: -20 ... +80°C (-4 ... +176°F); Flow: Micro & Oil-fog; Maximum Supply Pressure: 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog; Flow: Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size; Drain Type: Without standard Manual optional; Operating Temperature: -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).; Media: Compressed air. Where pressure, temperature, flow, media, adjustment or drain information is provided, these values are included directly so the description remains aligned with the listed configuration.
The construction data records Bowl Material: Aluminium (0,5 and 1 l);; Materials: Body and yoke: Aluminium; Materials: Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system; Bowl Material: Aluminum alloy; Bowl Capacity: 0.5 l; Materials - Body: Aluminum alloy; Materials - Bowl: Aluminum alloy; Materials - Elastomers: Nitrile rubber (NBR). These material details describe the components and material entries associated with the listed product rather than making broader durability or compatibility claims.
Physical and additional catalogue information includes Dimensions - Height: 264 mm; Dimensions - Length: 190 mm; Dimensions - Width: 108 mm; Weight: 2.04 kg. This information can be used alongside the configuration and operating values when selecting the listed model.
Languages 0 Basket Products Industries
| Specification | Value |
|---|---|
| Medium | Compressed air only |
| Maximum Inlet Pressure | 17 bar (246 psi) |
| Drain Type | Without standard |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) |
| Flow | Micro & Oil-fog |
| Bowl Material | Aluminium (0,5 and 1 l); |
| Materials | Body and yoke: Aluminium |
| Maximum Supply Pressure | 17 bar (246 psi) 10 bar (145 psi) for 5 litre bowl only Start point: Minimum flow required for lubricator operation at 6,3 bar (91 psi) inlet pressure Micro or Oil-fog |
| Flow | Micro & Oil-fog: 175 dm3/s (371 scfm) High flow: 400 dm3/s (848 scfm) Port size 1”, Operating pressure: 6,3 bar (91 psi) Δp: 0,5 bar (7 psi) Bowl size |
| Drain Type | Without standard Manual optional |
| Operating Temperature | -20 ... +80°C (-4 ... +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | Body and yoke: Aluminium Bowl: Aluminium (0,5 and 1 l); Steel (5 l) Sight glass: Pyrex (0,5 and 1l); PA (5 l) Sight dome: Grilamid TR55 Elastomers: NBR L68M, L68C - Olympian Plus plug-in system |
| Media | Compressed air |
| Port Size | 1" PTF |
| Drain Type | Closed bowl |
| Bowl Material | Aluminum alloy |
| Operating Temperature | -20 ... 80 °C, -4 ... 176 °F |
| Maximum Inlet Pressure | 17 bar, 246 psi |
| Lubricator Fog Type | Micro fog |
| Bowl Capacity | 0.5 l |
| Flow | 175 dm3/s, 371 scfm |
| Materials - Body | Aluminum alloy |
| Materials - Bowl | Aluminum alloy |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Dimensions - Height | 264 mm |
| Dimensions - Length | 190 mm |
| Dimensions - Width | 108 mm |
| Weight | 2.04 kg |
| Country of Origin | Czechia |
| Range | L68M |
