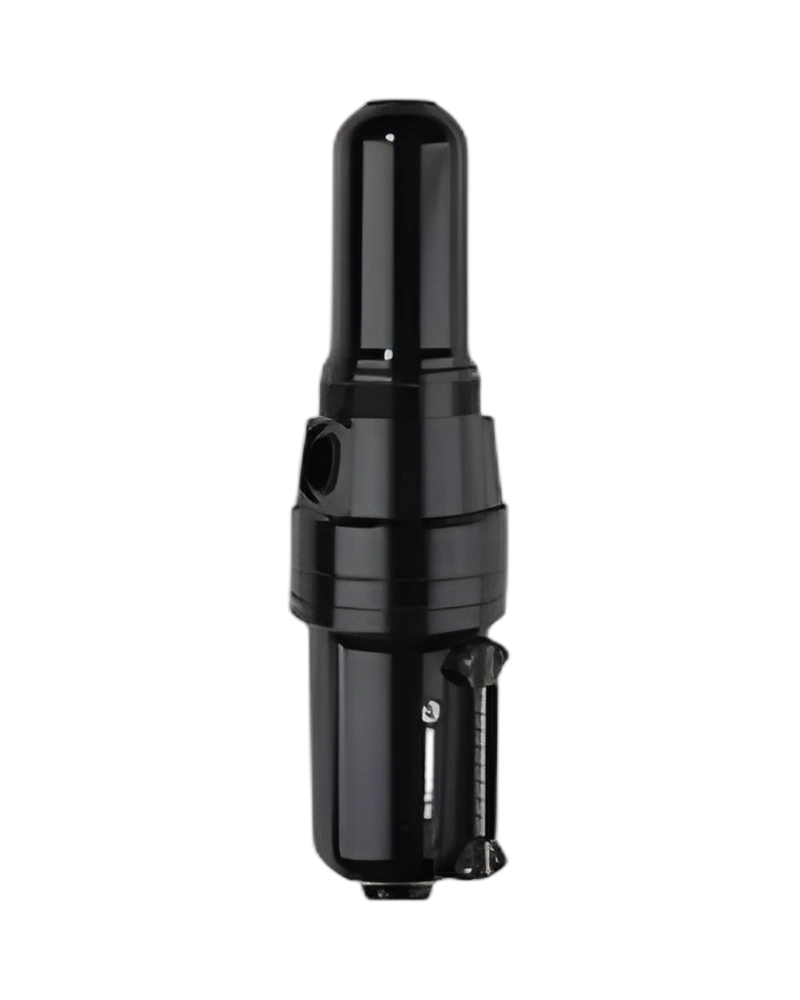

F84V-6AN-EMA is a NORGREN configuration represented by Oil vapour removal filter. This product entry presents the listed configuration and model-specific technical information for selection and comparison.
The selected configuration is identified by Oil vapour removal filter. The principal recorded product data includes Medium: Compressed air only. Maximum Inlet Pressure: Polycarbonate bowl. Port Size: G3/8, G1/2, G3/4,. Port Size: G1/2. Port Size: 1/2”. Port Size: 3/8”. Operating Temperature: -20 ... +65°C (-4 ... +149°F). Flow: 25 dm³/s.
Materials: Body: Die cast aluminium. Remaining Oil Content: 0,003 mg/m³ max. at +21°C. Bowl Material: - High Corrosion resistance: Body and Metal bowl with electrophoretic paint finish - Air purity class in accordance with ISO8573-1:2010: -:7:0* *Tested in accordance with the methods laid out in ISO 12500- 2 using an inlet oil aerosol. Maximum Supply Pressure: Polycarbonate bowl: 10 bar (145 psi) Metal bowl: 20 bar (290 psi). Remaining Oil Content: 0,003 mg/m³ max. at +21°C (+69°F). Port Size: G3/8, G1/2, G3/4, 3/8 PTF, 1/2 PTF, 3/4 PTF. Flow: 25 dm³/s To maintain stated oil content at port size: G1/2 Operating pressure: 6,3 bar (91 psi). ATEX: Filters F84 are in conformity with Atex 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db. Operating Temperature: -20 ... +65°C (-4 ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Note: Install an F84C coalescing filter upstream of the F84V filter for maximum service life.. Materials: Body: Die cast aluminium Body covers: ABS Transparent Bowl : Polycarbonate with Polyproplyene Guard. Metal Bowl: Die cast Aluminium Bowl ‘o'- ring: Chloroprene Elastomers: NBR.
Languages 0 Basket
The listed product specifies Medium as Compressed air only. This stated value forms part of the model-specific product information.
For this configuration, Maximum Inlet Pressure is Polycarbonate bowl. The value is retained as part of the product definition used for catalogue selection.
The product record includes Port Size: G3/8, G1/2, G3/4,. This is a configuration-specific value for the listed NORGREN model.
| Specification | Value |
|---|---|
| Medium | Compressed air only |
| Maximum Inlet Pressure | Polycarbonate bowl |
| Port Size | G3/8, G1/2, G3/4, |
| Port Size | G1/2 |
| Port Size | 1/2” |
| Port Size | 3/8” |
| Operating Temperature | -20 ... +65°C (-4 ... +149°F) |
| Flow | 25 dm³/s |
| Materials | Body: Die cast aluminium |
| Remaining Oil Content | 0,003 mg/m³ max. at +21°C |
| Bowl Material | - High Corrosion resistance: Body and Metal bowl with electrophoretic paint finish - Air purity class in accordance with ISO8573-1:2010: -:7:0* *Tested in accordance with the methods laid out in ISO 12500- 2 using an inlet oil aerosol |
| Maximum Supply Pressure | Polycarbonate bowl: 10 bar (145 psi) Metal bowl: 20 bar (290 psi) |
| Remaining Oil Content | 0,003 mg/m³ max. at +21°C (+69°F) |
| Port Size | G3/8, G1/2, G3/4, 3/8 PTF, 1/2 PTF, 3/4 PTF |
| Flow | 25 dm³/s To maintain stated oil content at port size: G1/2 Operating pressure: 6,3 bar (91 psi) |
| ATEX | Filters F84 are in conformity with Atex 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db |
| Operating Temperature | -20 ... +65°C (-4 ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Note: Install an F84C coalescing filter upstream of the F84V filter for maximum service life. |
| Materials | Body: Die cast aluminium Body covers: ABS Transparent Bowl : Polycarbonate with Polyproplyene Guard. Metal Bowl: Die cast Aluminium Bowl ‘o'- ring: Chloroprene Elastomers: NBR |
