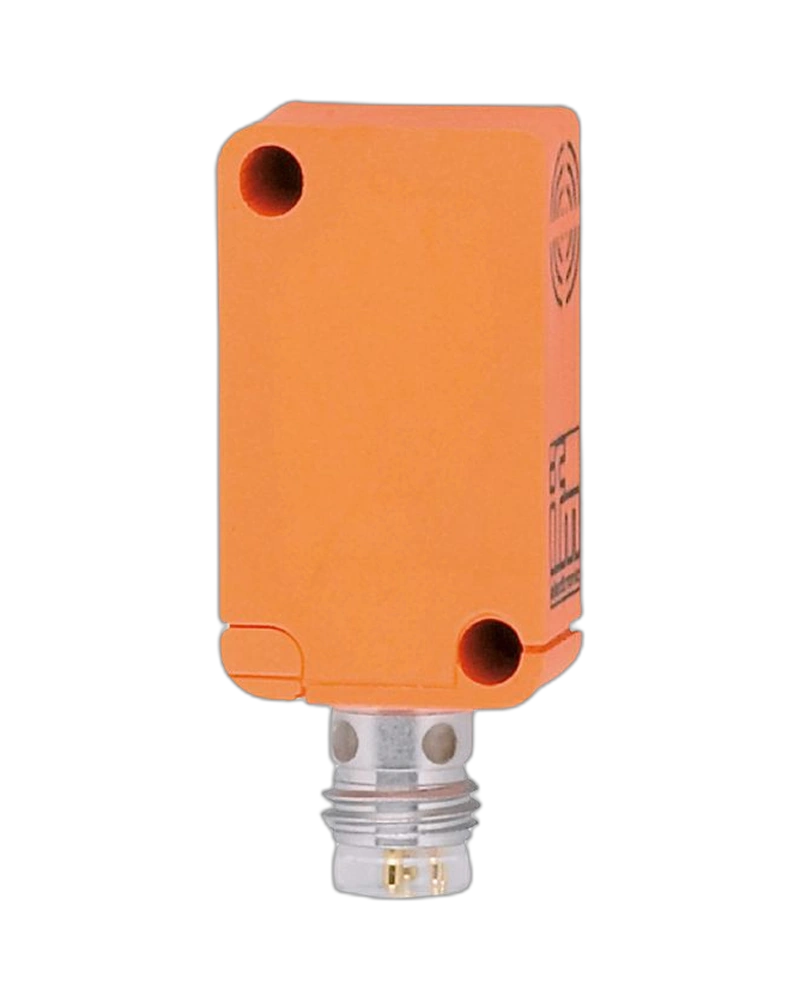

The IFM MS5013 magnetic sensor is designed for reliable contactless position detection in industrial automation and machinery. Its MS-3060-APKG/AS configuration provides a compact sensing solution for monitoring magnetic actuators and moving machine components. The sensor features a rectangular 36.8 x 10.2 x 16 mm housing, IP67 protection and a -25 to 75 °C operating range. Its compact design makes it suitable for machine position monitoring and automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MS5013 is a compact magnetic sensor designed for contactless detection of suitable magnetic targets. Its rectangular housing provides a practical format for machine installation. The sensor is suitable for repeated position monitoring in industrial automation systems. Its compact dimensions allow installation near moving machine components. The AS configuration provides a defined connection arrangement.
The sensor provides reliable magnetic position detection and features a 36.8 x 10.2 x 16 mm rectangular housing. Its PBT orange housing provides a durable industrial construction. IP67 protection supports operation in environments where dust and moisture may be present. The yellow LED provides switching-status indication. The -25 to 75 °C ambient range supports a broad range of industrial applications.
MS5013 is suitable for monitoring moving machine components and magnetic actuators. Its contactless operation helps reduce mechanical wear and supports long-term repeated switching. The compact housing is useful for space-limited machine designs. IP67 protection provides resistance to dust and water ingress. The sensor is suitable for automation, assembly, packaging and material-handling applications.
Magnetic position detection
Contactless sensing
36.8 x 10.2 x 16 mm housing
PBT orange housing
IP67 protection
-25 to 75 °C operation
Yellow switching-status LED
M8 A-coded connection
Compact construction
Industrial automation use
Machine position detection
Actuator monitoring
Packaging equipment
Assembly machinery
Material handling
Conveyor systems
Industrial automation
Production equipment
Machine tools
Position feedback
| Specification | Details |
|---|---|
| Product Code | MS5013 |
| Model | MS-3060-APKG/AS |
| Sensor Type | Magnetic sensor |
| Sensing Principle | Magnetic |
| Hysteresis | 1–10% Sr |
| Ambient Temperature | -25 to 75 °C |
| Protection Rating | IP67 |
| Housing | Rectangular |
| Dimensions | 36.8 x 10.2 x 16 mm |
| Housing Material | PBT, orange |
| Display | Yellow LED switching status |
| Connection | 1 x M8, A-coded |
| Contacts | Gold-plated |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Switching Frequency | Model-specific |
| Sensing Range | Model-specific |
| Magnetic Sensitivity | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Mounting | Model-specific |
| Application | Industrial automation |
| Pack Quantity | 1 piece |
