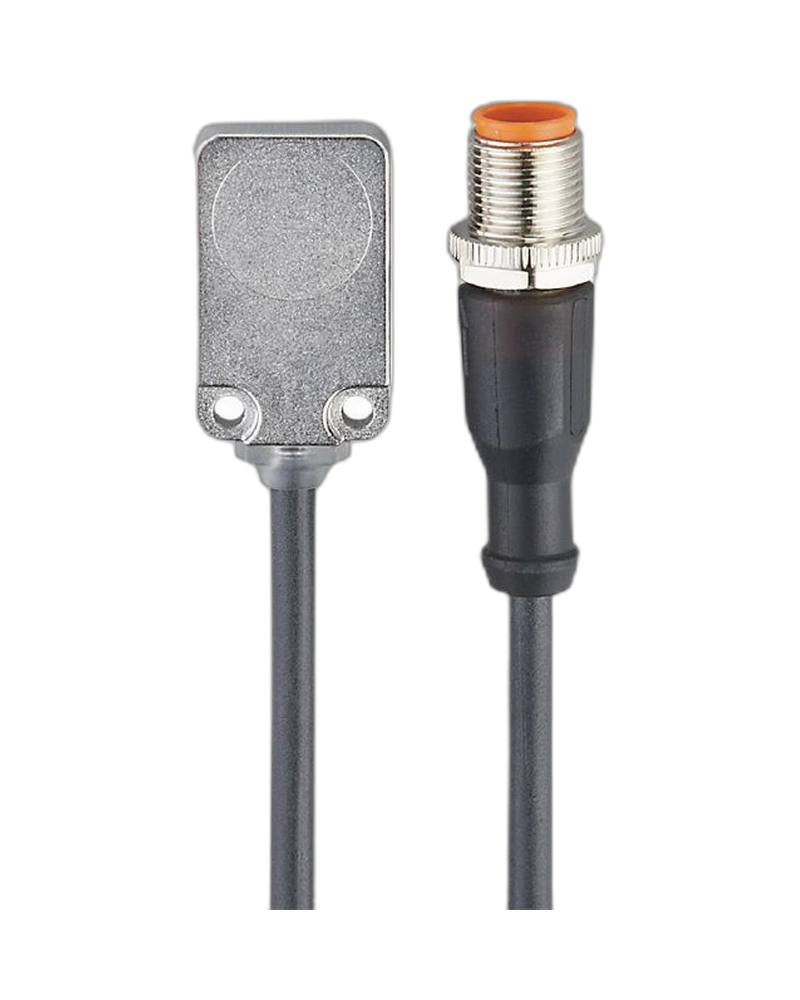

The IFM MQ2005 is a compact magnetic sensor with IO-Link communication and programmable switching functionality for industrial automation. It provides reliable position detection of suitable ferromagnetic targets while allowing flexible PNP/NPN and NO/NC configuration. The 0.3 m cable and M12-style configuration support convenient installation. Its robust metal construction and diagnostic capabilities make it suitable for machine automation, positioning, monitoring and preventive maintenance applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MQ2005 is a magnetic sensor designed for reliable contactless position detection in industrial automation. It provides flexible switching configuration through programmable electrical functions. The IO-Link interface supports parameterisation and access to useful operating information. Its compact construction is suitable for machines with restricted installation space. The 0.3 m cable arrangement provides convenient local connection.
The sensor combines magnetic detection with IO-Link communication for flexible machine integration. PNP/NPN and normally open/normally closed functions can be parameterised where supported. The 0.3 m cable helps simplify installation. Its robust metal active face provides improved resistance to mechanical impact. The sensor is suitable for automated systems requiring reliable position detection and diagnostic capability.
MQ2005 can be used for monitoring the position of machine components and ferromagnetic targets. Its contactless operating principle reduces mechanical wear compared with physical switches. IO-Link can support parameterisation and machine diagnostics. The compact design allows installation close to moving machine components. It is suitable for production, assembly and material-handling systems.
Magnetic position detection
IO-Link communication
PNP/NPN programmable
NO/NC programmable
5 mm sensing range
0.3 m cable
M12 connection configuration
Robust metal construction
Contactless detection
Industrial automation capability
Machine position monitoring
Automation equipment
Assembly machinery
Packaging systems
Material handling
Production lines
Machine tools
Object detection
Position feedback
Industrial control
| Specification | Details |
|---|---|
| Product Code | MQ2005 |
| Model | MQ23005BFRKG/B/AM/IO/0,3M/ZH/US |
| Sensor Type | Magnetic sensor |
| Sensing Range | 5 mm |
| Operating Voltage | 10–30 V DC |
| Electrical Design | PNP/NPN programmable |
| Output Function | NO/NC programmable |
| Communication | IO-Link |
| Housing | Rectangular |
| Active Face | Metal |
| Cable Length | 0.3 m |
| Connection | M12 / model-specific |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Switching Frequency | Model-specific |
| Permanent Current | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Ambient Temperature | Model-specific |
| Hysteresis | Model-specific |
| Repeatability | Model-specific |
| Mounting | Model-specific |
| Protection Rating | Model-specific |
| Application | Industrial automation |
| Pack Quantity | 1 piece |
