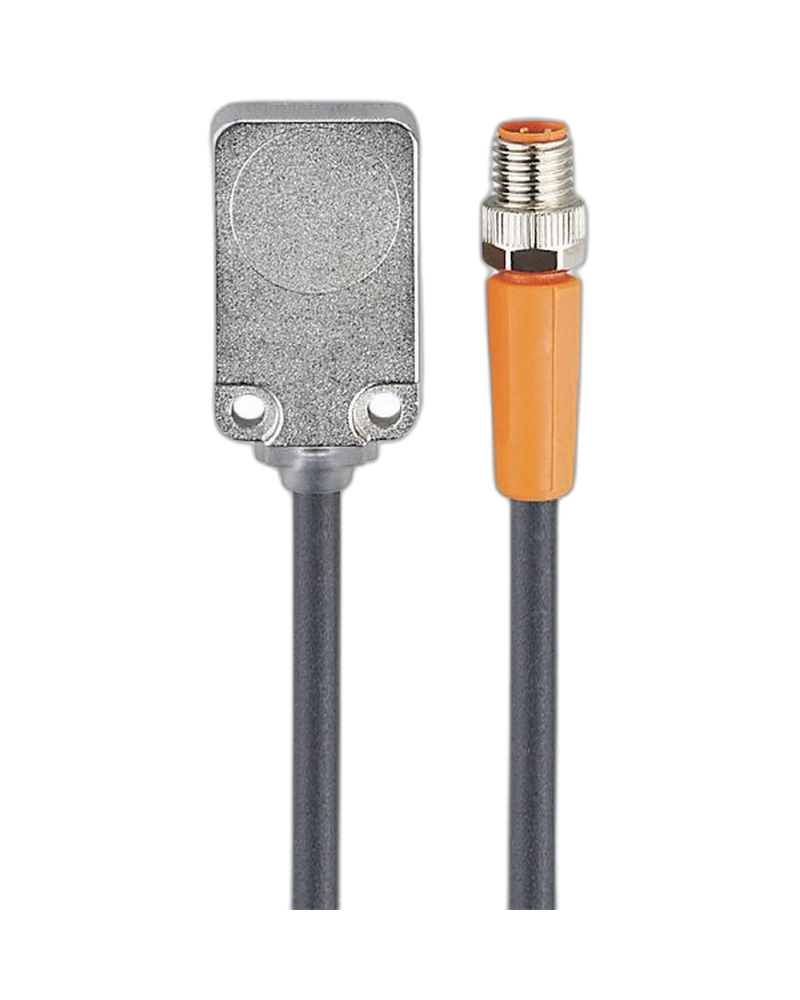

The IFM MQ2001 is a compact magnetic sensor designed for reliable detection of ferromagnetic objects and position changes in industrial automation. Its robust metal construction supports dependable switching in environments where contamination and mechanical stress may occur. The 0.3 m PUR cable and M8 connection configuration provide a practical installation solution. The sensor is suitable for machine monitoring, object detection, positioning and automated production equipment requiring reliable magnetic sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MQ2001 is part of IFM’s robust magnetic sensor family for industrial object and position detection. It uses magnetic sensing to detect suitable ferromagnetic targets without mechanical contact. The full-metal construction provides a durable active face for demanding applications. Its compact design supports installations where available space is limited. The 0.3 m cable configuration offers a short connection arrangement.
The sensor can provide dependable position and object detection in automated machinery. It is suitable for applications where a mechanical switch could experience wear or contamination. Its robust construction supports repeated operation in production environments. The compact format provides installation flexibility around machine mechanisms. The sensor can be used for machine control, sequencing and position feedback.
Magnetic object detection
Compact industrial construction
Full-metal sensing face
0.3 m cable
AS configuration
Contactless detection
Robust impact-resistant design
Reliable switching
Space-saving installation
Automation-ready sensor
Position detection
Metal object detection
Machine automation
Packaging systems
Assembly machinery
Conveyor equipment
Material handling
Production machinery
Machine mechanisms
Industrial control
| Specification | Details |
|---|---|
| Product Code | MQ2001 |
| Model | MQ23005BBPKG/B/AM/0,3M/ZH/AS |
| Sensor Type | Magnetic sensor |
| Operating Principle | Magnetically biased |
| Sensing Range | 5 mm |
| Operating Voltage | 10–30 V DC |
| Output Type | PNP |
| Output Function | Normally open |
| Switching Frequency | 400 Hz |
| Housing | Full metal |
| Active Face | Metal |
| Cable Length | 0.3 m |
| Connection | AS / model-specific connector |
| Protection Rating | IP65 / IP67 |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Ambient Temperature | -25 to 80 °C |
| Target Material | Ferromagnetic |
| Switching Indicator | Yellow LED |
| Operating Indicator | Green LED |
| Mounting | Model-specific |
| Housing Material | Full metal |
| Sensing Principle | Magnetic |
| Application | Industrial automation |
| Pack Quantity | 1 piece |
