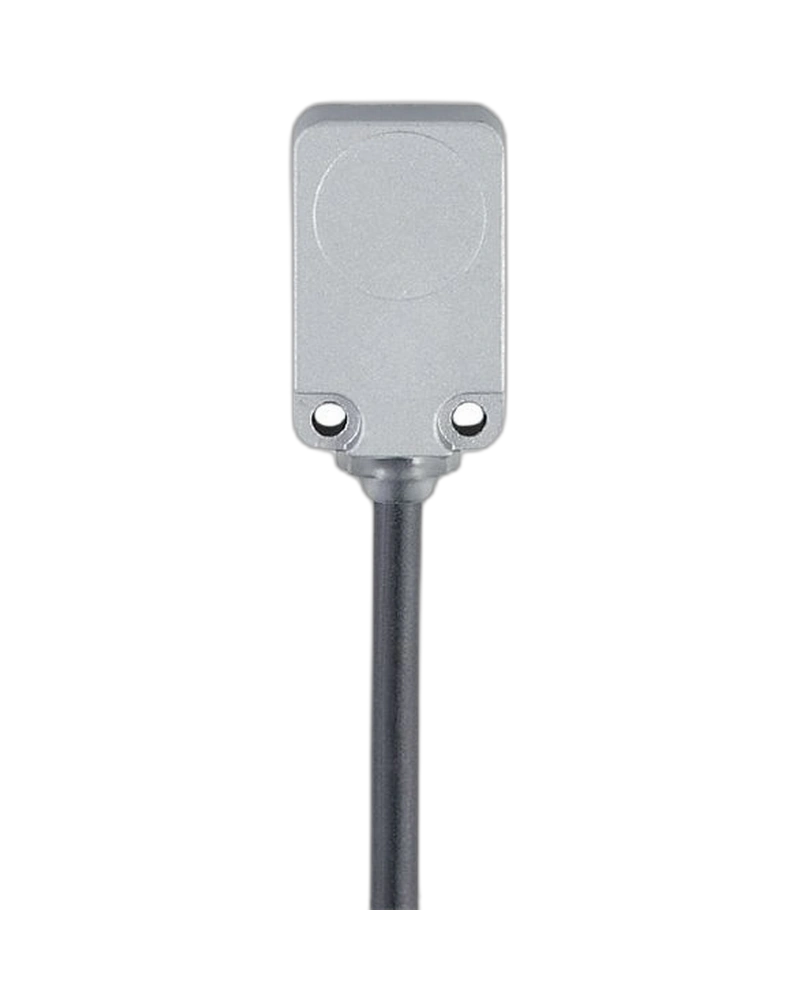

The IFM MQ2000 magnetic sensor combines reliable magnetic position detection with a robust full-metal construction for industrial applications. It can detect suitable ferromagnetic objects and is designed to maintain dependable switching even under heavy soiling. Its metal active face provides high resistance to impact, while the compact housing is suitable for restricted installation spaces. The sensor is well suited to machine automation, position detection and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MQ2000 is a magnetic sensor developed for reliable detection of ferromagnetic objects in industrial automation. Its robust metal active face provides resistance against mechanical impact and demanding operating conditions. The sensor is designed to provide dependable switching even when the sensing area becomes heavily soiled. Its compact construction makes it suitable for machine installations with limited space. The sensor is intended for reliable repeated industrial detection.
The MQ2000 uses a magnetically biased sensing principle and provides a 5 mm flush sensing range. Its full-metal housing improves mechanical robustness and provides a durable sensing face. The sensor operates from 10 to 30 V DC and provides PNP normally open switching. It supports up to 400 Hz switching frequency and has IP65/IP67 protection. A yellow switching-status LED and green operating-status LED provide visual indication.
The sensor is particularly useful where contamination, impact and limited mounting space are concerns. It can detect ferromagnetic objects through suitable non-steel covers, supporting protected installation arrangements. Its full-metal construction helps withstand industrial mechanical conditions. The reliable switching behavior supports continuous machine monitoring. The sensor is suitable for automation equipment requiring compact and robust magnetic detection.
Magnetic sensing principle
5 mm sensing range
PNP output
Normally open function
10–30 V DC operation
400 Hz switching frequency
Full-metal housing
IP65/IP67 protection
Yellow switching LED
Green operating LED
Metal object detection
Machine position monitoring
Automation equipment
Conveyor systems
Material handling
Packaging machinery
Assembly machines
Production lines
Machine tool applications
Industrial object detection
| Specification | Details |
|---|---|
| Product Code | MQ2000 |
| Model | MQ23005BBPKG/B/AM/ZH |
| Sensor Type | Magnetic sensor |
| Operating Principle | Magnetically biased |
| Sensing Range | 5 mm, flush |
| Operating Voltage | 10–30 V DC |
| Output Type | PNP |
| Output Function | Normally open |
| Switching Frequency | 400 Hz |
| Housing | Full metal |
| Active Face | Metal |
| Protection Rating | IP65 / IP67 |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Ambient Temperature | -25 to 80 °C |
| Switching Status | Yellow LED |
| Operating Status | Green LED |
| Target Material | Ferromagnetic objects |
| Correction Factor | Mild steel St37 = 1 |
| Mounting | Flush |
| Communication | Standard sensor output |
| Connection | Model-specific |
| Housing Material | Full metal |
| Application | Industrial automation |
| Pack Quantity | 1 piece |
