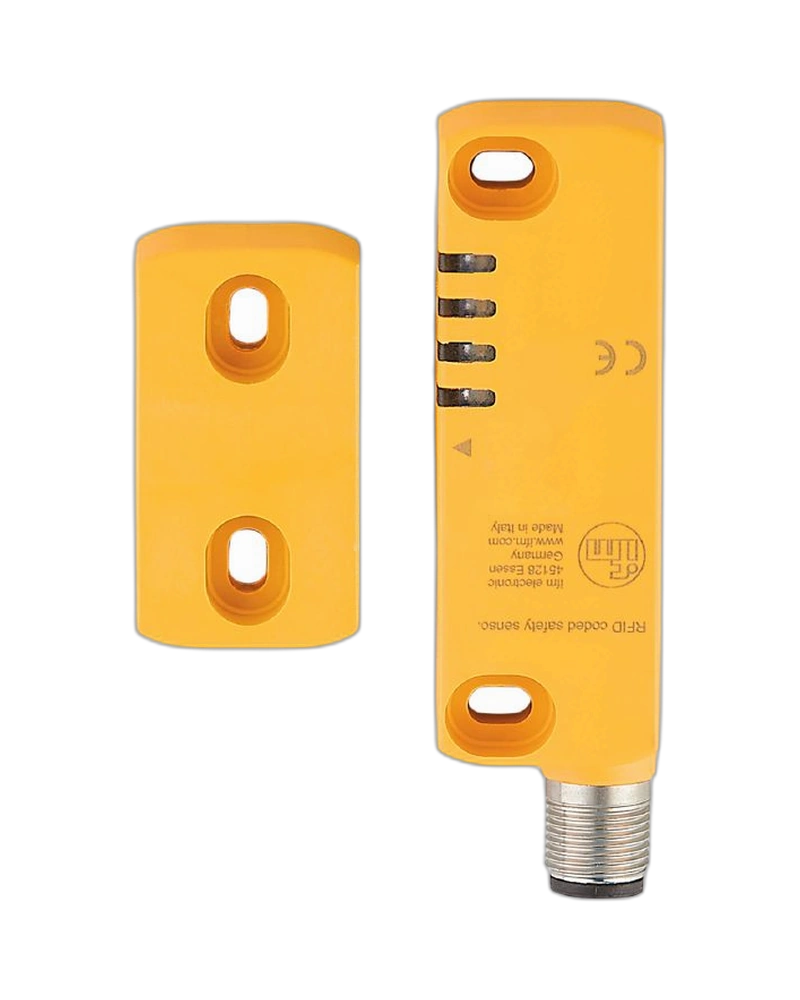

The IFM MN708S RFID-coded safety sensor is designed for dependable non-contact monitoring of industrial machine guards and safety access points. It combines coded RFID actuator recognition with safety-related outputs for integration into machine safety systems. The sensor is suitable for automated machinery, robotic cells, packaging equipment and production lines requiring reliable safety guard monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN708S uses RFID-coded technology to detect and identify the associated safety actuator. This non-contact method supports repeated guard operation without mechanical switching wear. The sensor is designed for connection to suitable safety-related control systems. Its industrial construction makes it suitable for machine guarding applications.
The sensor provides two OSSD safety outputs and one signal output. IFM specifies a 12 mm sensing range with the defined actuator and a 16 mm maximum range for the family. It also supports Category 4 PL e and SIL 3 safety requirements. The sensor has IP65 and IP67 protection.
MN708S can monitor safety doors, protective machine guards, access covers and enclosed automation cells. It is suitable for applications where opening a guard needs to generate a safety response. Typical applications include packaging, robotics, production machinery and automated material handling. It can be integrated with appropriate safety controllers.
MN708S provides high-performance RFID-coded safety detection in a compact industrial design. Its OSSD safety outputs support integration with safety logic, while coded actuator recognition improves guard monitoring reliability. It is suitable for demanding machine-safety applications requiring dependable non-contact detection.
RFID-coded safety sensor
Non-contact operation
Two OSSD safety outputs
One PNP signal output
12 mm sensing range with defined actuator
16 mm maximum range
IP65/IP67 protection
Category 4 PL e
SIL 3
20-year mission time
Machine safety doors
Protective guards
Robotic cells
Packaging machinery
Production machines
Machine tools
Access covers
Automated systems
Safety enclosures
Factory automation
| Specification | Details |
|---|---|
| Product Code | MN708S |
| Model | MN38010-BPKG/L/CB/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Sensor Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 PNP |
| Sensing Range | 12 mm with defined actuator |
| Maximum Range | 16 mm |
| Safety Response Time | 160 ms |
| Start-up Delay | 1500 ms |
| Operating Frequency | 0.125 MHz |
| Protection Rating | IP65; IP67 |
| Ambient Temperature | -25...70 °C |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity | SIL 3 |
| Mission Time | Up to 20 years |
| Housing | Rectangular |
| Mounting | Non-flush |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
| EMC | IEC 60947-5-3 |
| Application | Machine safety |
| Product Family | MN700S |
