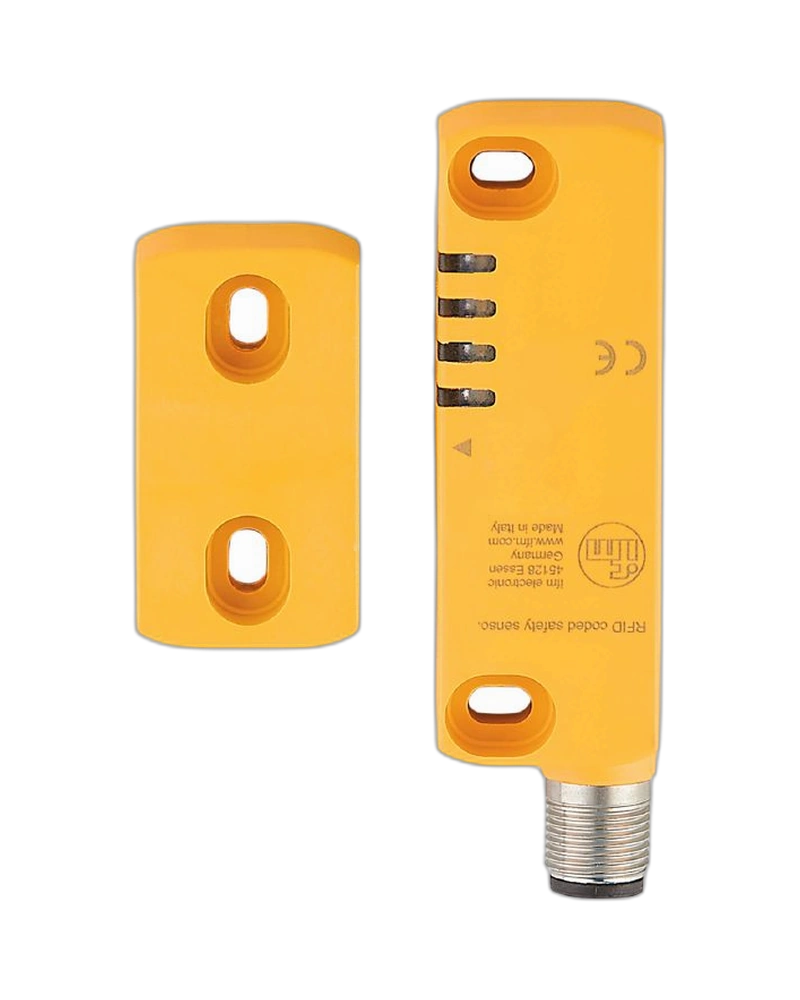

The IFM MN707S RFID-coded safety sensor provides non-contact monitoring of machine guards and protective access points. It is designed to identify its associated coded actuator and deliver safety-related output signals for machine safety control. The sensor is suitable for automated machinery, packaging lines, robotic systems and industrial production equipment requiring reliable guard-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN707S is designed for RFID-coded safety detection in industrial machine guarding. It detects the coded actuator without requiring mechanical contact, supporting long-term repetitive operation. The sensor can be integrated with appropriate safety logic and control systems. Its industrial construction makes it suitable for machine-level safety applications.
The MN700S family provides OSSD safety outputs and a separate signal output. Its safety architecture is designed for Category 4 PL e and SIL 3 applications. RFID coding provides reliable actuator identification within the defined sensing area. This supports dependable machine-guard monitoring.
MN707S can monitor safety doors, protective guards and machine access points. It can be installed on automated production machinery where opening the protective device must be detected. Suitable applications include packaging equipment, robotics, machine tools and material-handling systems. It can work with compatible safety controllers.
MN707S provides a compact, coded and non-contact safety-monitoring solution. It combines RFID actuator recognition with safety-related outputs for industrial machine protection. Its design supports repeated guard operation and reliable integration into safety architectures.
RFID-coded sensing
Non-contact safety detection
OSSD outputs
PNP design
Coded actuator recognition
Industrial guard monitoring
High safety performance
Compact sensor construction
Safety-controller compatibility
Suitable for automated machinery
Machine safety doors
Protective guards
Robotic cells
Packaging equipment
Production machinery
Machine tools
Access covers
Industrial automation
Safety enclosures
Automated systems
| Specification | Details |
|---|---|
| Product Code | MN707S |
| Model | MN38010-BPKG/L/UC/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 |
| Detection | Non-contact |
| Sensing Range | Family: 12 mm with defined actuator |
| Maximum Range | Family: 16 mm |
| Protection | IP65; IP67 family |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity | SIL 3 |
| Mission Time | Up to 20 years |
| Housing | Rectangular |
| Mounting | Industrial |
| Actuator | RFID-coded |
| Output Type | OSSD |
| Temperature | Family: -25...70 °C |
| Connection | Model dependent |
| Response Time | Model dependent |
| Application | Machine safety |
| Product Family | MN700S |
