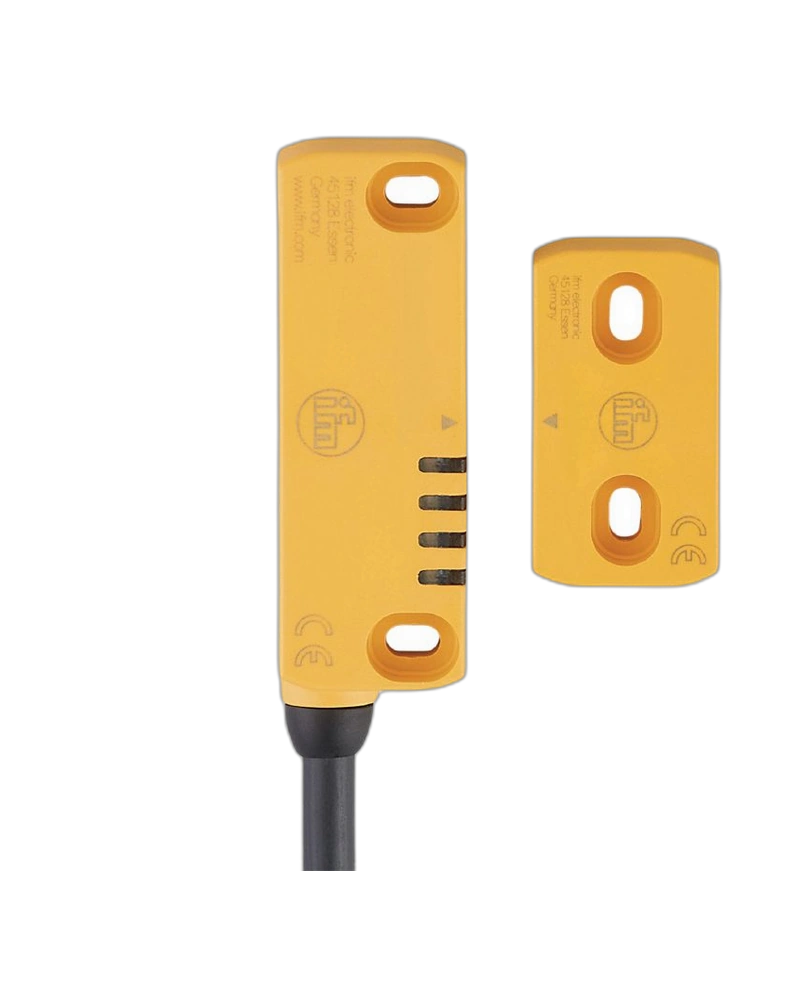

The IFM MN705S RFID-coded safety sensor is designed for reliable monitoring of machine guards and protective access points. Its non-contact RFID-coded sensing principle identifies the associated actuator and provides safety-related output signals for machine safety systems. The sensor is suitable for production machinery, packaging equipment, robotic cells and automated industrial equipment requiring dependable safety guard monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN705S is an RFID-coded safety sensor for machine guarding applications. It provides non-contact detection and is designed to work with a coded actuator. This approach supports reliable guard monitoring while avoiding mechanical switching wear. The sensor can be integrated with appropriate safety controllers and safety logic devices.
The MN700S family uses two OSSD safety outputs together with a signal output. It supports high safety performance, including Category 4 PL e and SIL 3. The sensing system is designed for reliable actuator detection within the defined sensing zone. Industrial protection supports use in machine environments.
MN705S can monitor protective doors, safety guards and access covers. It can be installed on automated machines where the opening of a guard must be detected by a safety system. Typical applications include packaging machines, robotic systems, production lines and machine tools. The sensor supports reliable safety feedback for machine control.
MN705S combines RFID-coded actuator recognition with safety-related switching. Its non-contact design supports repeated machine-guard operation, while its safety outputs allow integration with suitable safety logic. It is a practical solution for modern industrial machine-safety systems.
RFID-coded technology
Non-contact sensing
Two OSSD safety outputs
One signal output
PNP electrical design
Industrial protection
Safety guard monitoring
Coded actuator recognition
High safety classification
Suitable for machine safety
Safety doors
Machine guarding
Robotic cells
Packaging machinery
Production lines
Machine tools
Access covers
Industrial automation
Safety enclosures
Automated equipment
| Specification | Details |
|---|---|
| Product Code | MN705S |
| Model | MN38010-BPKG/CB/-H |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Sensor Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 |
| Detection | Non-contact |
| Sensing Range | Family: 12 mm with defined actuator |
| Maximum Range | Family: 16 mm |
| Protection Rating | IP65; IP67 family |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity Level | SIL 3 |
| Mission Time | Up to 20 years |
| Housing | Rectangular |
| Mounting | Industrial |
| Actuator | RFID-coded |
| Output Technology | OSSD |
| Operating Temperature | Family: -25...70 °C |
| Connection | Model dependent |
| Response Time | Model dependent |
| Application | Machine safety |
| Product Family | MN700S series |
