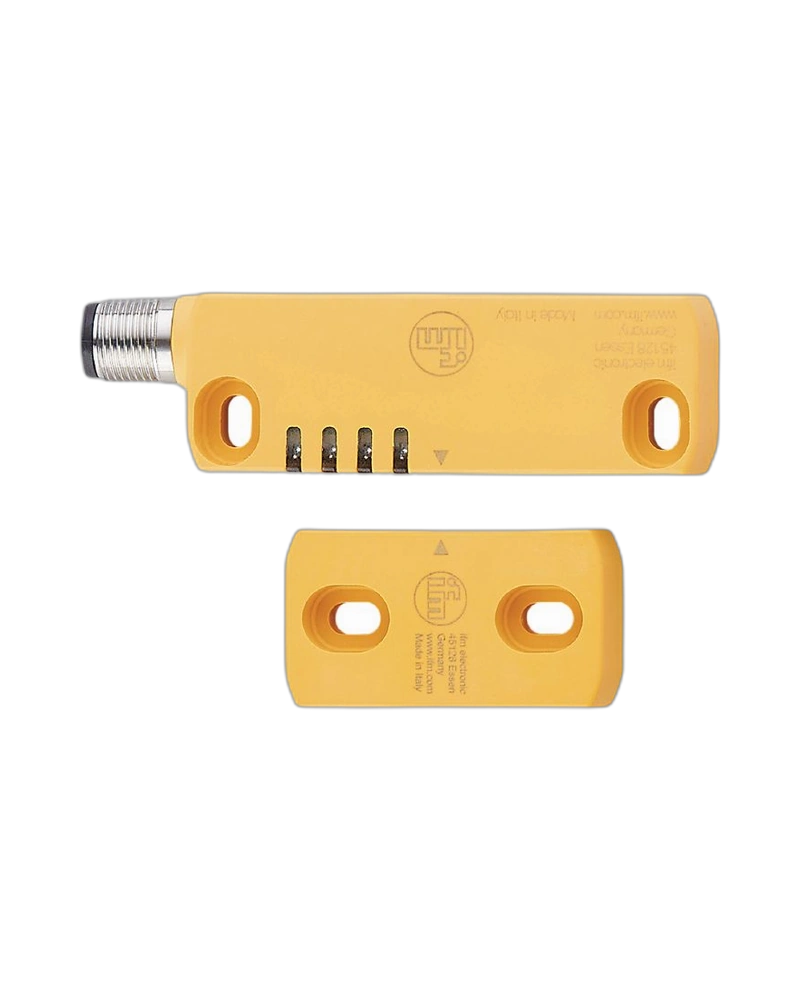

The IFM MN702S RFID-coded safety sensor provides non-contact safety monitoring for industrial machine guards and access points. It is designed to detect the associated coded actuator and provide safety-related output signals to machine safety systems. The sensor is suitable for automated machinery, protective doors and safety guarding applications requiring dependable position monitoring and high safety performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN702S belongs to IFM's RFID-coded safety sensor family and is designed for non-contact monitoring of protective devices. RFID coding supports reliable actuator recognition and helps improve protection against unintended bypassing. The sensor can be connected to suitable safety logic systems for machine monitoring. Its compact industrial housing supports convenient machine installation.
The sensor provides safety-related OSSD outputs and a separate signal output. The MN700S family is designed for high safety performance, including Category 4 PL e and SIL 3 compliance. The sensing system operates with a defined actuator and provides reliable guard-position detection.
MN702S can monitor safety doors, machine guards and protective access covers. It is suitable for automated machinery where opening a guard needs to initiate a safety response. Typical installations include packaging systems, robotic cells, production machinery and machine tools. The sensor supports integration into safety-related control architectures.
MN702S offers RFID-coded non-contact safety detection in a compact industrial sensor. Its safety outputs and high safety classification make it suitable for demanding machine-safety applications. The sensor can help automate guard monitoring while supporting reliable safety-system integration.
RFID-coded safety sensing
Non-contact detection
2 OSSD safety outputs
1 signal output
PNP technology
Guard monitoring
Industrial protection
High safety classification
Compact construction
Suitable for safety controllers
Machine safety doors
Protective guards
Robotic systems
Packaging machines
Production machinery
Machine tools
Access panels
Automated equipment
Safety enclosures
Factory automation
| Specification | Details |
|---|---|
| Product Code | MN702S |
| Model | MN38010-BPKG/CB/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 |
| Sensing Range | 12 mm with defined actuator |
| Maximum Range | 16 mm |
| Protection Rating | IP65; IP67 |
| Ambient Temperature | -25...70 °C |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity Level | SIL 3 |
| Mission Time | Up to 20 years |
| Detection | Non-contact |
| Housing | Rectangular |
| Mounting | Non-flush family mounting |
| Actuator | RFID-coded |
| Output Technology | OSSD |
| Response Time | Model dependent |
| Connection | Model dependent |
| Application | Machine safety |
| Product Family | MN700S series |
