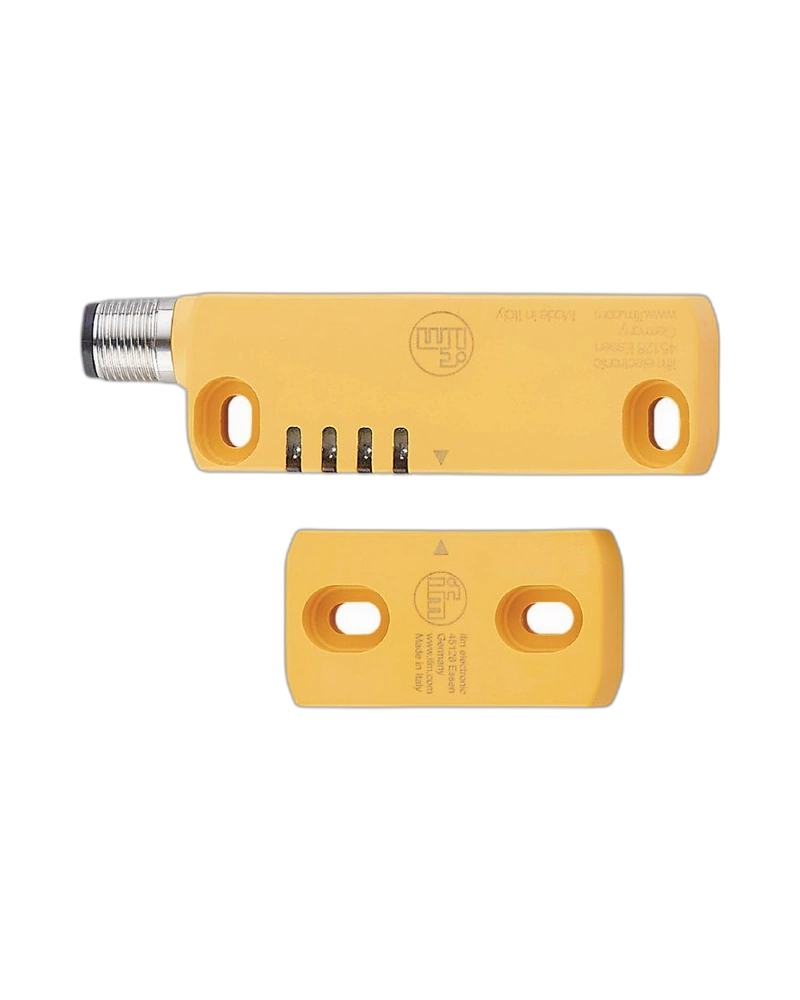

The IFM MN701S RFID-coded safety sensor is designed for monitoring safety guards, machine doors and protective access points. Its coded RFID sensing technology provides dependable actuator recognition for safety-related machine monitoring. The sensor can be integrated into safety control systems used in automated production machinery, packaging equipment, robotic cells and other industrial applications where reliable guard detection is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN701S uses RFID-coded sensing to identify the associated safety actuator. This helps provide dependable monitoring of machine guards and access points. The sensor family is designed with safety-related outputs for connection to appropriate safety logic. Its compact industrial housing allows installation near machine guarding structures.
The sensor provides non-contact safety detection with OSSD safety outputs. RFID coding helps distinguish the intended actuator and supports reliable guard monitoring. The MN700S family provides a 12 mm sensing range with the defined actuator and safety performance up to Category 4 PL e and SIL 3.
MN701S is suitable for safety doors, protective guards, access covers and machine enclosures. It can be used on automated production machines where the machine must stop or enter a safe state when a guard is opened. The sensor can work with safety controllers and suitable safety-related logic devices. Its industrial design supports factory automation applications.
MN701S combines coded RFID sensing with safety-related switching for reliable machine guarding. It is suitable for industrial safety systems requiring non-contact guard monitoring. Its robust construction and safety-oriented output architecture make it appropriate for automated machinery and production environments.
RFID-coded safety detection
Non-contact safety monitoring
OSSD safety outputs
PNP electrical design
Guard-position monitoring
Industrial housing
High safety performance
Suitable for safety controllers
Reliable actuator recognition
Machine-safety application
Safety doors
Machine guards
Protective covers
Robotic cells
Packaging machinery
Production machines
Automated equipment
Machine enclosures
Factory safety systems
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MN701S |
| Model | MN38010-BPKG/UC/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Technology | RFID-coded |
| Safety Outputs | 2 OSSD |
| Signal Output | 1 PNP |
| Electrical Design | PNP |
| Detection Type | Non-contact |
| Sensing Range | Family: 12 mm with defined actuator |
| Maximum Range | Family: 16 mm |
| Protection | IP65; IP67 |
| Ambient Temperature | -25...70 °C |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity | SIL 3 |
| Mission Time | Up to 20 years |
| Mounting | Industrial guard mounting |
| Housing | Rectangular |
| Output Technology | OSSD |
| Actuator | Coded RFID actuator |
| Connection | Model dependent |
| Response Time | Model dependent |
| Application | Machine safety |
| Product Family | MN700S series |
