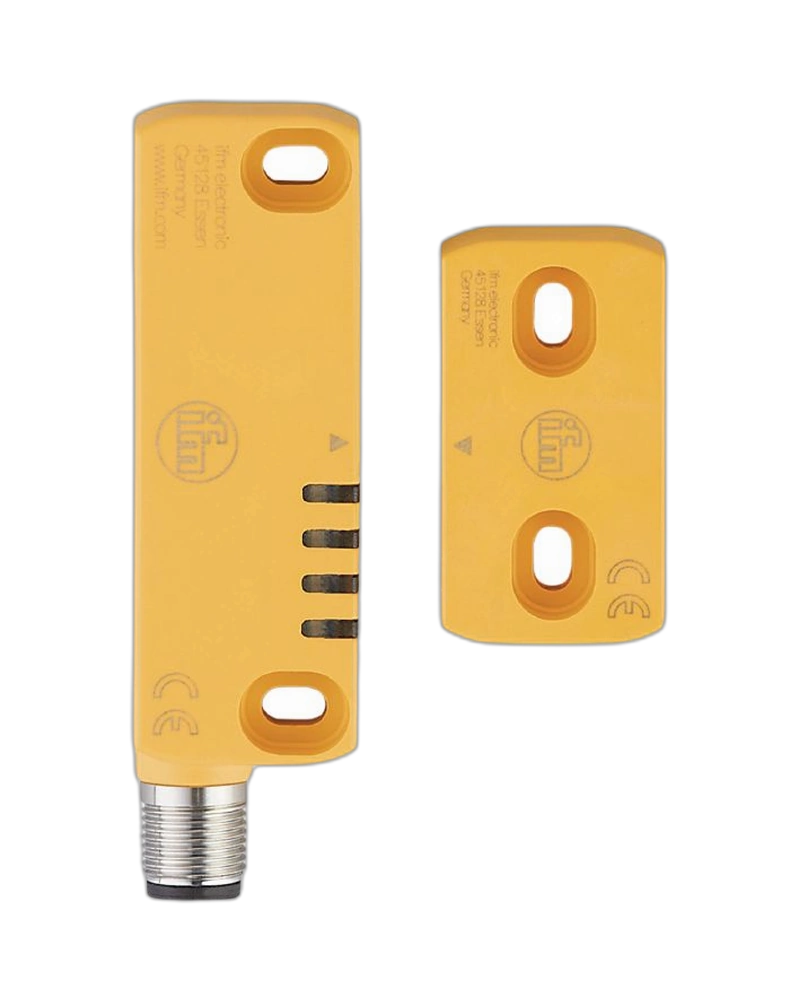

The IFM MN700S RFID-coded safety sensor is designed for reliable monitoring of safety guards and access points in industrial machinery. Its RFID-coded technology provides reliable actuator identification, while safety-related outputs support connection to safety control systems. The sensor is suitable for machine doors, protective guards and automated equipment where reliable guard-position monitoring is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN700S is an RFID-coded safety sensor designed for safety-related monitoring of machine guards. It uses a coded actuator system to distinguish the intended actuator and help prevent simple bypassing. The sensor provides two safety outputs and one signal output. IFM specifies compliance with ISO 13849-1 Category 4, PL e and IEC 62061 SIL 3 for the family.
The sensor provides a 12 mm sensing range with the defined actuator and a maximum nominal range of 16 mm. Its OSSD safety outputs are designed for connection to safety-related logic units. The device also provides a signal output for connection to control systems. Its IP65 and IP67 protection supports industrial machine environments.
MN700S is suitable for monitoring machine doors, safety guards, access panels and protective covers. It can be integrated into safety circuits together with appropriate safety logic and control equipment. The RFID-coded principle helps support reliable guard monitoring in automated machinery. It is suitable for manufacturing, packaging and machine-tool applications.
MN700S provides RFID-based safety monitoring with high safety performance and robust industrial construction. Its coded sensing technology, OSSD outputs and safety classification make it suitable for demanding machine-safety applications. The compact sensor can be integrated into machine guarding systems where dependable safety feedback is required.
RFID-coded safety technology
12 mm sensing range with defined actuator
16 mm nominal sensing range
2 OSSD safety outputs
1 signal output
PNP electrical design
IP65 and IP67 protection
Category 4 / PL e
SIL 3 compliance
20-year mission-time specification
Machine guard monitoring
Safety door monitoring
Protective cover monitoring
Packaging machinery
Automated production equipment
Machine tools
Robotic cells
Access-point monitoring
Factory safety systems
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MN700S |
| Model | MN35010-BPKG/CD/US |
| Brand | IFM |
| Product Type | RFID-coded safety sensor |
| Sensor Technology | RFID |
| Electrical Design | PNP |
| Safety Outputs | 2 OSSD |
| Signal Outputs | 1 PNP signal output |
| Sensing Range | 12 mm with defined actuator |
| Maximum Range | 16 mm |
| Response Time to Safety Request | 160 ms |
| Start-up Delay | 1500 ms |
| Operating Frequency | 0.125 MHz |
| Protection Rating | IP65; IP67 |
| Ambient Temperature | -25...70 °C |
| Safety Category | Category 4 |
| Performance Level | PL e |
| Safety Integrity Level | SIL 3 |
| Mission Time | Up to 20 years |
| Housing | Rectangular |
| Mounting | Non-flush mountable |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
| EMC | IEC 60947-5-3 |
| Application | Machine safety |
| Coding Technology | RFID-coded |
