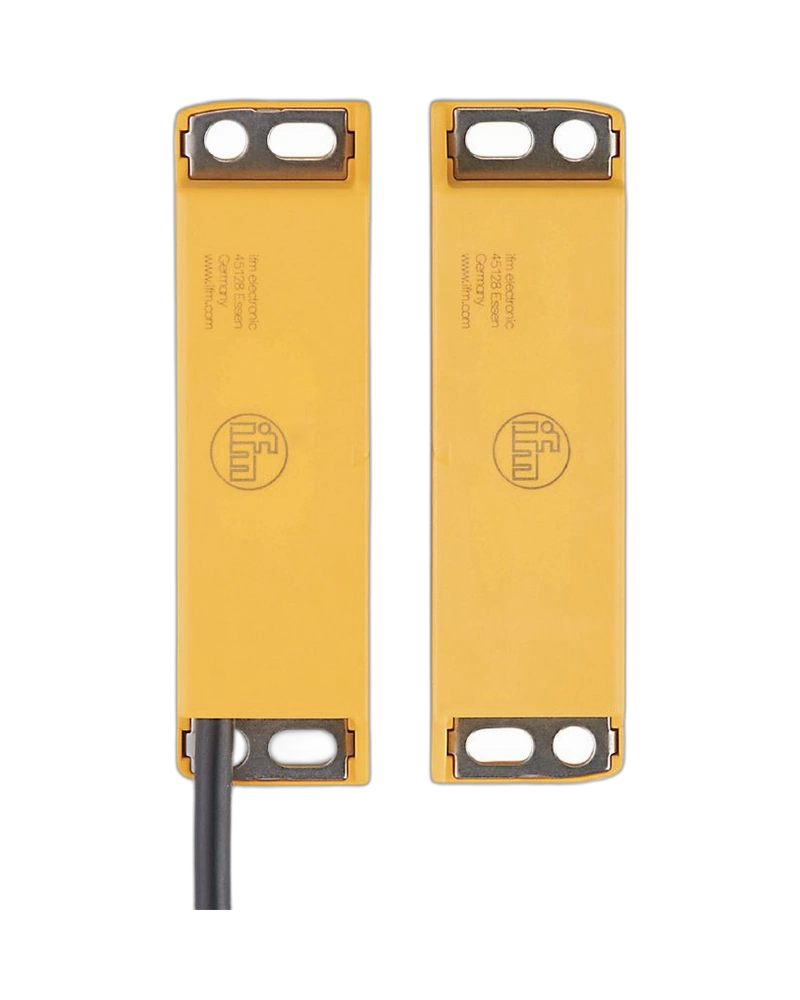

The IFM MN508S is a magnetically coded safety sensor designed for reliable position monitoring in industrial machinery. It provides an 8 mm sensing range and combines two normally open outputs with one normally closed output, all potential-free. The 24 V DC sensor uses a rectangular 88 x 13.1 x 25 mm housing and coded actuator principle. This configuration provides flexible switching options for machine guards, safety doors and protective access applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN508S is designed for safety-related magnetic position detection using a coded actuator. Its three switching contacts provide a flexible output arrangement for suitable machine safety circuits. The 8 mm sensing range supports practical installation around protective guards and access doors. Its rectangular housing provides a compact mounting format. The sensor is intended for continuous industrial safety monitoring.
The MN508S provides two normally open and one normally closed potential-free outputs. It operates from 24 V DC and has an 8 mm sensing range with a defined actuator. Its 88 x 13.1 x 25 mm rectangular housing provides practical installation. Protection class III supports appropriate low-voltage safety systems. The additional normally closed output expands circuit configuration possibilities.
The sensor is suitable for machine guarding applications where multiple switching states may be useful. It can monitor protective doors, covers and access points in automated machinery. The coded actuator principle supports reliable intended-object detection. Its robust rectangular construction provides stable mounting. It is suitable for integration with compatible safety control and evaluation equipment.
Magnetically coded sensor
8 mm sensing range
Two normally open outputs
One normally closed output
Potential-free outputs
24 V DC operation
Protection class III
Rectangular 88 x 13.1 x 25 mm housing
Defined coded actuator
Safety-related operation
Safety door monitoring
Machine guard monitoring
Protective cover detection
Access protection
Packaging machinery
Assembly equipment
Industrial automation
Production lines
Machine tools
Safety control systems
| Specification | Details |
|---|---|
| Product Code | MN508S |
| Model | MN44008-AKOA/-H/US/8P |
| Sensor Type | Magnetically coded sensor |
| Output Function | 2 x NO + 1 x NC, potential-free |
| Sensing Range | 8 mm with defined actuator |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Internal Resistance | 10 Ω, 1 W |
| Permanent Current | 50 mA |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Maximum Capacitive Load | Model-specific |
| Housing | Rectangular |
| Dimensions | 88 x 13.1 x 25 mm |
| Mounting | Non-flush |
| Ambient Temperature | Model-specific |
| Protection Rating | Model-specific |
| Housing Material | Model-specific |
| Connection | -H/US/8P configuration |
| Actuator | Coded actuator |
| Safety Application | Yes |
| Output Contacts | 3 potential-free contacts |
| Protection Technology | Model-specific |
| Pack Quantity | 1 piece |
