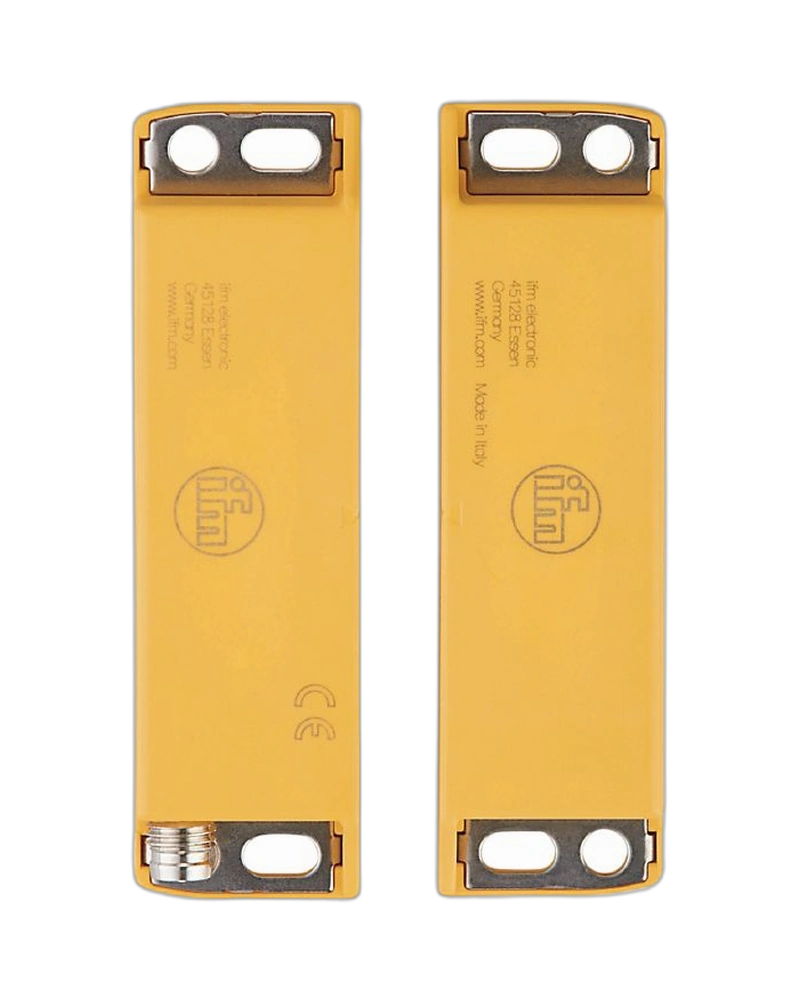

The IFM MN502S magnetically coded sensor provides reliable safety-related position detection for industrial machinery. Its 8 mm sensing range and coded actuator principle support dependable monitoring of safety doors, machine guards and protective covers. The sensor uses two normally open potential-free outputs and operates from 24 V DC. Its rectangular construction is suitable for compact machine installations where reliable magnetic safety detection and straightforward integration are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN502S is designed for safety-related monitoring of movable machine components using coded magnetic detection. It detects the defined actuator position and provides switching outputs for suitable safety control equipment. The 8 mm sensing range offers practical installation flexibility. Its rectangular construction supports mounting on machine guards and protective structures. The AS connection configuration provides a defined connection arrangement for compatible systems.
The sensor combines an 8 mm sensing range with two normally open potential-free outputs. It operates at 24 V DC and uses protection class III. Its 88 x 13.1 x 25 mm housing provides a stable and space-efficient mounting format. A 150 Hz switching frequency and 10 ms response time support responsive detection. The coded actuator principle helps provide reliable safety-position monitoring.
The MN502S is suited to automated machinery where access protection and guard monitoring are required. It can monitor the correct position of protective doors and covers during machine operation. Its robust industrial design supports repeated switching cycles. IP67 protection provides resistance against common industrial contamination and moisture. The sensor can be integrated with appropriate safety evaluation equipment.
Magnetically coded safety sensing
8 mm sensing range
Two normally open outputs
Potential-free outputs
24 V DC operation
150 Hz switching frequency
10 ms response time
Rectangular housing
Coded actuator principle
AS connection configuration
Safety door monitoring
Machine guard monitoring
Protective cover detection
Industrial automation
Packaging equipment
Assembly machinery
Production systems
Material handling equipment
Machine tools
Access protection
| Specification | Details |
|---|---|
| Product Code | MN502S |
| Model | MN44008-AKOG/AS |
| Sensor Type | Magnetically coded sensor |
| Output Function | 2 x normally open, potential-free |
| Sensing Range | 8 mm with defined actuator |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Switching Frequency | 150 Hz |
| Response Time | 10 ms |
| Maximum Fall Time | 0.1 ms |
| Maximum Make Time incl. Bounce | 0.6 ms |
| Internal Resistance | 10 Ω, 1 W |
| Permanent Current | 50 mA |
| Maximum Capacitive Load | 20 nF |
| Housing | Rectangular |
| Dimensions | 88 x 13.1 x 25 mm |
| Mounting | Non-flush |
| Ambient Temperature | -25 to 80 °C |
| Protection Rating | IP67 |
| Safety Function | Coded position detection |
| Actuator | Defined coded actuator |
| Connection | AS |
| Pack Quantity | 1 piece |
