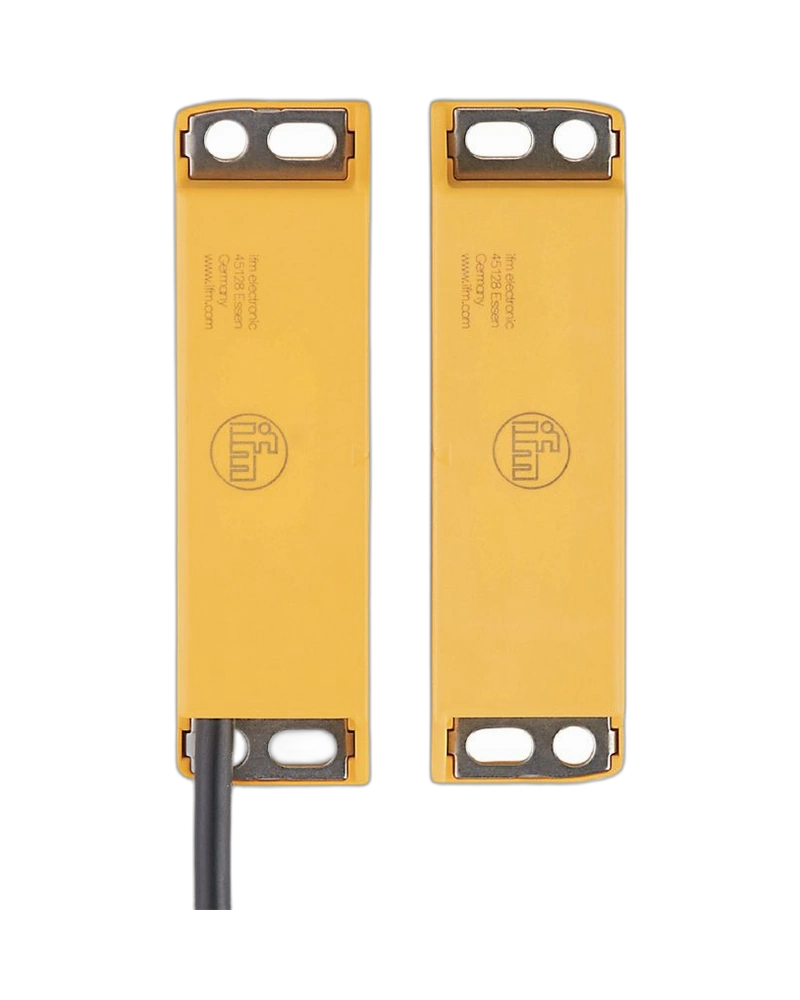

The IFM MN501S is a magnetically coded safety sensor designed for dependable monitoring of machine guards, safety doors and protective devices. It provides an 8 mm sensing range with a defined actuator, two normally open potential-free outputs and 24 V DC operation. The 6 m cable configuration offers additional installation reach for industrial machinery, while the compact rectangular housing and robust protection support reliable use in demanding automation and safety applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN501S uses coded magnetic detection to monitor the position of protective machine components. It is designed to switch when the supplied or defined actuator enters the appropriate sensing area. The 8 mm sensing range provides useful mounting tolerance for machine guarding applications. Its 6 m cable configuration is convenient for installations where the sensor is located farther from the control equipment. The sensor supports continuous industrial operation.
The MN501S provides two normally open potential-free outputs and an 8 mm sensing range. It operates from 24 V DC and uses protection class III. The 88 x 13.1 x 25 mm rectangular housing provides a compact but robust mounting solution. A switching frequency of 150 Hz and response time of 10 ms support fast position monitoring. The extended 6 m cable helps simplify machine wiring.
The sensor is designed for repeated safety monitoring of guards, doors and protective covers. Its coded magnetic operating principle helps ensure that the intended actuator is detected reliably. The industrial housing supports operation in automated production environments. IP67 protection provides resistance to dust and water ingress. The 6 m cable can reduce the need for additional extension wiring in larger machine installations.
Magnetically coded sensor
8 mm sensing range
Two normally open outputs
Potential-free switching
24 V DC supply
6 m cable
150 Hz switching frequency
10 ms response time
Rectangular housing
IP67 protection
Safety door monitoring
Machine guard detection
Protective cover monitoring
Industrial automation
Packaging machinery
Assembly machines
Material handling systems
Machine tool protection
Production line safety
Access protection systems
| Specification | Details |
|---|---|
| Product Code | MN501S |
| Model | MN44008-AKOG/6m/-H |
| Sensor Type | Magnetically coded sensor |
| Output Function | 2 x normally open, potential-free |
| Sensing Range | 8 mm with defined actuator |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Switching Frequency | 150 Hz |
| Response Time | 10 ms |
| Maximum Fall Time | 0.1 ms |
| Maximum Make Time incl. Bounce | 0.6 ms |
| Internal Resistance | 10 Ω, 1 W |
| Permanent Current | 50 mA |
| Maximum Capacitive Load | 20 nF |
| Cable Length | 6 m |
| Housing | Rectangular |
| Dimensions | 88 x 13.1 x 25 mm |
| Mounting | Non-flush |
| Ambient Temperature | -25 to 80 °C |
| Protection Rating | IP67 |
| Application | Safety-related |
| Actuator | Defined coded actuator |
| Pack Quantity | 1 piece |
