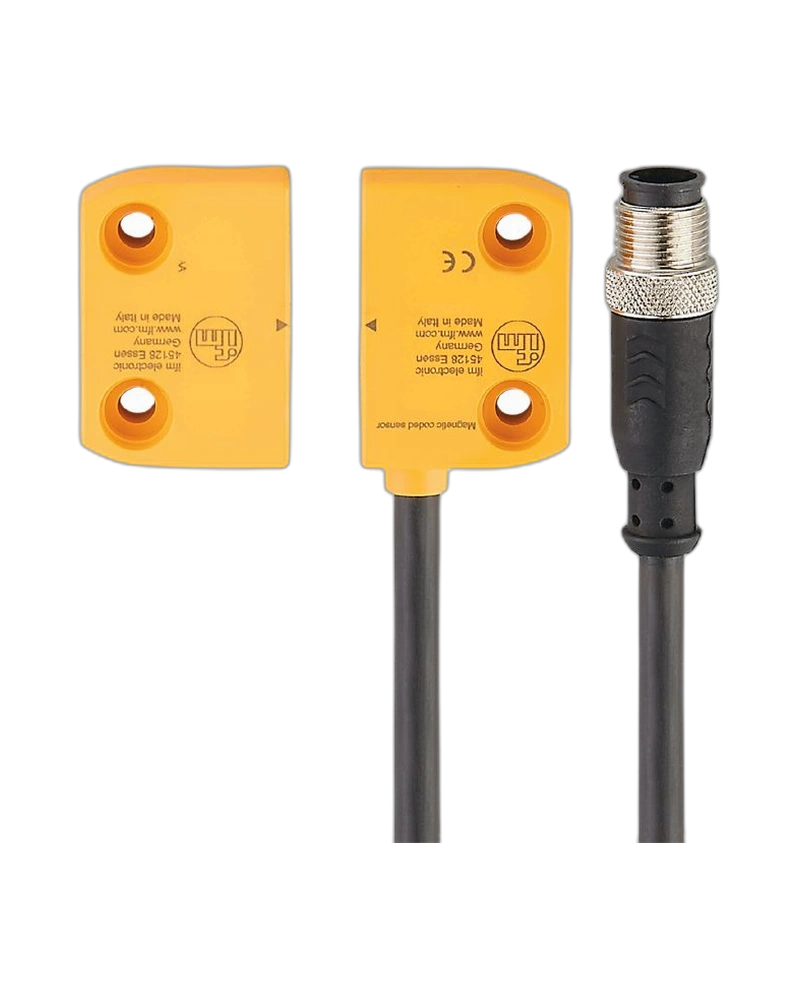

The IFM MN207S is a compact magnetically coded safety sensor designed for reliable position detection in industrial machine safety applications. It provides a 5 mm sensing range with a defined coded actuator and uses two normally open potential-free outputs. The 0.1 m cable and US configuration support flexible machine installation. Its robust construction, fast response and industrial protection make it suitable for safety doors, guards and protective access points.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN207S is designed to detect coded magnetic actuators used with machine guards and protective doors. Its defined sensing principle helps provide dependable switching and safety-related position monitoring. The compact rectangular housing is suitable for installation where available space is restricted. The 0.1 m cable configuration provides a short connection arrangement for suitable machine wiring. It is intended for continuous industrial use.
The sensor provides a 5 mm sensing range and two normally open potential-free outputs. It operates at 24 V DC and provides a 150 Hz switching frequency for responsive detection. Its 10 ms safety response time supports rapid monitoring of safety requests. The 36 x 13 x 26 mm housing provides a compact footprint. IP67 protection supports use in industrial environments.
The MN207S is suitable for machine safety applications where reliable guard position detection is required. Its coded actuator principle helps prevent unintended switching from unsuitable magnetic objects. The sensor is designed for repeated operation on automated machinery and protective access points. The short 0.1 m cable can simplify integration with nearby connection technology. Its US configuration provides a defined connection option for compatible installations.
Magnetically coded safety sensor
5 mm sensing range
Defined coded actuator
Two normally open outputs
Potential-free contacts
24 V DC operation
150 Hz switching frequency
10 ms safety response
0.1 m cable configuration
IP67 protection
Safety door monitoring
Machine guard detection
Protective enclosure monitoring
Industrial access protection
Packaging machinery
Assembly lines
Machine tools
Automated production systems
Material handling equipment
Safety-related position control
| Specification | Details |
|---|---|
| Product Code | MN207S |
| Model | MN14005-AKOG/L/0.1m/-H/US |
| Sensor Type | Magnetically coded sensor |
| Output Function | 2 x normally open, potential-free |
| Sensing Range | 5 mm with defined actuator |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Switching Frequency | 150 Hz |
| Response Time | 10 ms |
| Maximum Fall Time | 0.1 ms |
| Maximum Make Time incl. Bounce | 0.6 ms |
| Internal Resistance | 10 Ω, 1 W |
| Permanent Current | 50 mA |
| Maximum Capacitive Load | 20 nF |
| Cable Length | 0.1 m |
| Interface Type | A |
| Housing | Rectangular |
| Dimensions | 36 x 13 x 26 mm |
| Ambient Temperature | -25 to 80 °C |
| Protection Rating | IP67 |
| Application | Safety-related |
| Connection | Cable / US configuration |
| Pack Quantity | 1 piece |
