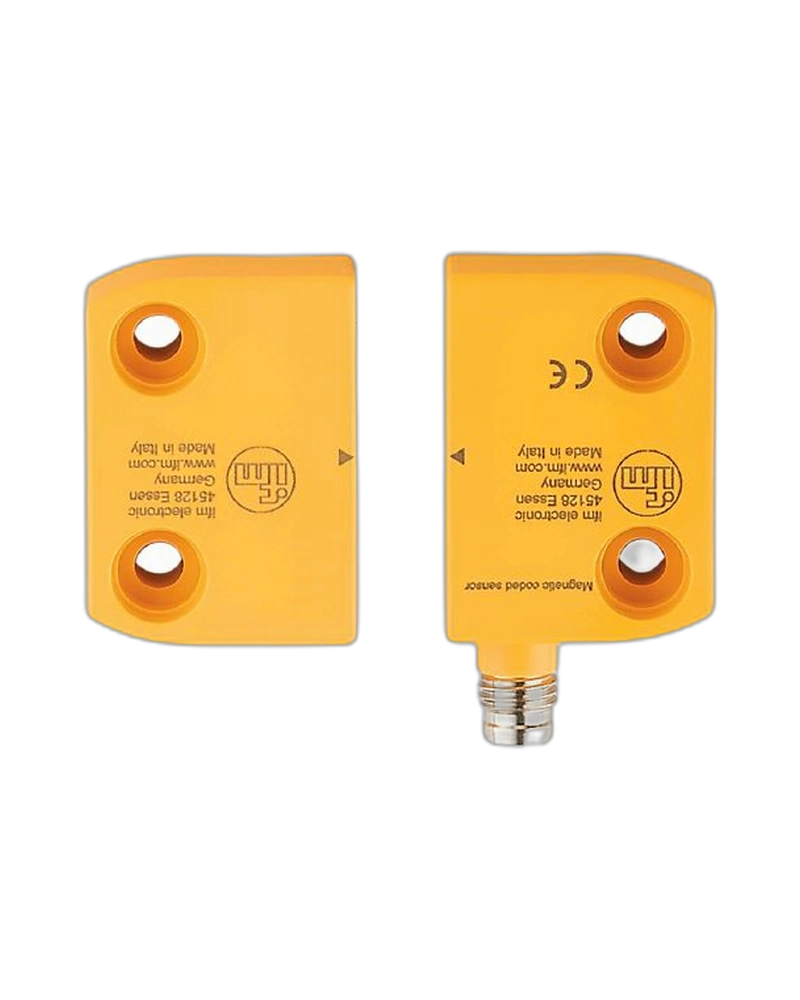

The IFM MN206S magnetically coded sensor is designed for dependable safety-related position detection in industrial machinery. Its 5 mm sensing range, coded actuator and two normally open potential-free outputs provide reliable monitoring of guards, doors and protective devices. The compact rectangular housing supports convenient installation in restricted spaces, while 24 V DC operation and robust industrial construction allow integration into machine safety systems and automated production equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN206S uses magnetic coding to provide reliable detection of a defined actuator in safety-related applications. It is designed for monitoring movable machine guards, doors and protective covers. The rectangular housing measures approximately 36 x 13 x 26 mm and is suitable for compact machine installations. Its two normally open potential-free outputs allow connection to appropriate safety evaluation equipment. The sensor is designed for continuous industrial operation.
The sensor offers a 5 mm sensing range with a defined actuator and two normally open potential-free outputs. It operates from a 24 V DC supply and uses protection class III. The 150 Hz switching frequency provides responsive detection, while the 10 ms response time supports safety-related monitoring. The compact construction helps simplify mounting around machine guarding and access areas.
The MN206S is intended for dependable position monitoring in industrial safety applications. It can detect whether a coded actuator is correctly positioned relative to the sensor. Its robust construction supports use around automated machinery, production equipment and protective enclosures. The compact dimensions are useful where installation space is limited. The AS connection configuration provides a practical option for machine integration.
Magnetically coded sensing
5 mm sensing range
Two normally open outputs
Potential-free switching
24 V DC operation
Protection class III
150 Hz switching frequency
10 ms response time
Compact 36 x 13 x 26 mm housing
Safety-related operation
Safety guard monitoring
Machine door monitoring
Protective cover detection
Access protection systems
Industrial automation machinery
Packaging equipment
Assembly machinery
Material handling systems
Machine tool applications
Safety position detection
| Specification | Details |
|---|---|
| Product Code | MN206S |
| Model | MN14005-AKOG/L/AS |
| Sensor Type | Magnetically coded sensor |
| Output Function | 2 x normally open, potential-free |
| Sensing Range | 5 mm with defined actuator |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Switching Frequency | 150 Hz |
| Response Time | 10 ms |
| Maximum Fall Time | 0.1 ms |
| Maximum Make Time incl. Bounce | 0.6 ms |
| Internal Resistance | 10 Ω, 1 W |
| Permanent Current | 50 mA |
| Maximum Capacitive Load | 20 nF |
| Interface Type | A |
| Housing | Rectangular |
| Dimensions | 36 x 13 x 26 mm |
| Ambient Temperature | -25 to 80 °C |
| Protection Rating | IP67 |
| Safety Application | Yes |
| Coded Actuator | Required |
| Connection | AS configuration |
| Pack Quantity | 1 piece |
