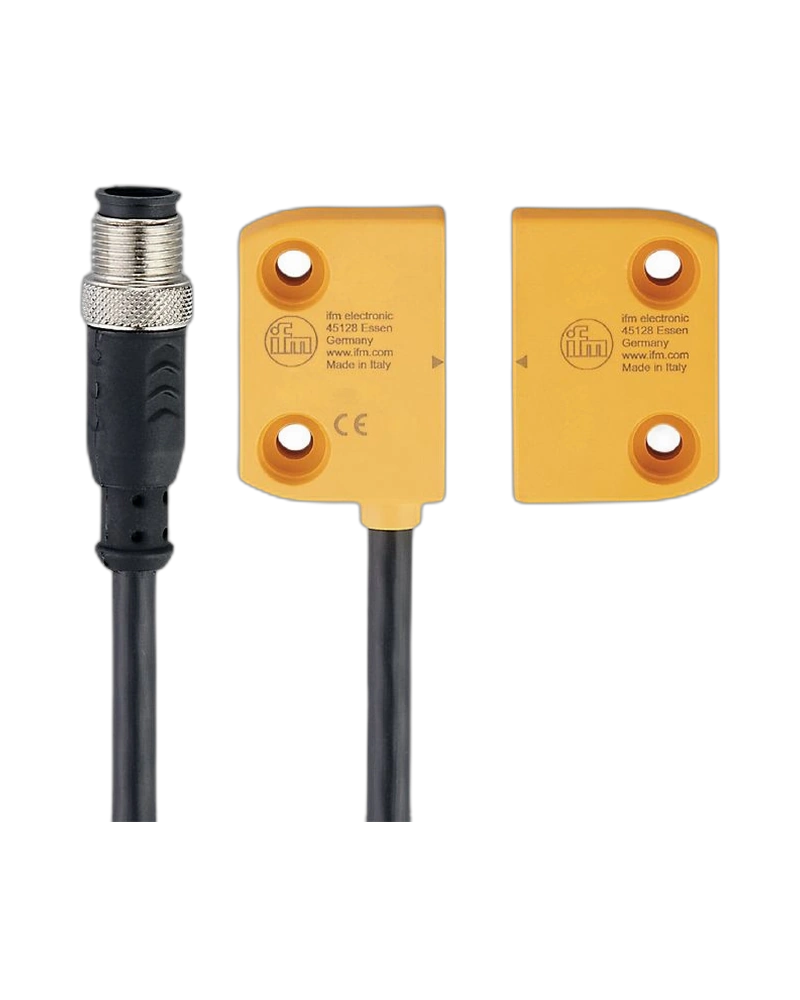

The IFM MN203S magnetically coded sensor is designed for reliable monitoring of coded actuator positions in industrial safety and machine applications. Its coded magnetic sensing principle provides contactless detection while supporting reliable switching of two normally open potential-free outputs. The compact rectangular housing is designed for demanding industrial installations and offers high ingress protection. The 0.1 m cable configuration provides convenient connection for machine safety circuits and automated equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN203S is a magnetically coded sensor designed to detect a defined coded target. Its contactless operating principle allows position monitoring without mechanical contact between the sensor and actuator. This supports reduced wear and reliable operation during repeated machine cycles. The rectangular housing provides a compact installation format. It is suitable for industrial machine monitoring applications.
The sensor provides two normally open potential-free outputs for suitable control applications. These outputs can be used to monitor the defined actuator position. The potential-free switching arrangement provides flexibility when integrating the sensor into control circuits. The sensor is designed for dependable switching performance. Correct system-level wiring should follow the applicable machine safety design.
The MN203S provides IP67 and IP69K protection when the cable arrangement is suitably protected. Its industrial construction supports demanding machine environments. The operating temperature range extends from -25 to 80 °C under specified conditions. Shock and vibration resistance support use on industrial machinery. This makes it suitable for applications exposed to mechanical movement and environmental stress.
The sensor can be used for monitoring guarded machine positions and coded actuator states. It is suitable for industrial equipment requiring reliable non-contact position information. The 0.1 m cable configuration supports compact machine wiring. Its defined actuator concept helps provide controlled detection. The MN203S is suitable for machine automation and safety-related monitoring where the complete system is appropriately designed.
Magnetically coded sensor
Defined coded actuator detection
Two normally open outputs
Potential-free switching outputs
Contactless sensing principle
Rectangular 36 x 13 x 26 mm housing
0.1 m cable configuration
IP67 and IP69K protection
Wide industrial temperature range
High shock resistance
High vibration resistance
Suitable for machine monitoring
Machine guard monitoring
Coded actuator detection
Industrial safety systems
Machine automation
Access-position monitoring
Protective-device monitoring
Industrial production equipment
Packaging machinery
Assembly machines
Automated machinery
| Specification | Details |
|---|---|
| Product Code | MN203S |
| Model | MN14005-AKOG/0.1m/-H/US |
| Product Type | Magnetically coded sensor |
| Brand | IFM |
| Sensor Principle | Magnetically coded |
| Application | Coded target detection |
| Output Function | 2 x normally open, potential-free |
| Sensing Range | 5 mm with defined actuator |
| Safe Switch-Off Distance | 15 mm |
| Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Reverse Polarity Protection | No |
| Internal Resistance | 10 Ω |
| Permanent Current Rating | 50 mA |
| Switching Frequency | 150 Hz |
| Short-Circuit Protection | No |
| Max. Capacitive Load | 20 nF |
| Housing | Rectangular |
| Dimensions | 36 x 13 x 26 mm |
| Mounting | Non-flush mountable |
| Housing Material | PA |
| Ambient Temperature | -25...80 °C |
| Protection Rating | IP67 / IP69K |
| Mission Time | Up to 20 years / 175200 h |
