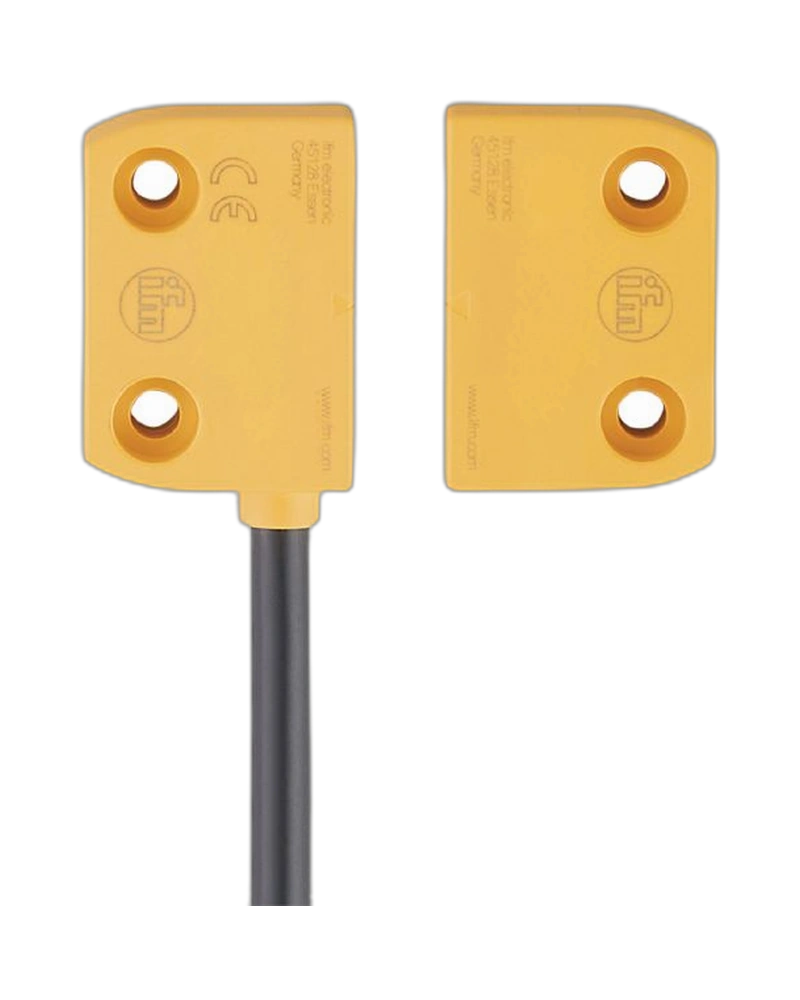

The IFM MN200S magnetically coded safety sensor is designed for reliable monitoring of guards, doors and movable protective devices in safety-related applications. Its coded magnetic technology helps prevent unintended or unauthorized switching, while actuation is possible from different directions. The sensor can be concealed behind stainless steel for enhanced tamper prevention and can support high safety levels when combined with suitable evaluation units.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MN200S is a magnetically coded safety sensor intended for safety-related machine guarding applications. It works together with a coded target to monitor protective doors, covers and access points. The coded operating principle helps distinguish the intended actuator from ordinary magnetic objects. This makes it suitable for machine safety systems requiring dependable guard monitoring.
The sensor is designed for continuous operation in safety-related applications and provides two normally open outputs. According to IFM documentation, suitable evaluation units can enable safety performance up to PL e under ISO 13849-1. It is intended to be used as part of a complete safety system rather than as an independent safety controller.
MN200S can be actuated from different directions, providing flexibility during machine installation. The sensor and coded target arrangement supports reliable guard-position monitoring. The sensor can also be concealed behind stainless steel to improve tamper prevention. Its rectangular construction supports installation on machine guarding and access doors.
The sensor is suitable for monitoring machine guards, doors, covers and protective access points. It can be integrated with appropriate safety evaluation equipment in industrial machinery. Typical applications include production machines, automated cells and guarded processing equipment. Its coded magnetic principle provides a practical solution for safety-related access monitoring.
Magnetically coded sensing
Safety-related guard monitoring
Two normally open outputs
Contactless operation
Actuation from different directions
Coded target technology
Tamper-prevention capability
Rectangular sensor design
Suitable for continuous operation
High safety level with suitable evaluation unit
Safety guard monitoring
Machine door monitoring
Protective cover monitoring
Automated production cells
Machine tools
Industrial machinery
Access-point monitoring
Packaging machines
Robotic cells
Safety-related automation
| Specification | Details |
|---|---|
| Product Code | MN200S |
| Model | MN14005-AKOG/-H |
| Product Type | Magnetically coded safety sensor |
| Sensing Principle | Magnetically coded |
| Sensing Range | 5 mm with coded target |
| Target | Coded target |
| Electrical Design | DC |
| Output Function | 2 x normally open |
| Operating Voltage | 24 V DC |
| Current Consumption | Model-specific |
| Housing Material | Plastic |
| Housing Design | Rectangular |
| Connection | Connector |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Safety-related machinery |
| Mounting | Machine guard mounting |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Safety Performance | Up to PL e with suitable evaluation unit |
