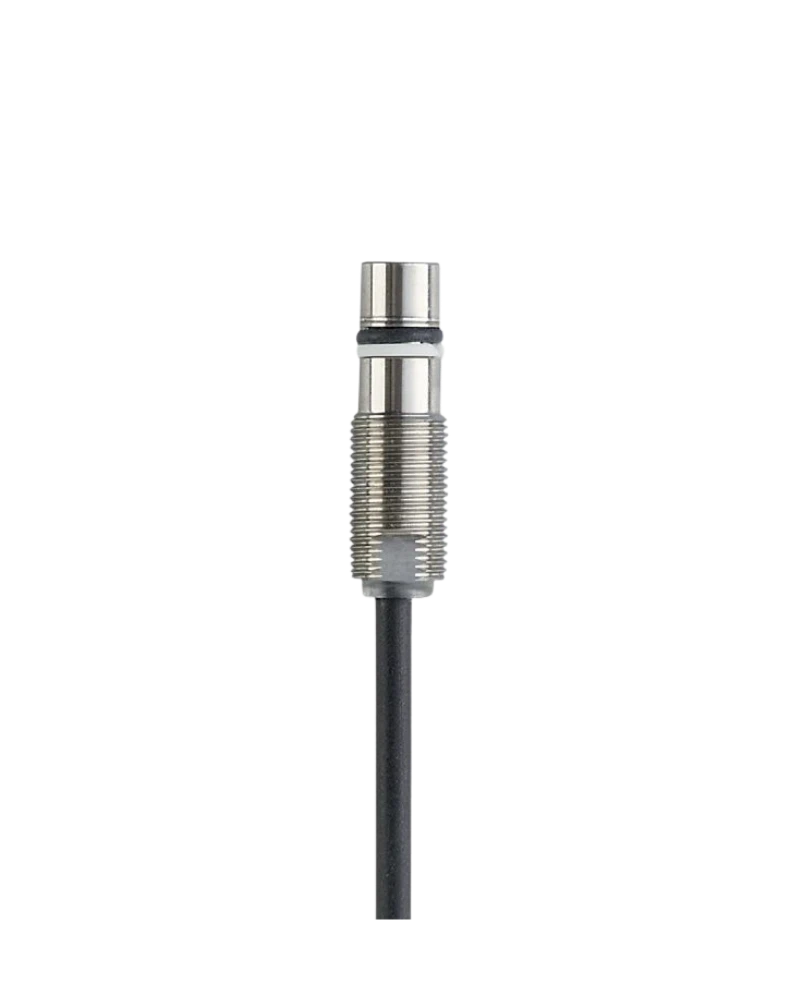

MFH205 is a pressure-resistant cylinder sensor designed for reliable position feedback on hydraulic cylinders. Its metal sensing face and robust construction provide dependable detection in demanding environments. With a pressure resistance of up to 500 bar and high burst pressure capability, the sensor is suitable for hydraulic machinery, mobile equipment and industrial automation systems requiring durable cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH205 is designed to detect hydraulic cylinder positions in applications where high mechanical and hydraulic stresses are present. Its robust metal sensing construction supports detection of ferromagnetic piston components. The sensor provides a practical solution for automated position feedback and machine-control systems.
The sensor is suitable for hydraulic applications requiring reliable position monitoring at pressures up to 500 bar. Its durable sensing face supports heavy-duty use, while the switching output provides feedback to automation controllers. MFH205 can be used for cylinder end-position detection, sequencing and machine monitoring.
MFH205 offers robust construction and pressure resistance for demanding hydraulic applications. Its metal sensing face is designed for durability and dependable ferromagnetic detection. The sensor is suitable for industrial and mobile machinery where consistent cylinder position feedback is required over extended operating cycles.
Pressure resistance up to 500 bar
Metal sensing face
Hydraulic cylinder application
High burst pressure
Ferromagnetic detection
Robust industrial construction
Long pressure-cycle life
Compact threaded design
Reliable position feedback
Heavy-duty application suitability
Hydraulic cylinders
Mobile hydraulic equipment
Construction machinery
Industrial automation
Hydraulic presses
Machine tools
Cylinder position monitoring
Material handling equipment
Automated machine control
Heavy-duty machinery
| Specification | Details |
|---|---|
| Product Code | MFH205 |
| Model | MFB3002BBPKG/B/AM/500/ZH |
| Product Type | Cylinder sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | Model-specific |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Full metal |
| Housing Design | Threaded |
| Connection | Model-specific |
| Connector | ZH configuration |
| Protection Rating | Model-specific |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | Threaded |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Pressure resistance up to 500 bar |
