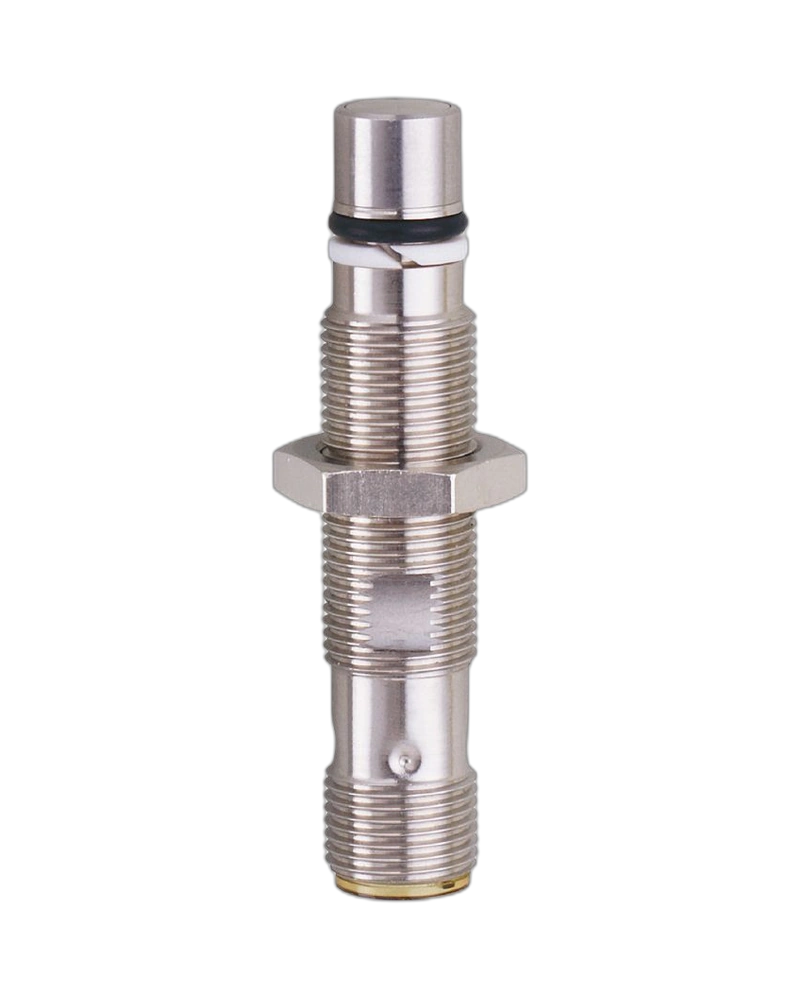

MFH204 is a pressure-resistant position sensor designed for position feedback on hydraulic cylinders. Its full-metal construction and metal sensing face provide robust detection of ferromagnetic materials in demanding environments. With pressure resistance up to 500 bar, PNP normally closed output and compact M12 x 1 housing, it is suitable for reliable hydraulic automation and industrial machine monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH204 is designed to monitor positions on hydraulic cylinders exposed to high pressure and mechanical stress. Its full-metal housing provides durability while the sensing face detects ferromagnetic components. The compact M12 x 1 threaded design enables flush installation and reliable integration into hydraulic machinery.
The sensor supports dependable position feedback in hydraulic applications with pressure resistance up to 500 bar. Its PNP normally closed output provides a switching signal for control systems, while integrated protection features support operation in industrial environments. MFH204 can be used for cylinder monitoring and automated machine sequencing.
MFH204 provides a robust solution for hydraulic cylinder position sensing. Its pressure-resistant construction, full-metal housing and reliable switching characteristics make it suitable for demanding machinery. The sensor is designed to support long-term position monitoring where durability and consistent feedback are essential.
Pressure resistance up to 500 bar
Full-metal housing
Metal sensing face
PNP normally closed output
10...36 V DC operation
1.8 mm sensing range
High burst pressure
Short-circuit protection
Overload protection
Flush installation
Hydraulic cylinder feedback
Industrial hydraulic systems
Mobile machinery
Construction equipment
Hydraulic presses
Automated machinery
Machine tools
Cylinder end-position detection
Material handling
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MFH204 |
| Model | MFB3002BAPKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Full metal |
| Housing Design | M12 x 1 / L = 60 mm |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | M12 x 1 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure resistance up to 500 bar |
