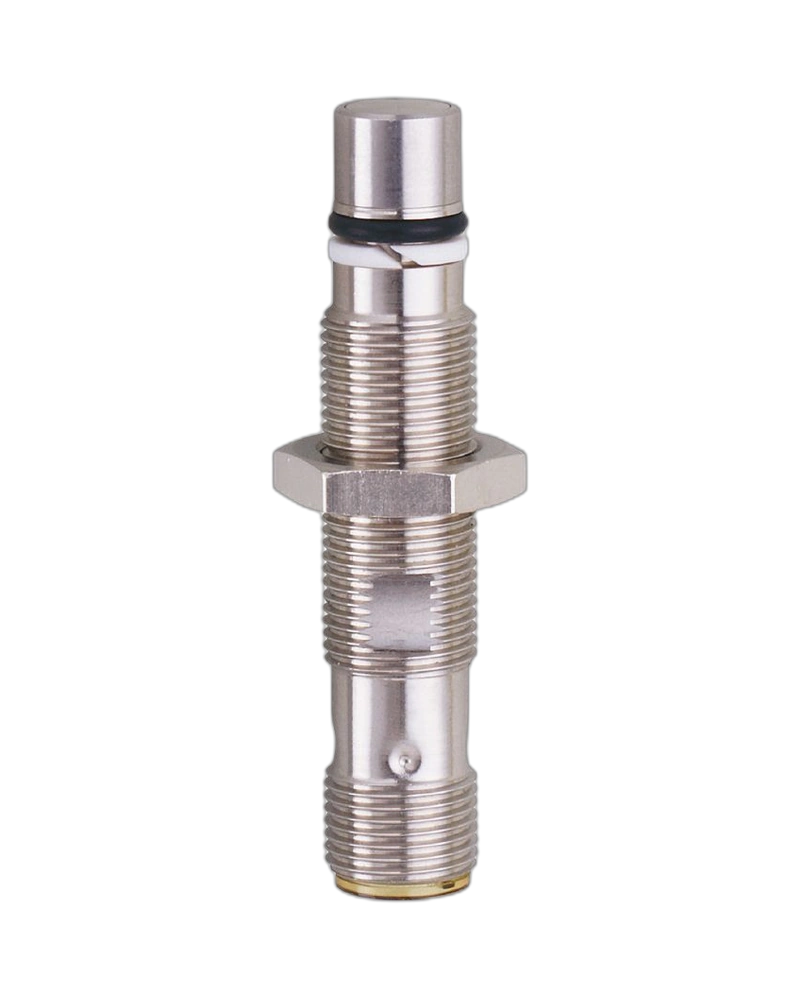

MFH203 is a pressure-resistant position sensor designed for reliable hydraulic cylinder position feedback. The sensor features a full-metal construction and detects ferromagnetic materials associated with piston movement. With pressure resistance up to 500 bar, robust mechanical construction and NPN normally open output, it is suitable for demanding hydraulic automation and industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH203 provides position feedback for hydraulic cylinders operating in demanding industrial environments. Its full-metal housing and metal sensing face support reliable detection of ferromagnetic components. The sensor is designed for applications where hydraulic pressure, mechanical stress and repeatable position feedback are important.
MFH203 supports reliable cylinder position monitoring under high-pressure conditions. Its NPN normally open output provides switching feedback to compatible control systems, while the robust housing is designed for demanding hydraulic applications. The sensor can support automated cylinder sequencing and position-dependent machine control.
MFH203 combines pressure resistance, durable metal construction and dependable magnetic detection. Its compact threaded housing supports straightforward integration into hydraulic systems. It is suitable for machine builders requiring reliable cylinder position feedback in industrial, mobile and heavy-duty hydraulic equipment.
Pressure resistance up to 500 bar
Full-metal housing
Metal sensing face
Ferromagnetic material detection
NPN normally open output
10...36 V DC operation
High burst pressure
Hydraulic cylinder application
Short-circuit protection
Overload protection
Hydraulic cylinder monitoring
Mobile hydraulic machinery
Industrial automation
Construction equipment
Hydraulic presses
Machine tools
Cylinder position feedback
Automated machine control
Material handling
Heavy-duty machinery
| Specification | Details |
|---|---|
| Product Code | MFH203 |
| Model | MFB3002BANKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | NPN |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Full metal |
| Housing Design | M12 x 1 threaded / L = 60 mm |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | M12 x 1 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure-resistant up to 500 bar |
