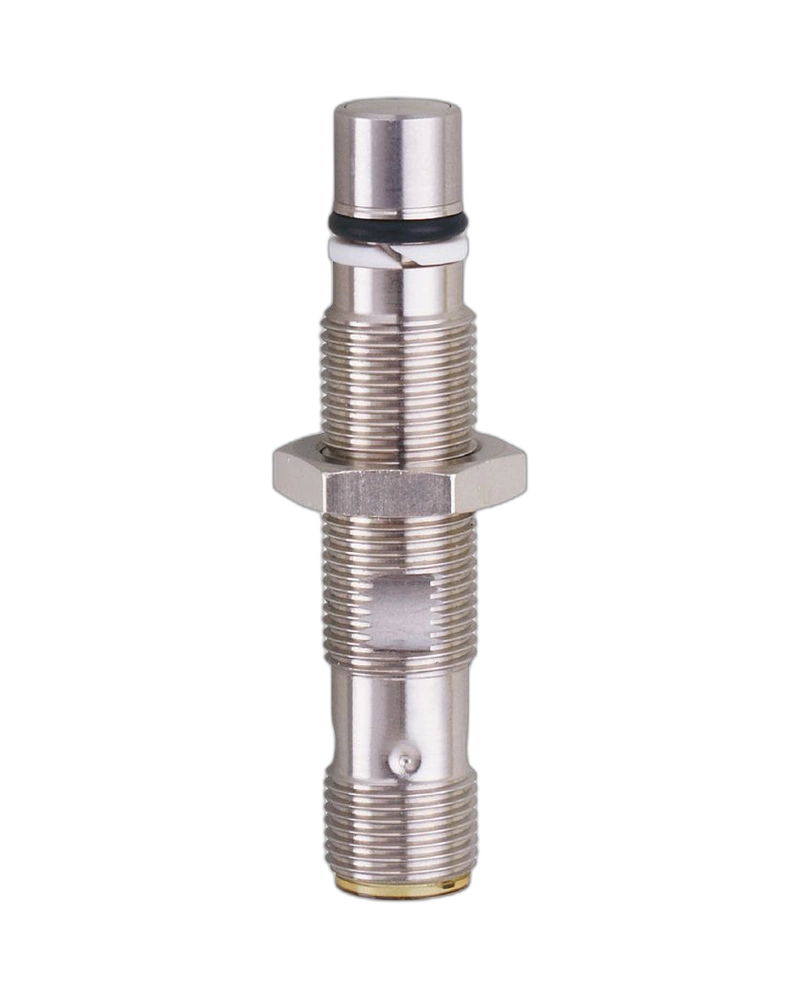

MFH202 is a pressure-resistant position sensor for hydraulic cylinders, designed to provide reliable feedback in high-pressure industrial environments. Its metal sensing face and robust construction support detection of ferromagnetic piston components. The sensor is pressure-resistant up to 500 bar and provides a compact solution for hydraulic machinery, mobile equipment and automated cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH202 is engineered for reliable position feedback on hydraulic cylinders. Its robust metal sensing construction allows detection of ferromagnetic components while supporting demanding pressure conditions. The compact threaded design enables practical installation in hydraulic equipment and automated machinery where dependable cylinder position information is required.
The sensor can operate in demanding hydraulic environments with pressure resistance up to 500 bar. Its reliable magnetic detection provides feedback for piston and cylinder movement, supporting machine sequencing and automated control. The robust design helps withstand mechanical stresses associated with industrial hydraulic equipment.
MFH202 offers a combination of high pressure resistance, durable metal construction and reliable switching. Its compact design makes it suitable for hydraulic cylinder integration, while protection features support dependable industrial operation. It is a practical choice for machine builders requiring robust position feedback.
Pressure resistance up to 500 bar
Metal sensing face
Full-metal construction
Ferromagnetic detection
Hydraulic cylinder feedback
Compact threaded housing
PNP output
10...36 V DC operation
High burst pressure
Long pressure-cycle capability
Hydraulic cylinders
Industrial hydraulic machinery
Mobile equipment
Construction machinery
Hydraulic presses
Machine automation
Cylinder end-position detection
Material handling systems
Machine tools
Heavy-duty industrial equipment
| Specification | Details |
|---|---|
| Product Code | MFH202 |
| Model | MFB3002BBPKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Full metal |
| Housing Design | Threaded |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | -25...120 °C |
| Installation | Flush |
| Mounting | M12 x 1 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure resistance up to 500 bar |
