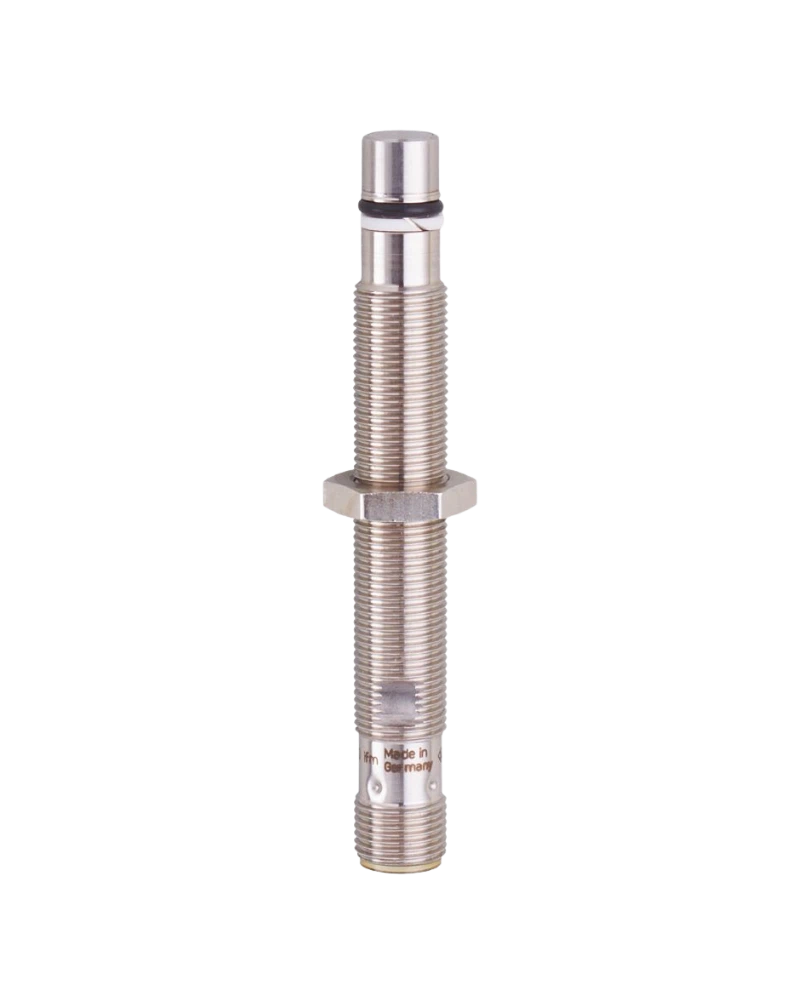

MFH201 is a pressure-resistant position sensor designed for hydraulic cylinder position feedback. It uses a robust metal sensing construction to detect ferromagnetic components while supporting demanding hydraulic applications. With pressure resistance up to 500 bar and a compact M12 threaded design, it provides dependable position monitoring for industrial hydraulics, mobile machinery and automated equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH201 is designed for end-position and position feedback applications on hydraulic cylinders. Its pressure-resistant construction enables reliable sensing in high-pressure environments, while the robust sensing face is suitable for heavy-duty operation. The sensor can be integrated into machine control systems for monitoring piston movement and cylinder position.
The sensor provides consistent detection of ferromagnetic components within hydraulic cylinder systems. Its high pressure resistance and durable construction help maintain reliable performance under demanding operating conditions. MFH201 is suitable for machine automation where cylinder position feedback is used for sequencing, control and process monitoring.
MFH201 provides a durable sensing solution for hydraulic equipment requiring reliable position feedback. Its compact threaded construction supports convenient installation, while the metal sensing face is designed for heavy-duty environments. The sensor is suitable for industrial and mobile hydraulic applications where long-term reliability is important.
Pressure resistance up to 500 bar
Metal sensing face
Hydraulic cylinder feedback
Ferromagnetic target detection
Robust construction
Compact threaded housing
PNP switching design
10...36 V DC operation
High burst pressure
Designed for long pressure-cycle life
Hydraulic cylinder monitoring
Mobile hydraulic equipment
Construction machinery
Industrial automation
Hydraulic presses
Machine tools
Material handling equipment
Cylinder end-position feedback
Automated machinery
Heavy-duty equipment
| Specification | Details |
|---|---|
| Product Code | MFH201 |
| Model | MFA3002BANKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Full metal |
| Housing Design | M12 x 1 threaded |
| Connection | 1 x M12 |
| Connector | M12 A-coded, 4 contacts |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | Up to 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | M12 x 1 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Designed for hydraulic cylinders and high-pressure environments |
