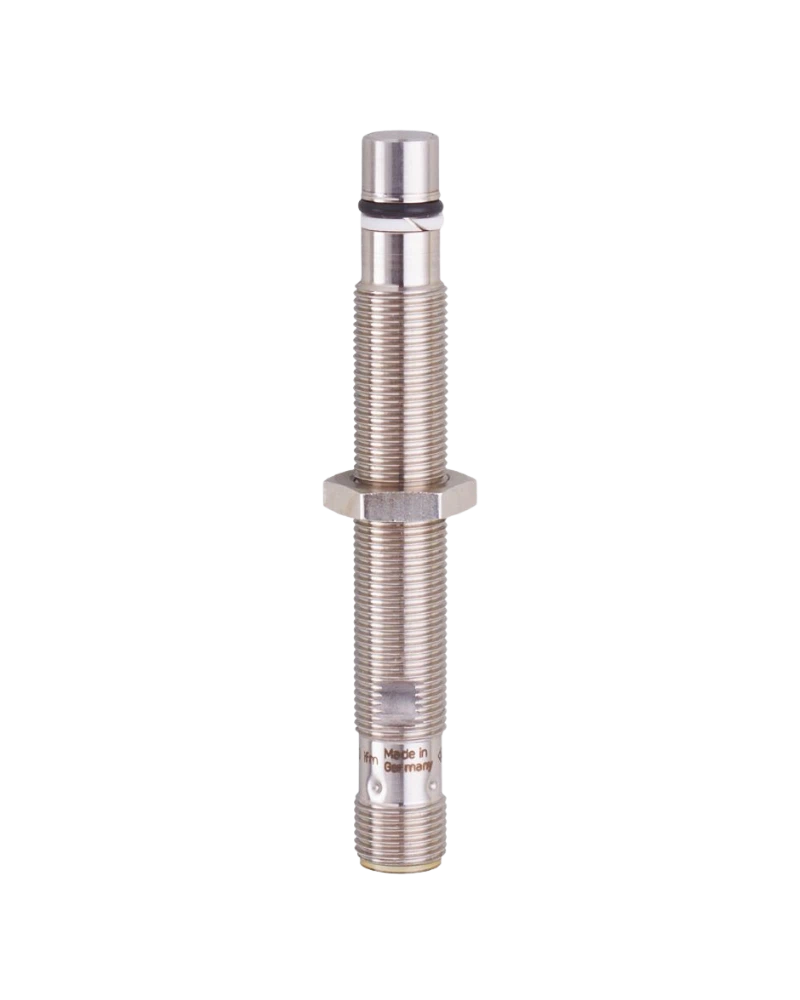

MFH200 is a pressure-resistant position sensor developed for reliable position feedback on hydraulic cylinders. It features a metal sensing face and a robust threaded housing designed for heavy-duty environments. With pressure resistance up to 500 bar, high burst pressure and a long pressure-cycle life, it is suitable for industrial hydraulics, mobile machinery and automated cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MFH200 is designed specifically for hydraulic cylinder position feedback in demanding industrial environments. Its full-metal construction and metal sensing face provide robust detection of ferromagnetic piston components. The sensor is designed to withstand hydraulic pressures up to 500 bar and is suitable for equipment requiring reliable cylinder end-position detection.
MFH200 provides dependable position detection under high-pressure hydraulic conditions. Its sensing technology detects ferromagnetic materials while the robust housing withstands mechanical and hydraulic stresses. The sensor can support automated cylinder control, machine sequencing and position monitoring in industrial and mobile hydraulic equipment.
MFH200 combines high pressure resistance, durable metal construction and reliable switching performance. Its ability to operate in demanding hydraulic environments makes it suitable for heavy-duty machinery. The sensor is designed for long service life and more than 10 million pressure cycles, helping support dependable machine operation.
Pressure resistance up to 500 bar
Metal sensing face
Full-metal construction
Detection of ferromagnetic metals
High burst pressure
Long pressure-cycle life
Designed for hydraulic cylinders
PNP switching technology
10...36 V DC supply
Compact threaded installation
Hydraulic cylinder position feedback
Mobile hydraulics
Construction equipment
Industrial hydraulic systems
Hydraulic presses
Machine tools
Material handling machinery
Automated cylinder control
Heavy-duty machinery
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MFH200 |
| Model | MFA3002BBPKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Full metal |
| Housing Design | M12 x 1 threaded / L = 93 mm |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | Up to 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | M12 x 1 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure-resistant up to 500 bar; high burst pressure |
