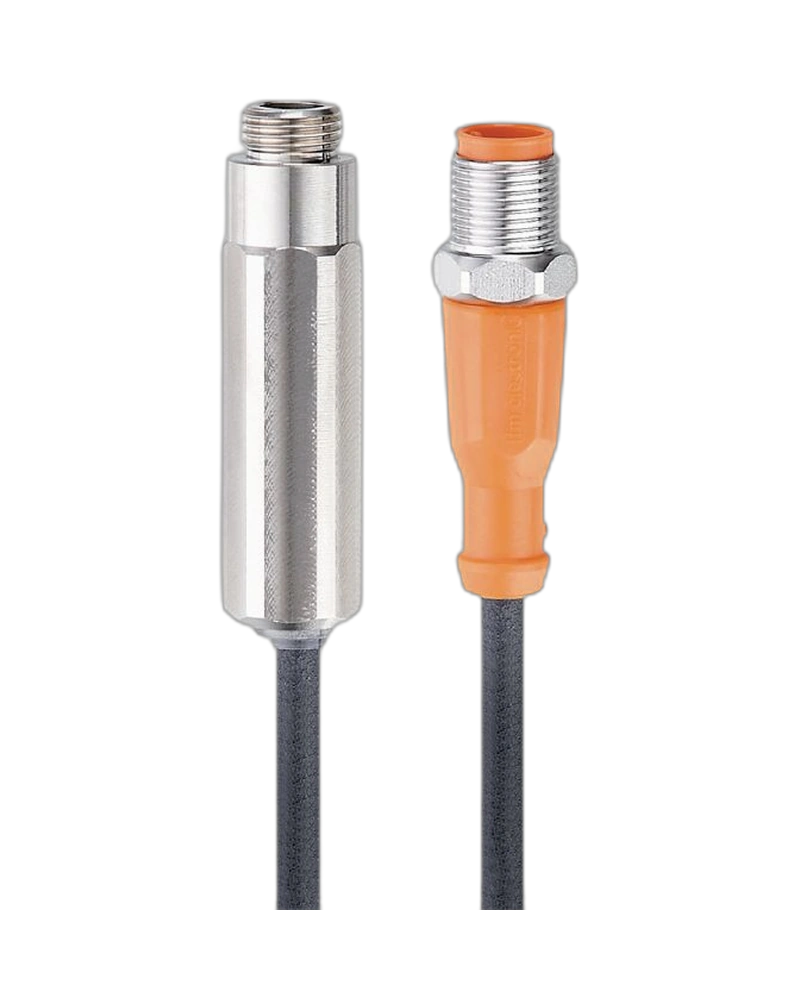

M9H215 is a robust magnetic position sensor designed for precise position detection in industrial and hydraulic machinery. Its stainless-steel 1.4404/316L housing, M11 x 1 threaded connection and 0.5 m PUR cable with M12 connector provide a durable installation solution. The sensor offers a 2 mm nominal sensing range and IP65/IP67 protection for demanding applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M9H215 is designed for reliable position detection of ferromagnetic components in industrial and hydraulic applications. The cylindrical stainless-steel housing supports flush installation and provides mechanical durability. Its compact dimensions and M11 x 1 mounting arrangement make it suitable for machine designs where dependable position feedback is required.
The sensor provides stable switching performance in environments subject to vibration, shock and temperature variation. Its 2 mm nominal sensing range supports reliable detection while the 0.5 m PUR cable and M12 connector simplify connection to automation systems. IP65 and IP67 protection further support use in demanding industrial environments.
M9H215 combines a compact stainless-steel construction with reliable magnetic detection and convenient M12 connectivity. Its robust housing and environmental protection make it appropriate for machinery exposed to vibration and mechanical impact. The sensor is well suited for hydraulic position monitoring and industrial automation applications.
2 mm nominal sensing range
Stainless-steel 316L housing
M11 x 1 threaded connection
Flush installation
0.5 m PUR cable
M12 A-coded connector
Yellow switching-status LED
IP65 and IP67 protection
-40...85 °C ambient temperature range
High shock and vibration resistance
Hydraulic position sensing
Piston detection
Cylinder monitoring
Mobile machinery
Industrial automation
Machine position feedback
Construction equipment
Material handling systems
Hydraulic machinery
Heavy-duty machine control
| Specification | Details |
|---|---|
| Product Code | M9H215 |
| Model | M9B2002-ARKG/B/AM/0,5M/ZH/US |
| Product Type | Position sensor |
| Sensing Range | 2 mm nominal |
| Electrical Design | Model-specific |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel 1.4404 / 316L |
| Housing Design | Cylindrical |
| Connection | 0.5 m PUR cable |
| Connector | 1 x M12, A-coded, 4 contacts |
| Protection Rating | IP65 / IP67 |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40...85 °C |
| Installation | Flush |
| Mounting | M11 x 1 external thread |
| LED Indicator | Yellow switching-status LED |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | 78.9 g |
| Additional Information | Stainless-steel construction for demanding environments |
