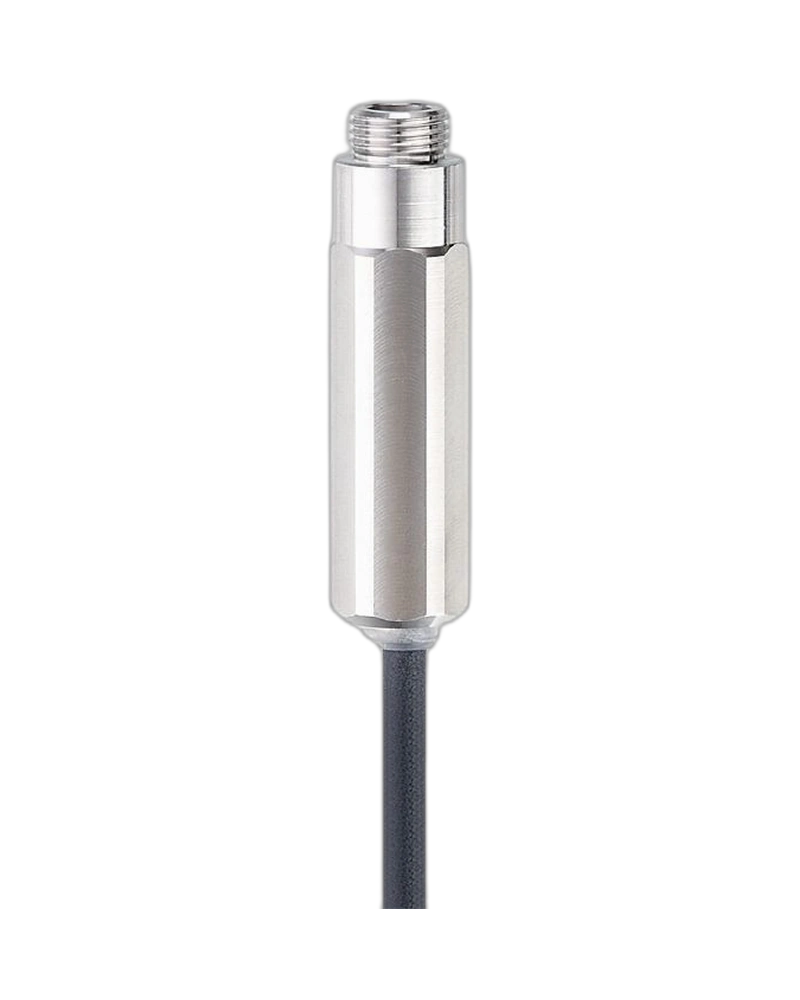

M9H211 is a compact pressure-resistant position sensor designed for piston detection and position monitoring. It features a robust stainless-steel housing, flush installation and a 2 m PUR cable. With a nominal sensing range of 2 mm and pressure resistance up to 350 bar, the sensor provides reliable feedback for hydraulic, mobile and industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M9H211 is designed to provide reliable position detection in applications involving hydraulic pistons and mobile machinery. Its stainless-steel construction provides mechanical durability, while the flush-mounting design allows integration into compact machine structures. The sensor provides a dependable switching signal for automated position monitoring.
M9H211 is suitable for environments exposed to vibration, shock and hydraulic pressure. Its 2 mm nominal sensing range allows reliable detection of ferromagnetic piston components. The 2 m PUR cable provides convenient connection to control equipment and supports installation where the sensor is located away from the control cabinet.
The sensor combines robust construction with compact installation and reliable position feedback. Its stainless-steel housing, pressure-resistant design and long PUR cable make it suitable for hydraulic and mobile applications. M9H211 is a practical solution for machine builders requiring dependable piston detection in demanding environments.
Pressure resistance up to 350 bar
2 mm nominal sensing range
Stainless-steel housing
Flush-mounting design
2 m PUR cable
PUR cable construction
High shock resistance
High vibration resistance
Compact cylindrical design
Reliable piston detection
Hydraulic piston detection
Cylinder position monitoring
Mobile machinery
Construction equipment
Hydraulic systems
Industrial automation
Machine control
Position feedback
Material handling machinery
Heavy-duty equipment
| Specification | Details |
|---|---|
| Product Code | M9H211 |
| Model | M9B2002-ARKG/B/AM/2M/ZH |
| Product Type | Position sensor |
| Sensing Range | 2 ±10% mm |
| Electrical Design | Model-specific |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel 1.4404 / 316L |
| Housing Design | Cylindrical |
| Connection | 2 m PUR cable |
| Connector | Model-specific |
| Protection Rating | IP65 / IP67 |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -25...85 °C |
| Installation | Flush |
| Mounting | Threaded M11 x 1 |
| LED Indicator | Yellow switching-status LED |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | 108.7 g |
| Additional Information | Pressure resistance up to 350 bar |
