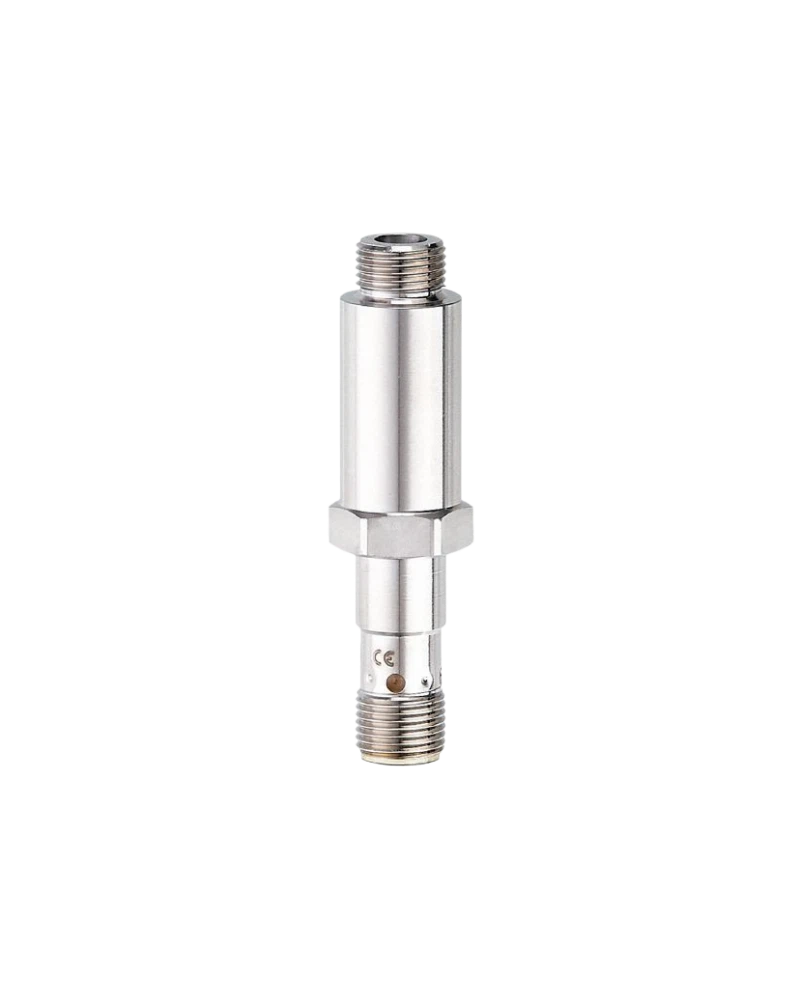

M9H210 is a compact position sensor developed for piston and position detection in demanding hydraulic and mobile applications. Its stainless-steel housing provides robust mechanical protection, while the pressure-resistant design supports applications up to 350 bar. The sensor is designed for reliable position monitoring where resistance to shock, vibration and harsh operating conditions is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M9H210 is an industrial magnetic position sensor designed for detecting piston movement and position. Its compact stainless-steel housing and broad wrench flat support convenient installation. The sensor was developed for demanding applications such as mobile machinery, where mechanical shock, vibration and hydraulic pressure can affect conventional sensors.
The sensor provides dependable position feedback for piston detection and hydraulic equipment. Its pressure resistance up to 350 bar allows use in demanding hydraulic environments, while the robust stainless-steel construction supports applications with significant mechanical stress. The sensor can be integrated into automated monitoring systems for position control and machine sequencing.
M9H210 offers a compact and mechanically robust solution for position detection. Its stainless-steel housing, pressure-resistant construction and high shock and vibration resistance make it suitable for mobile and industrial machinery. It is particularly useful where reliable piston-position feedback is required in demanding operating conditions.
Pressure resistance up to 350 bar
Compact stainless-steel housing
Designed for piston detection
Robust construction
High shock resistance
High vibration resistance
Suitable for mobile applications
Broad wrench flat for installation
Reliable magnetic position detection
Designed for demanding industrial environments
Piston position detection
Hydraulic machinery
Mobile machinery
Construction equipment
Industrial automation
Cylinder monitoring
Machine position feedback
Material handling equipment
Hydraulic systems
Automated machine control
| Specification | Details |
|---|---|
| Product Code | M9H210 |
| Model | M9B2002-ARKG/B/AM/US |
| Product Type | Position sensor |
| Sensing Range | 2 mm nominal |
| Electrical Design | Model-specific |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel |
| Housing Design | Compact threaded housing |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush / threaded installation |
| Mounting | Threaded |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Pressure resistance up to 350 bar |
