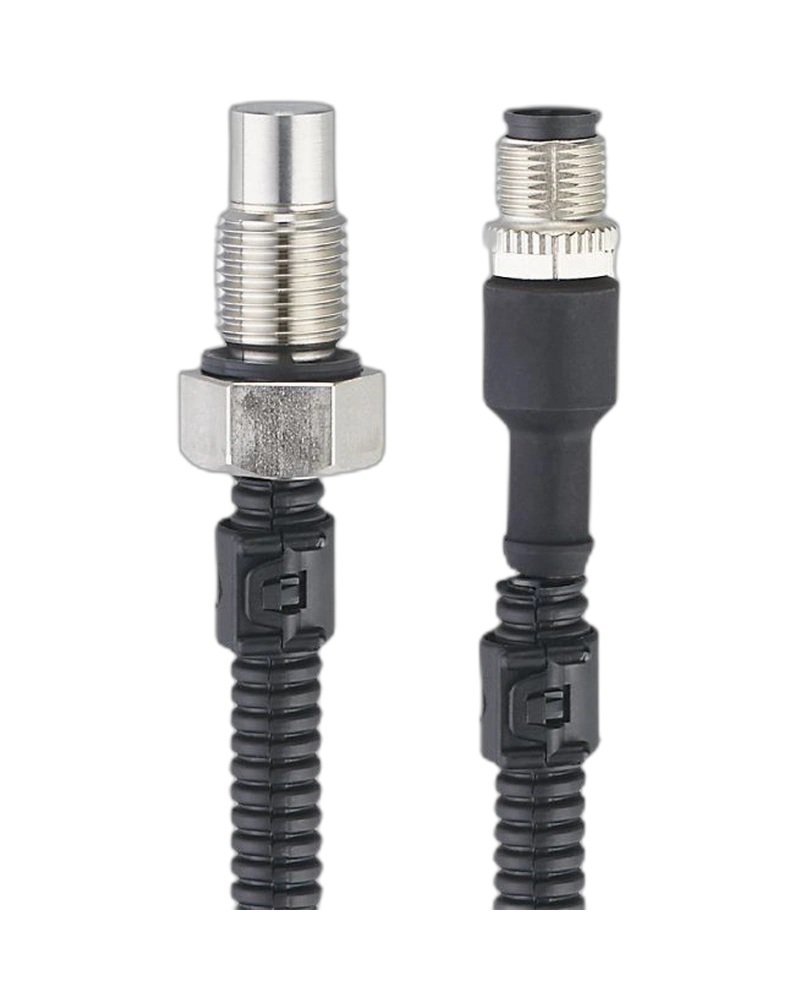

M9H206 is a pressure-resistant cylinder sensor designed for position feedback in hydraulic cylinders. The sensor uses a compact metal construction with a robust sensing face for demanding industrial applications. With resistance to pressures up to 500 bar and a 0.5 m PUR cable with M12 connector, it provides reliable detection of ferromagnetic cylinder components for automation and hydraulic machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H206 is designed for reliable position detection on hydraulic cylinders in industrial and mobile applications. Its threaded M14 x 1.5 housing provides a compact installation arrangement, while the metal sensing face is intended for demanding environments. The sensor detects ferromagnetic components and provides a switching signal for monitoring cylinder position.
The sensor is engineered for hydraulic applications where high pressure and mechanical stress can affect conventional sensing devices. With pressure resistance up to 500 bar and a robust sensing construction, M9H206 supports dependable cylinder position feedback. Its 0.5 m PUR cable and M12 connector simplify connection to industrial control systems.
M9H206 provides a practical combination of high pressure resistance, durable construction and straightforward electrical connection. Its metal sensing face is suitable for heavy-duty applications, while the compact threaded housing enables convenient installation. The sensor is a strong choice for hydraulic automation systems requiring dependable cylinder position feedback.
Pressure-resistant up to 500 bar
Designed for hydraulic cylinders
Metal sensing face
Detection of ferromagnetic materials
M14 x 1.5 threaded housing
PNP normally open output
10...36 V DC operating voltage
0.5 m PUR cable
M12 connector
Designed for long pressure-cycle life
Hydraulic cylinder position feedback
Mobile hydraulic equipment
Industrial hydraulic machinery
Construction machinery
Material handling systems
Hydraulic presses
Automated machinery
Cylinder end-position monitoring
Machine automation
Heavy-duty industrial equipment
| Specification | Details |
|---|---|
| Product Code | M9H206 |
| Model | M9B3002BBPKG/B/AM/500/0,5M/US |
| Product Type | Cylinder sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Metal / stainless steel |
| Housing Design | M14 x 1.5 threaded housing |
| Connection | 0.5 m PUR cable |
| Connector | 1 x M12, A-coded, 4 contacts |
| Protection Rating | IP65 / IP67 |
| Protection Class | III |
| Switching Frequency | Up to 1000 Hz |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush |
| Mounting | M14 x 1.5 threaded |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure resistance up to 500 bar |
