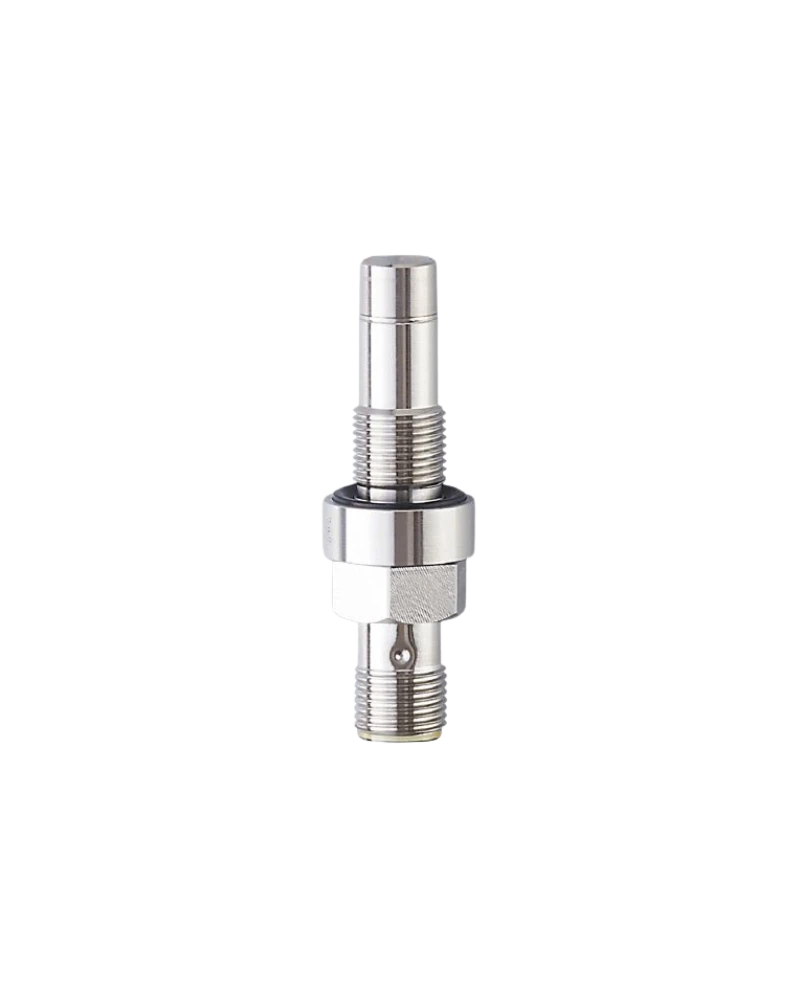

M9H203 is a pressure-resistant position sensor designed for reliable position feedback in hydraulic cylinders. Its robust construction and metal sensing face support demanding industrial environments where high pressure, shock and vibration are present. The sensor detects ferromagnetic piston components and provides dependable switching performance for hydraulic equipment, mobile machinery and automated cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H203 is designed for precise end-position detection on hydraulic cylinders operating under demanding mechanical conditions. Its compact threaded construction enables practical installation while the pressure-resistant design supports hydraulic applications up to 500 bar. The robust sensing face and industrial housing help provide reliable detection over extended operating cycles.
M9H203 delivers consistent position feedback by detecting ferromagnetic components associated with hydraulic cylinder movement. Its pressure-resistant construction is suited to applications exposed to hydraulic pressure, mechanical shock and vibration. The sensor can support automated monitoring of cylinder positions in machinery where reliable feedback is important for sequencing, control and safety-related machine functions.
M9H203 combines compact installation, robust sensing technology and high pressure resistance for demanding hydraulic applications. Its durable construction helps reduce the need for frequent sensor replacement, while reliable switching provides useful feedback to automation controllers. It is suitable for industrial automation, hydraulic machinery and mobile equipment requiring dependable cylinder position detection.
Pressure-resistant design for hydraulic cylinder applications
Pressure resistance up to 500 bar
Robust metal sensing face for demanding environments
Detection of ferromagnetic materials
Compact threaded sensor construction
Reliable position feedback
Designed for hydraulic cylinder monitoring
High resistance to mechanical stress
Suitable for industrial automation systems
Long operating life in demanding applications
Hydraulic cylinder end-position detection
Mobile hydraulic machinery
Construction equipment
Industrial hydraulic systems
Material handling equipment
Machine tool hydraulics
Automated cylinder monitoring
Hydraulic presses
Factory automation equipment
Position feedback systems
| Specification | Details |
|---|---|
| Product Code | M9H203 |
| Model | M9K3002BBPKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor |
| Sensing Range | 1.8 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...36 V DC |
| Current Consumption | < 23 mA |
| Housing Material | Stainless steel / metal construction |
| Housing Design | Threaded housing |
| Connection | Model-specific |
| Connector | Model-specific |
| Protection Rating | Model-specific / refer to IFM datasheet |
| Protection Class | III |
| Switching Frequency | Up to 1000 Hz, model-dependent |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush installation |
| Mounting | Threaded mounting |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Pressure-resistant up to 500 bar |
