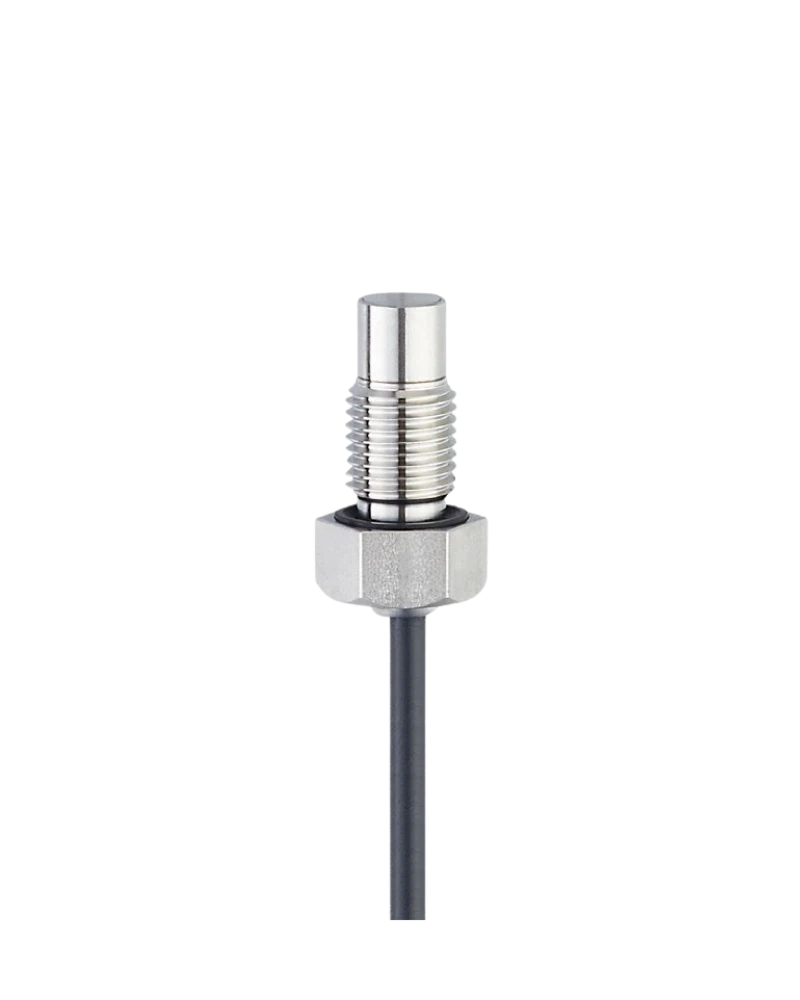

The IFM M9H202 is a magnetic cylinder sensor designed for reliable hydraulic-cylinder position monitoring under demanding pressure conditions. It provides a 2 mm sensing range and pressure resistance up to 500 bar. Its compact M14 housing supports flush installation, while the 1 m cable with AMP plug provides a practical connection arrangement. The sensor is suitable for industrial hydraulics and mobile machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H202 is a pressure-resistant magnetic-inductive cylinder sensor designed to detect the position of ferromagnetic steel piston rods. Its compact M14 housing supports flush installation into compatible hydraulic cylinders. The sensor uses non-contact magnetic detection to provide position feedback without mechanical switching wear. Its pressure-resistant construction makes it suitable for demanding hydraulic machinery and equipment.
The sensor provides a 2 mm sensing range and can withstand pressures up to 500 bar, supporting reliable position monitoring in high-pressure hydraulic cylinders. The 1 m cable provides practical installation flexibility, while the AMP plug supports compatible electrical connection arrangements. Its PNP normally open output is suitable for integrating piston-position information into compatible control systems.
The M9H202 combines pressure resistance, compact construction and magnetic-inductive sensing for hydraulic-cylinder applications. Its M14 housing supports flush integration, while the 1 m cable provides useful installation reach. The 500 bar pressure rating makes it suitable for demanding hydraulic systems. It is a practical choice for machinery requiring dependable, non-contact cylinder-position feedback.
Pressure-resistant hydraulic-cylinder sensor
Magnetic-inductive sensing principle
2 mm sensing range
Up to 500 bar pressure resistance
M14 housing
Flush installation
PNP normally open output
1 m cable
AMP plug connection
Non-contact piston detection
Hydraulic-cylinder position monitoring
Mobile hydraulic machinery
Construction equipment
Agricultural equipment
Industrial hydraulic systems
Hydraulic presses
Material-handling machinery
Industrial actuators
Machine automation
Cylinder stroke monitoring
| Specification | Details |
|---|---|
| Product Code | M9H202 |
| Model | M9B3002BBPKG/B/AM/500/1M/AMP |
| Product Type | Cylinder sensor |
| Sensing Range | 2 mm |
| Electrical Design | Magnetic-inductive |
| Output Function | PNP normally open |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel |
| Housing Design | M14, approximately 40 mm length |
| Connection | 1 m cable |
| Connector | AMP plug |
| Protection Rating | Model-specific |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush installation |
| Mounting | M14 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Pressure rating up to 500 bar; designed for hydraulic-cylinder piston detection |
