The IFM M9H201 is a magnetic cylinder sensor designed for reliable position detection in hydraulic-cylinder applications. It features a compact M14 housing, 2 mm sensing range and pressure resistance up to 500 bar. The sensor uses magnetic-inductive detection to monitor ferromagnetic piston rods without mechanical contact. Its 0.5 m cable configuration provides a practical connection for industrial hydraulic equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

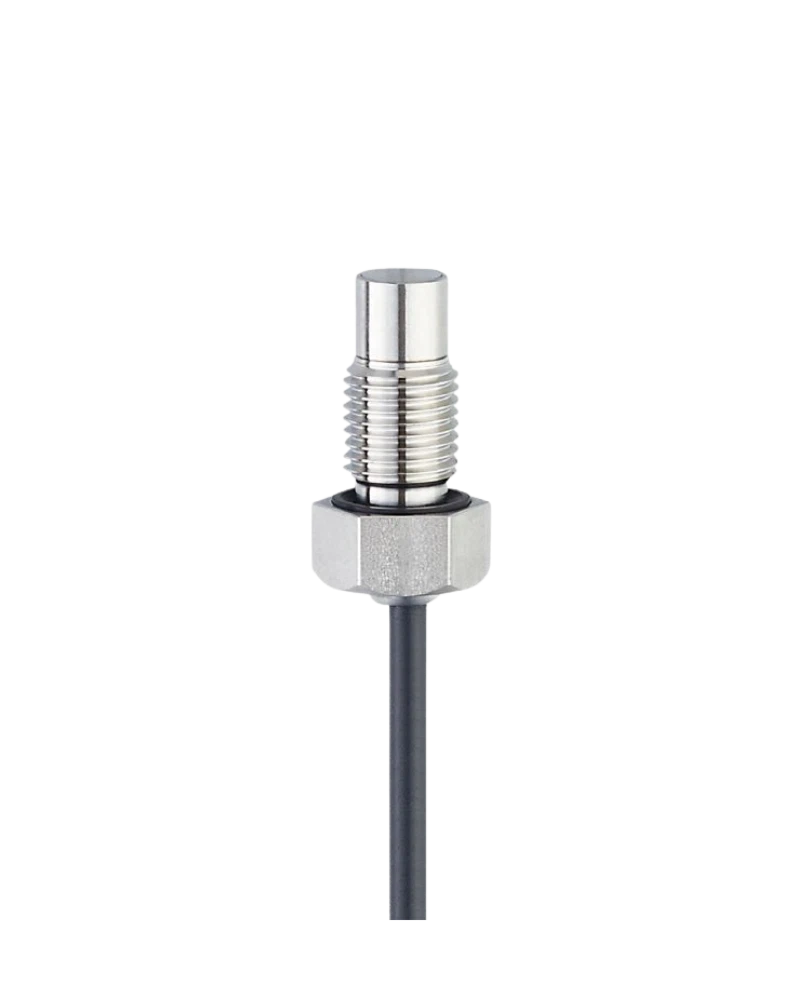

The M9H201 is a pressure-resistant cylinder sensor designed to detect piston position in hydraulic cylinders. Its magnetic-inductive sensing principle detects ferromagnetic steel piston rods without mechanical contact. The compact M14 housing supports flush integration into compatible cylinders. Its design is intended for demanding hydraulic equipment where reliable position feedback is required under high-pressure operating conditions.
The sensor provides a 2 mm sensing range and pressure resistance up to 500 bar, supporting reliable hydraulic-cylinder monitoring. The 0.5 m cable provides a compact connection arrangement for cylinder installations. Non-contact sensing reduces mechanical wear during repeated piston movement. Its PNP normally open output provides a suitable switching signal for compatible industrial automation and hydraulic control systems.
The M9H201 provides a compact and pressure-resistant solution for hydraulic-cylinder position sensing. Its M14 housing, flush installation and magnetic-inductive principle support reliable integration into suitable cylinders. The 500 bar pressure capability makes it suitable for demanding hydraulic applications. The 0.5 m cable also provides a convenient connection arrangement for machinery and mobile equipment.
Pressure-resistant cylinder sensor
Magnetic-inductive sensing
2 mm sensing range
500 bar pressure rating
M14 housing
Flush mounting
PNP normally open output
0.5 m cable
Non-contact piston detection
Designed for hydraulic cylinders
Hydraulic cylinder monitoring
Mobile hydraulics
Industrial hydraulic machinery
Construction equipment
Agricultural machinery
Hydraulic presses
Material-handling machines
Industrial actuators
Machine automation
Piston position feedback
| Specification | Details |
|---|---|
| Product Code | M9H201 |
| Model | M9B3002BBPKG/B/AM/500/ZH |
| Product Type | Cylinder sensor |
| Sensing Range | 2 mm |
| Electrical Design | Magnetic-inductive |
| Output Function | PNP normally open |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel |
| Housing Design | M14, approximately 40 mm length |
| Connection | 0.5 m cable |
| Connector | Cable |
| Protection Rating | Model-specific |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush installation |
| Mounting | M14 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Pressure rating up to 500 bar; designed for hydraulic-cylinder piston detection |
