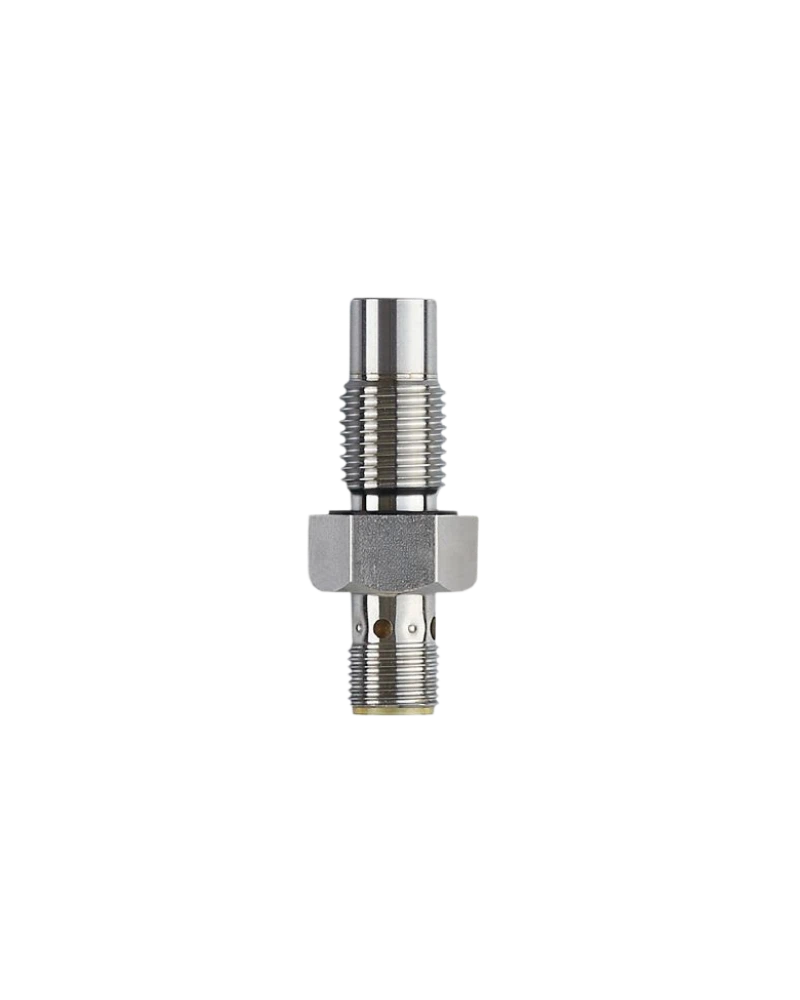

The IFM M9H200 is a pressure-resistant magnetic position sensor designed for hydraulic cylinders operating under demanding conditions. It provides a 2 mm sensing range and is rated for pressures up to 500 bar. The M14 housing supports compact cylinder integration, while the M12 connection provides a practical interface. The sensor detects ferromagnetic piston positions for reliable hydraulic-cylinder monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H200 is a pressure-resistant magnetic-inductive position sensor designed specifically for hydraulic cylinders. It detects the position of ferromagnetic steel piston rods without requiring mechanical contact with the moving element. Its M14 housing and compact construction support cylinder integration, while the pressure-resistant design allows operation in demanding hydraulic applications where high mechanical and fluid pressure are present.
The sensor provides a 2 mm sensing range and pressure resistance up to 500 bar, making it suitable for hydraulic-cylinder position monitoring. Flush installation allows the sensor to be integrated efficiently into compatible cylinder designs. Its magnetic-inductive principle provides non-contact detection of piston movement, supporting repeated operation without mechanical switching wear. The PNP normally open output can provide position feedback to suitable control systems.
The M9H200 combines magnetic position sensing with high pressure resistance for hydraulic-cylinder applications. Its compact M14 housing, 2 mm sensing range and M12 connection provide practical machine integration. The sensor is suitable for mobile hydraulics, industrial hydraulic systems and machinery where reliable piston-position feedback is required under demanding pressure conditions.
Pressure-resistant hydraulic-cylinder sensor
Magnetic-inductive sensing principle
2 mm sensing range
Up to 500 bar pressure resistance
M14 housing
Flush installation capability
PNP normally open output
Non-contact piston detection
Stainless-steel construction
M12 connection
Hydraulic cylinder position monitoring
Mobile hydraulic equipment
Industrial hydraulic systems
Construction machinery
Agricultural machinery
Material-handling equipment
Industrial presses
Hydraulic actuators
Machine automation
Cylinder stroke monitoring
| Specification | Details |
|---|---|
| Product Code | M9H200 |
| Model | M9B3002BBPKG/B/AM/500/US |
| Product Type | Pressure-resistant position sensor for hydraulic cylinders |
| Sensing Range | 2 mm |
| Electrical Design | Magnetic-inductive |
| Output Function | PNP normally open |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Housing Material | Stainless steel |
| Housing Design | M14, approximately 53 mm length |
| Connection | Model-specific |
| Connector | M12 |
| Protection Rating | Model-specific |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Flush installation |
| Mounting | M14 |
| LED Indicator | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Pressure rating up to 500 bar; designed for hydraulic-cylinder piston detection |
