Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Emitter + Receiver sensing. The nominal sensing distance is ≤ 6 m.
The sensing principle is Emitter + Receiver. The nominal sensing distance is ≤ 6 m.
The output type is 2 x PNP-NO (safety output OSSD). The operating voltage is 19,2 … 28,8 Vcc, with load current of ≤ 400 mA.
Ingress protection is rated IP65, IP67.
Cable length (power supply/output) is ≤ 100 m. Capacitive load is ≥ 0,82 µF. Equivalent resistive load is ≥ 60 Ω.
Dimensions are 28 mm (front side) x 30 mm.
Cable length for Master Slave connection is ≤ 50 m.
The operating temperature range is -10 °C ÷ +55 °C (non-condensing). EMC compatibility is In accordance with Directive 2014/30/EU.
Storage temperature is -25 °C ÷ +70 °C (non-condensing).

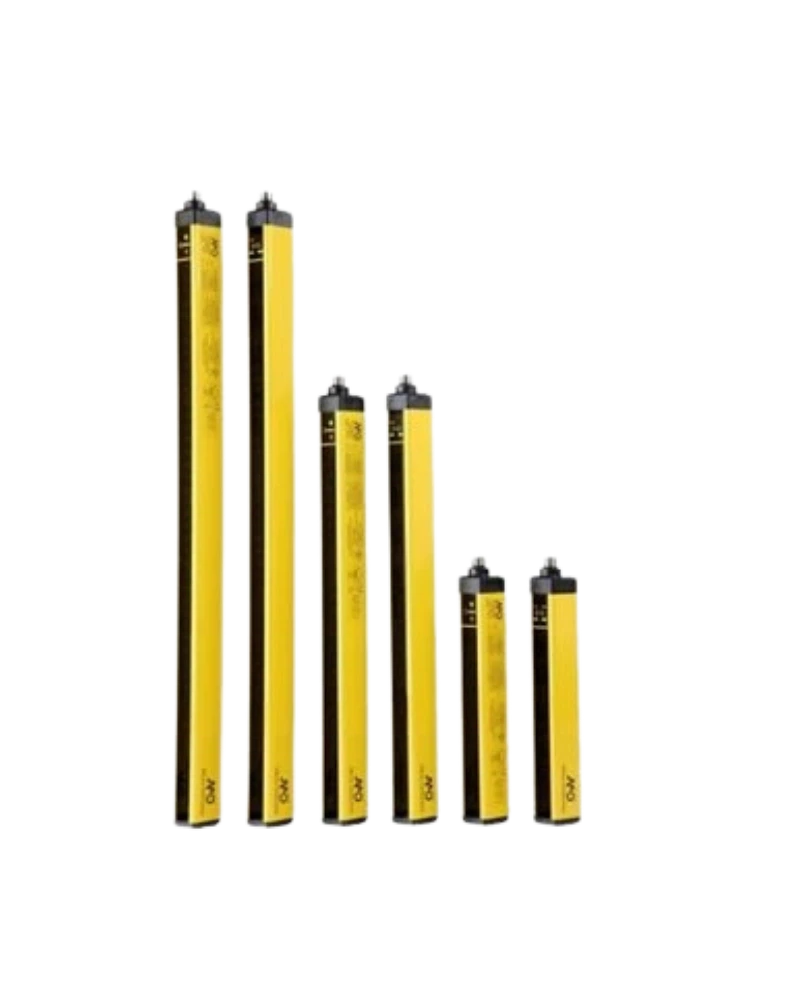

The model is part of the Safety light curtains family. Included items are ST 204 4S.
Available functions is Manual/automatic restart, EDM.
The manufacturer part number is LS4ER/14-060M. This model is manufactured by M.D. Micro Detectors. Response time is 9 ms.
Response time (master + slave) is T=[0,06*(Tslave+Tmaster)+0,9636]*2. Humidity is 95% (non-condensing). Safety parameters is Type:.
Type is 4. Number of beams is 60. Controlled height is 610 mm.
Effective aperture angle is ±5°. Time to availability is 2s. External-light interference is limited to In accordance with IEC 61496-2.
LS4ER/14-060M uses Emitter + Receiver sensing with a nominal sensing distance of ≤ 6 m. For electrical integration, it provides output type 2 x PNP-NO (safety output OSSD), operating voltage 19,2 … 28,8 Vcc. The physical configuration includes dimensions 28 mm (front side) x 30 mm. It is rated IP65, IP67 for an operating temperature range of -10 °C ÷ +55 °C (non-condensing).
| Specification | Details |
|---|---|
| Model | LS4ER/14-060M |
| Manufacturer part number | LS4ER/14-060M |
| Manufacturer | M.D. Micro Detectors |
| Response time | 9 ms |
| Response time (Master + Slave) | T=[0,06*(Tslave+Tmaster)+0,9636]*2 |
| Output type | 2 x PNP-NO (safety output OSSD) |
| Humidity | 95% (non-condensing) |
| Operating temperature | -10 °C ÷ +55 °C (non-condensing) |
| Dimensions | 28 mm (front side) x 30 mm |
| Storage temperature | -25 °C ÷ +70 °C (non-condensing) |
| Safety parameters | Type: |
| Type | 4 |
| Available functions | Manual/automatic restart, EDM |
| Included | ST 204 4S |
| Product family | Safety light curtains |
| Number of beams | 60 |
| Controlled height | 610 mm |
| Nominal sensing distance | ≤ 6 m |
| Effective aperture angle | ±5° |
| Degree of protection | IP65, IP67 |
| EMC compatibility | In accordance with Directive 2014/30/EU |
| Cable length (power supply/output) | ≤ 100 m |
| Cable length for Master Slave connection | ≤ 50 m |
| Capacitive load | ≥ 0,82 µF |
| Time to availability | 2s |
| External light interference | In accordance with IEC 61496-2 |
| Power consumption - Emitter | 1 W |
| Power consumption - Receiver | 2 W (no-load) |
| Operating voltage | 19,2 … 28,8 Vcc |
| Load current | ≤ 400 mA |
| Equivalent resistive load | ≥ 60 Ω |
