It uses Emitter + Receiver sensing. The nominal sensing distance is ≤ 60 m.
The sensing principle is Emitter + Receiver. The nominal sensing distance is ≤ 60 m.
The output type is 2 x PNP-NO (safety output OSSD). The operating voltage is 19,2 … 28,8 Vcc, with load current of 500 mA.
Ingress protection is rated IP65.
Cable length (power supply/output) is 100 m. Capacitive load is ≥ 2 µF. Equivalent resistive load is ≥ 48 Ω.
Dimensions are 50 mm (front side) x 60 mm.
The operating temperature range is 0 °C…+55 °C. EMC compatibility is In accordance with Directive 2014/30/EU.
Storage temperature is -25 °C…+70 °C.

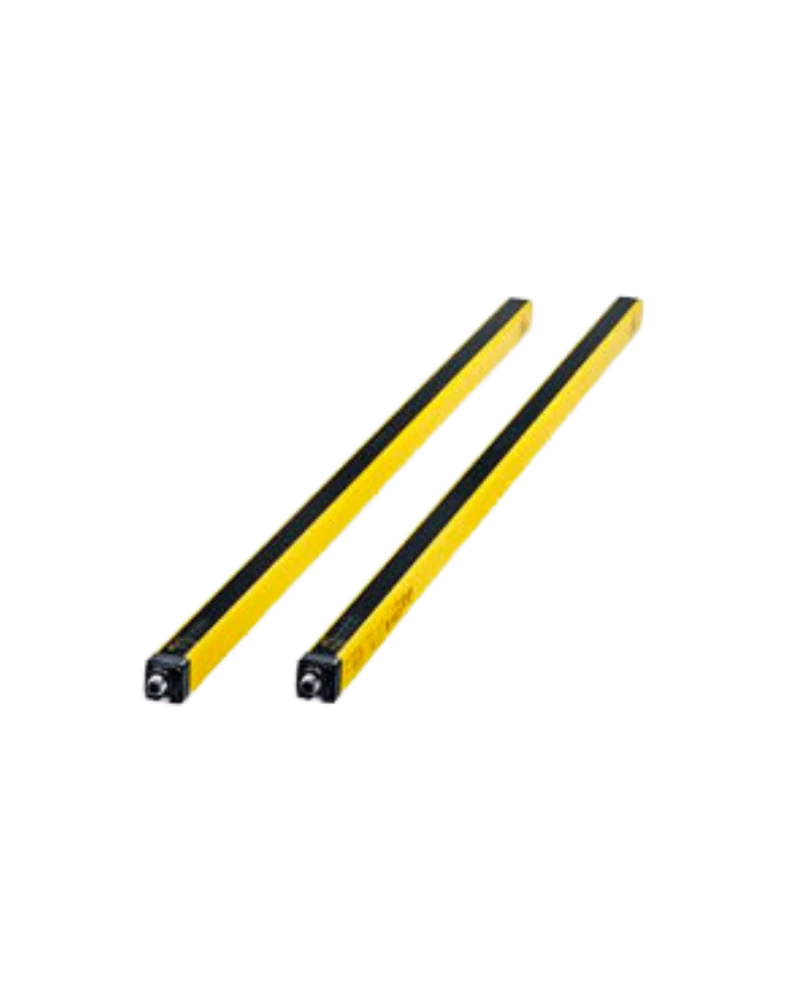

The model is part of the Safety light curtains family. Included items are ST 202, ST 203.
The manufacturer part number is LP4ER/0C-090M4L. This model is manufactured by M.D. Micro Detectors. Response time is 7 ms.
Humidity is 95% (non-condensing). Safety parameters is Type:. Type is 4.
Number of beams is 4. Controlled height is 900 mm. Effective aperture angle is ≤ ±2,5°.
Time to availability is 15s. The external-light interference limit is In accordance with IEC 61496-2.
LP4ER/0C-090M4L uses Emitter + Receiver sensing with a nominal sensing distance of ≤ 60 m. For electrical integration, it provides output type 2 x PNP-NO (safety output OSSD), operating voltage 19,2 … 28,8 Vcc. The physical configuration includes dimensions 50 mm (front side) x 60 mm. It is rated IP65 for an operating temperature range of 0 °C…+55 °C.
| Specification | Details |
|---|---|
| Model | LP4ER/0C-090M4L |
| Manufacturer part number | LP4ER/0C-090M4L |
| Manufacturer | M.D. Micro Detectors |
| Response time | 7 ms |
| Output type | 2 x PNP-NO (safety output OSSD) |
| Humidity | 95% (non-condensing) |
| Operating temperature | 0 °C…+55 °C |
| Dimensions | 50 mm (front side) x 60 mm |
| Storage temperature | -25 °C…+70 °C |
| Safety parameters | Type: |
| Type | 4 |
| Included | ST 202, ST 203 |
| Product family | Safety light curtains |
| Number of beams | 4 |
| Controlled height | 900 mm |
| Nominal sensing distance | ≤ 60 m |
| Effective aperture angle | ≤ ±2,5° |
| Degree of protection | IP65 |
| EMC compatibility | In accordance with Directive 2014/30/EU |
| Cable length (power supply/output) | 100 m |
| Capacitive load | ≥ 2 µF |
| Time to availability | 15s |
| External light interference | In accordance with IEC 61496-2 |
| Power consumption - Emitter | 3 W |
| Power consumption - Receiver | 6 W |
| Operating voltage | 19,2 … 28,8 Vcc |
| Load current | 500 mA |
| Equivalent resistive load | ≥ 48 Ω |
