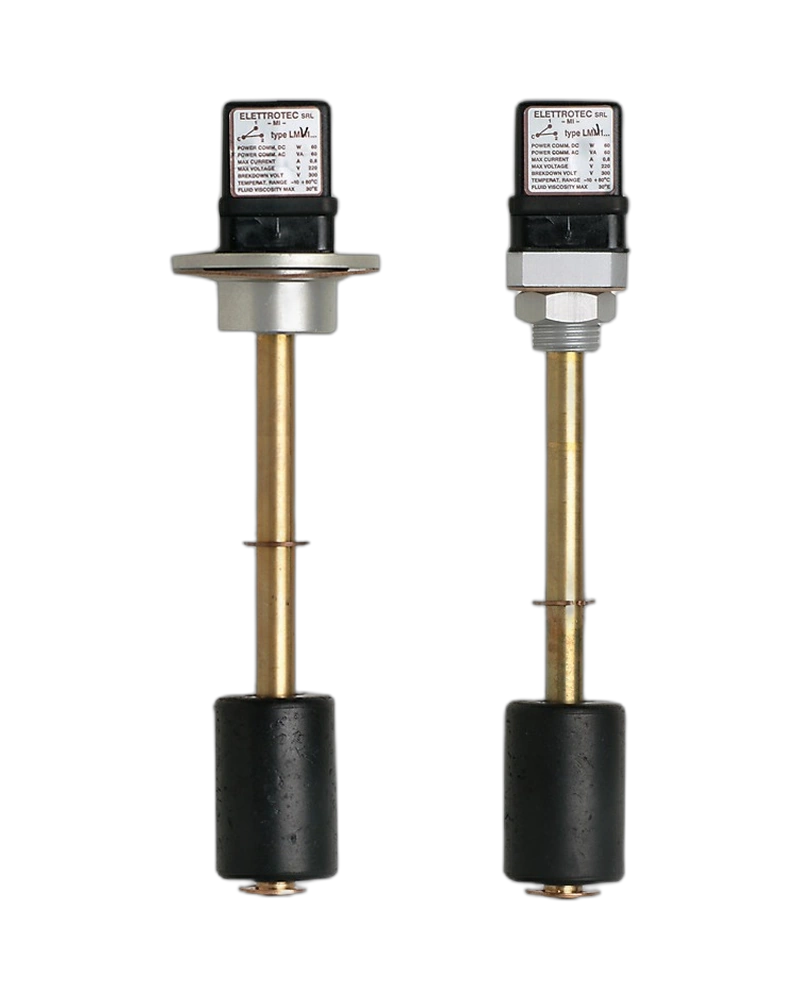

The ELETTROTEC LMV1FA250NANA - LMV1 - Level switch with two near SPST contacts - LMV1 - Level switch with two near SPST contacts is a level switch with two near SPST contacts designed for precise fluid level monitoring in industrial applications. This model features a thread M18x1.5 or flange Ø52 mounting option, operates within -10°C to +80°C temperature range, and handles up to 10 bar pressure. It includes reversible float technology with 220V/50Hz compatibility and a switching capacity of 60W/VA for resistive loads.
The ELETTROTEC LMV1FA250NANA - LMV1 - Level switch with two near SPST contacts - LMV1 - Level switch with two near SPST contacts is a robust level switch engineered for reliable fluid level detection in demanding industrial environments. With a reversible float mechanism and two near SPST contacts, this level switch provides precise control for both NC (normally closed) and NO (normally open) switching applications. Designed to operate across a wide temperature range (-10°C to +80°C) and withstand up to 10 bar pressure, it ensures consistent performance in applications involving fluids with specific gravity of 0.7 kg/dm³ and viscosity of 150 cSt.
The ELETTROTEC LMV1FA250NANA level switch operates with a maximum length of 1500 mm. It features a single actuation point contact (NC) and is designed for fluid applications with specific gravity of 0.7 kg/dm³ and viscosity of 150 cSt. The switch operates within a temperature range of -10°C to +80°C and can withstand up to 10 bar pressure. It is rated for 220V/50Hz or 60Hz with a switching capacity of 60W/VA and 0.8A current for resistive loads.
This level switch functions optimally in industrial environments with fluid temperatures ranging from -10°C to +80°C. It is suitable for applications involving fluids with specific gravity of 0.7 kg/dm³ and viscosity of 150 cSt. The switch handles up to 10 bar pressure and operates within a standard electrical range of 220V/50Hz or 60Hz, ensuring reliable performance in diverse industrial settings.
The ELETTROTEC LMV1FA250NANA - LMV1 - Level switch with two near SPST contacts - LMV1 - Level switch with two near SPST contacts is ideal for monitoring fluid levels in tanks, silos, and other storage vessels where precise level detection is critical. Its reversible float design allows for flexible switching configurations, making it suitable for both NC and NO applications. The switch's compatibility with a wide range of fluid types and operating conditions ensures it can be integrated into various industrial processes without modification.
The LMV1FA250NANA - LMV1 - Level switch with two near SPST contacts - LMV1 - Level switch with two near SPST contacts is an industrial Level. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Mounting | A – Thread M18x1.5 / FA – Flange Ø 52 |
| Size | Max. lenght 1500 mm |
| Actuation point | 1 actuation point contact NC |
| temperature range | -10°C +80°C |
| Max. pressure | 10 bar |
| temperature Range / Accuracy | 40°C – 50°C – 60°C – 70°C – 80°C |
| Switching capacity | 60W/VA |
| Current | 0.8A (resistive) |
| Voltage | 220V – 50Hz |
| Fluid specific gravity | 0.7 kg/dm 3 |
| 220V – 50 Hz / 60 Hz | 60 W 60 VA 0.8 A 0.6 pF 1010 Ohm NA / NO Modelos reversibles Reversible float |
| LM1… | 1 punto de intervencion / 1 actuation point NC |
| LM1…NA | 1 punto de intervencion / 1 actuation point NA / NO |
