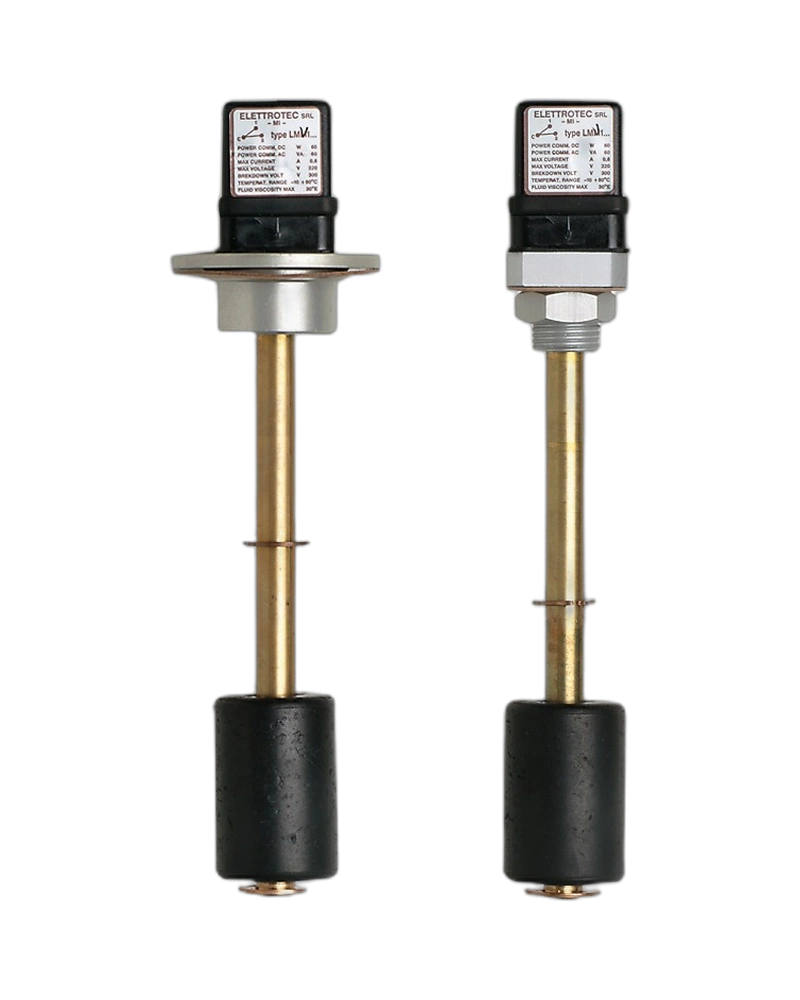

The ELETTROTEC LM2FA250 - LM1 - Level switch with one SPST contact - LM1 - Level switch with one SPST contact - LM1 - Level switch with one SPST contact is an industrial Level intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Mounting: A – Thread M18x1,5 / FA – Flange Ø 52 / TA – Thread G1”; Temperature range: -10°C +80°C; Max. pressure: FIA/TIA – 10 bar / PTIA – 8 bar.

Product Overview

The LM2FA250 - LM1 - Level switch with one SPST contact - LM1 - Level switch with one SPST contact is a Level intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Mounting of A – Thread M18x1,5 / FA – Flange Ø 52 / TA – Thread G1” for application-specific selection and integration.
• Operating temperature specification of -10°C +80°C for application planning.
• Max. pressure of FIA/TIA – 10 bar / PTIA – 8 bar for application-specific selection and integration.
• Size of Max. lenght 1500 mm for application-specific selection and integration.
• Body material of Stainless steel AISI 316 for durable industrial use.
• Operating voltage of 220V – 50Hz for compatible electrical systems.
• Fluid specific gravity of FIA/TIA – 0.7 kg/dm 3 / PTIA – 0.8 kg/dm 3 for application-specific selection and integration.
• Float material of Stainless steel AISI 316 for durable industrial use.

Applications

The LM2FA250 - LM1 - Level switch with one SPST contact - LM1 - Level switch with one SPST contact can be considered for industrial systems and equipment requiring a Level. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The LM2FA250 - LM1 - Level switch with one SPST contact - LM1 - Level switch with one SPST contact is an industrial Level. Selection should be based on the documented characteristics and the requirements of the intended application.
