Explore performance details, construction highlights, applications, and technical information in one clear overview.

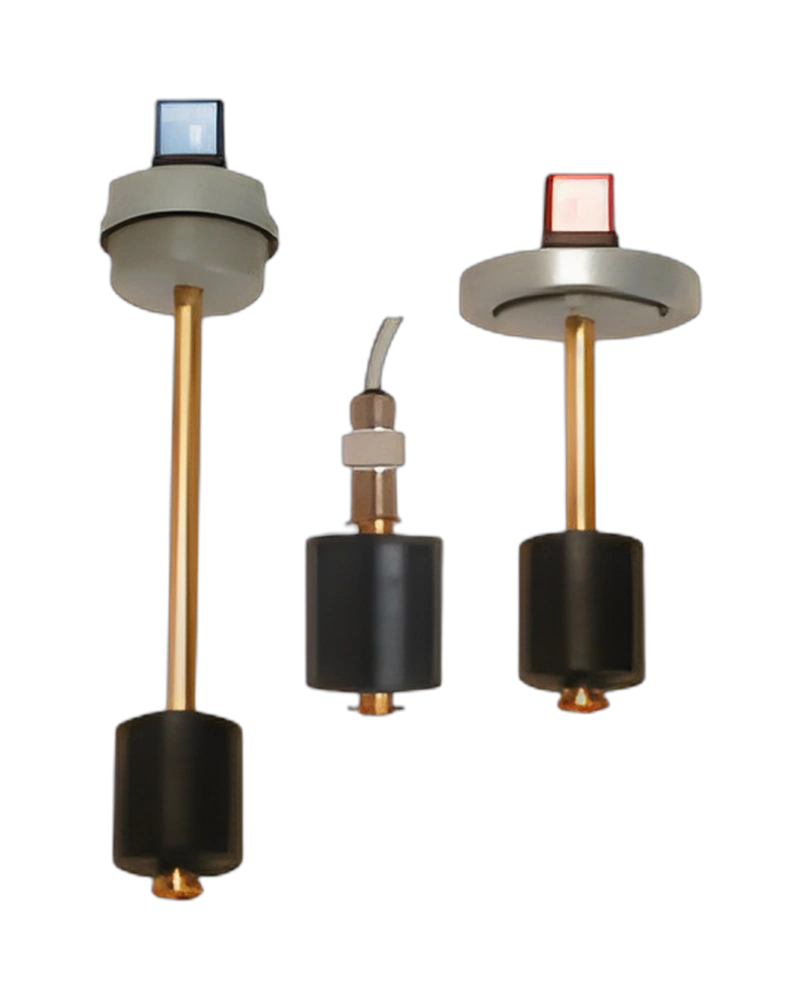

The ELETTROTEC LM1GTA150NC - LM1G - Level switch with one SPST contact - LM1G - Level switch with one SPST contact - LM1G - Level switch with one SPST contact is an industrial Level intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include 220V – 50 Hz / 60 Hz: 60 W 60 VA 0.8 A 0.6 pF 1010 Ohm NA / NO Modelli reversibili Reversible float; LM1…: 1 punto di intervento / 1 actuation point NC; LM1…NA: 1 punto di intervento / 1 actuation point NA / NO.
The LM1GTA150NC - LM1G - Level switch with one SPST contact - LM1G - Level switch with one SPST contact is a Level intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The LM1GTA150NC - LM1G - Level switch with one SPST contact - LM1G - Level switch with one SPST contact can be considered for industrial systems and equipment requiring a Level. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The LM1GTA150NC - LM1G - Level switch with one SPST contact - LM1G - Level switch with one SPST contact is an industrial Level. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| 220V – 50 Hz / 60 Hz | 60 W 60 VA 0.8 A 0.6 pF 1010 Ohm NA / NO Models reversibili Reversible float |
| LM1… | 1 punto di intervento / 1 actuation point NC |
| LM1…NA | 1 punto di intervento / 1 actuation point NA / NO |
| LMM1… | 2 punti di intervento - 1 galleggiante 2 actuation points - 1 float Min. NC Max. NA / NO |
| LM3… | 3 punti di intervento – 3 galleggianti 3 actuation points – 3 floats NC / NC / NC |
| LM4… | 4 punti di intervento – 4 galleggianti 4 actuation points – 4 floats NC / NC / NC / NC |
| temperature range | -10°C +80°C |
| Max. pressure | TIA – 10 bar / GTIA – 20 bar |
| Certification | ATEX – II 1 G Ex ia IIB T6 |
| Size | TIA – Max. lenght 1500 mm / GTIA – Max. lenght 2500 mm |
| Body material | Stainless steel AISI 316 |
| Mounting | TIA – Thread G1 1/4″ GTIA – Thread G2″ |
| Voltage | 220V – 50Hz |
| Input current | Ii 215mA |
