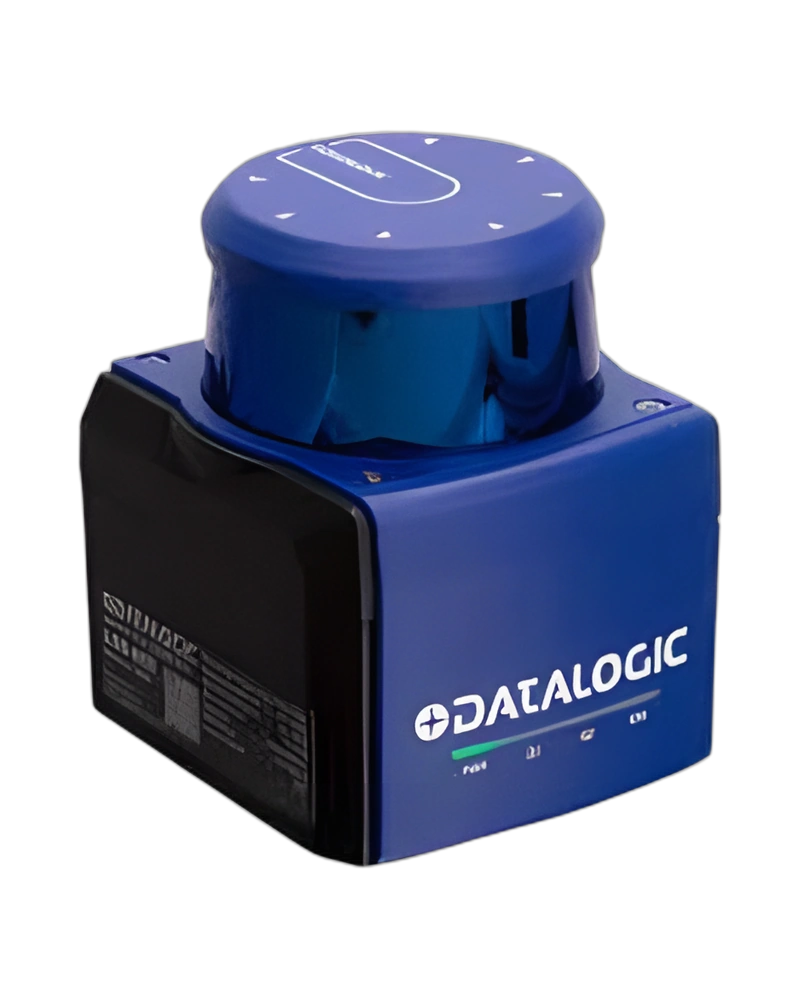

The LIDAR GUIDANCE SCANNER is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing LIDAR Guidance Scanner delivers high-precision measurements for industrial applications with repeat accuracy of < 20 mm @ 80% remission and 1 mm resolution. Its measurement range extends to 50m @ 80% remission, with angular resolution varying from 0.06° @ 10 Hz to 0.15° @ 25 Hz.
The documented configuration includes Repeat Accuracy: < 20 mm @ 80% remissione; Resolution: 1 mm; Measurement range @ 1,8% targe remission: 0.2 - 2m; Measurement range @ 10% targe remission: 0.2 - 15m; Measurement range @ 80% targe remission: 0.2 - 50m; Angular resolution @ 10 Hz: 0.06°; Angular resolution @ 15 Hz: 0.09°; Angular resolution @ 20 Hz: 0.12°.
The documented configuration includes Angular resolution @ 25 Hz: 0.15°; Accuracy: +/- 30mm @ 80% remissione; Nominal sensing distance: ≤50 m; Minimum sensing distance (blind zone): 0.2 m; max rotation speed: 25 Hz; Emission: 80 Klux; Response time: n/a; Response time: Communication protocol.
The documented configuration includes Emission: Laser IR.
The documented configuration includes Output type: IEEE 802.3u 100Mbps Ethernet; Operating Voltage: 12-32 VDC; Max output current: 30 mA max; Network Interface: Ethernet 100 Mbps IEEE 802.3u; Selectable scan frequency: 10/15/20/25 Hz; Power consumption: 7W (@25°C / 15 Hz); Optical power class: class 1 (IEC 60825-1); Configuration interface: Generic web browser.
The documented configuration includes Monitoring interface: LGS Viewer; Communication protocol: TCP/IP.
The documented configuration includes Dimensions: 95x116x97; Weight: 900 g; Storage temperature: -30° ...+ 70°C C232; Dimensions: WxDxH 95x97x116; Operating Temperature: -20° ...+50°C; Mechanical Protection: IP66; controlled height: 50 m; Relative humidity: 15..95% non condensante.
The documented configuration includes Material: Metal - Aluminium / PC; Material: Weight.
The documented configuration includes Measurement data transmission protocol: angolo punto misurato - 0.01° res; Function Principle: Lidar / pulsed TOF; Functions: AGV Navigation Laser Scanner; Measurement data transmission protocol: UDP; Application: Function Principle.
The documented configuration includes Ethernet connection: M12 4 pins M Key D; Connections: M12 4 pins M; Scan angle: 360°; Description: Compact scan view 360°; Data Transmitted: angolo punto misurato - 0.01° res; Information sent 4: time stamp in ms in 24h/ciclo; Interference to external light: 80 Klux; (laser) wavelenght: 905 +/- 20 nm ( IR).
The documented configuration includes Type: LIDAR.
| Feature | Specification |
|---|---|
| Repeat Accuracy | < 20 mm @ 80% remissione |
| Resolution | 1 mm |
| Measurement range @ 1,8% targe remission | 0.2 - 2m |
| Measurement range @ 10% targe remission | 0.2 - 15m |
| Measurement range @ 80% targe remission | 0.2 - 50m |
| Angular resolution @ 10 Hz | 0.06° |
| Angular resolution @ 15 Hz | 0.09° |
| Angular resolution @ 20 Hz | 0.12° |
| Angular resolution @ 25 Hz | 0.15° |
| Accuracy | +/- 30mm @ 80% remissione |
| Output type | IEEE 802.3u 100Mbps Ethernet |
| Ethernet connection | M12 4 pins M Key D |
| Operating Voltage | 12-32 VDC |
| Max output current | 30 mA max |
| Dimensions | 95x116x97 |
| Weight | 900 g |
| Connections | M12 4 pins M |
| Storage temperature | -30° ...+ 70°C C232 |
| Network Interface | Ethernet 100 Mbps IEEE 802.3u |
| Dimensions | WxDxH 95x97x116 |
| Operating Temperature | -20° ...+50°C |
| Mechanical Protection | IP66 |
| Nominal sensing distance | ≤50 m |
| controlled height | 50 m |
| Minimum sensing distance (blind zone) | 0.2 m |
| Selectable scan frequency | 10/15/20/25 Hz |
| Scan angle | 360° |
| Description | Compact scan view 360° |
| Data Transmitted | angolo punto misurato - 0.01° res |
| Information sent 4 | time stamp in ms in 24h/ciclo |
| Power consumption | 7W (@25°C / 15 Hz) |
| Interference to external light | 80 Klux |
| Optical power class | class 1 (IEC 60825-1) |
| max rotation speed | 25 Hz |
| Relative humidity | 15..95% non condensante |
| (laser) wavelenght | 905 +/- 20 nm ( IR) |
| Measurement data transmission protocol | angolo punto misurato - 0.01° res |
| Emission | 80 Klux |
| Configuration interface | Generic web browser |
| Monitoring interface | LGS Viewer |
| Response time | n/a |
| Material | Metal - Aluminium / PC |
| Response time | Communication protocol |
| Material | Weight |
| Function Principle | Lidar / pulsed TOF |
| Functions | AGV Navigation Laser Scanner |
| Type | LIDAR |
| Communication protocol | TCP/IP |
| Measurement data transmission protocol | UDP |
| Emission | Laser IR |
| Application | Function Principle |
