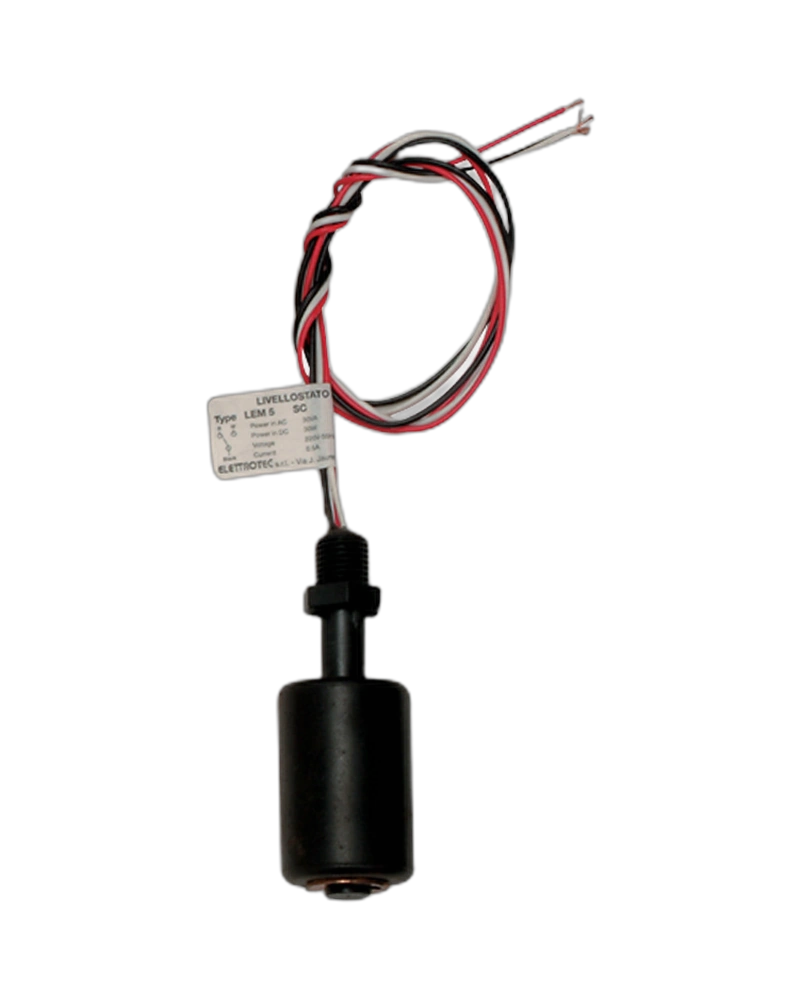

The ELETTROTEC LEM5CNNA Electromagnetic Level switch is a precision instrument for level detection in industrial processes. Designed for operation across a wide temperature range (-10°C to +80°C) and up to 5 bar pressure, it features robust NC/NO and SPDT contacts with switching capacities of 60W/VA and 30W/VA respectively. Its G1/4" mounting and NBR material ensure reliable performance in applications with fluid specific gravity of 0.7 kg/dm³ and viscosity of 150 cSt.
The ELETTROTEC LEM5LNSC Electromagnetic Level switch is a high-precision level detection instrument engineered for demanding industrial environments. This electromagnetic level switch operates within a temperature range of -10°C to +80°C and withstands maximum pressures of 5 bar, making it suitable for a variety of process conditions. With a host of features including robust contact options (NC/NO and SPDT), precise actuation points, and compatibility with a range of fluids, the LEM5LNSC delivers reliable level monitoring without compromising on performance or safety.
The LEM5LNSC Electromagnetic Level switch is designed with precise technical specifications to ensure optimal performance. It operates within a temperature range of -10°C to +80°C and withstands maximum pressures of 5 bar. The switch features NC/NO contacts capable of handling up to 60W/VA and SPDT contacts up to 30W/VA. Electrical connections include lead wires of 500 mm length, while the LEM5CNNA - Electromagnetic Level switch is constructed from Hostaform Float material with Inox AISI 316 for enhanced durability. The LEM5CNNA - Electromagnetic Level switch is compatible with fluids having a specific gravity of 0.7 kg/dm³ and a viscosity of 150 cSt, ensuring reliable operation in diverse industrial applications.
The LEM5LNSC provides flexible contact configurations to meet various control requirements. It supports both NC (Normally Closed) and NO (Normally Open) contacts with a switching capacity of 60W/VA, as well as SPDT (Single Pole Double Throw) contacts with a switching capacity of 30W/VA. Current ratings for NC/NO contacts are 0.8A (resistive) and for SPDT contacts are 0.5A (resistive), ensuring compatibility with a wide range of electrical loads. The switch also offers 1 or 2 actuation points, allowing for precise control of level detection in industrial processes.
The LEM5CNNA - Electromagnetic Level switch is engineered to handle a range of industrial fluids with specific gravity of 0.7 kg/dm³ and viscosity of 150 cSt. Its NBR material construction provides excellent chemical resistance, making it suitable for applications involving non-corrosive fluids. The switch's design ensures reliable performance even in challenging environments where fluid properties can vary significantly.
The LEM5CNNA - Electromagnetic Level switch - Electromagnetic Level switch is an industrial Level. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| temperature range | -10°C +80°C |
| Max. pressure | 5 bar |
| Mounting | G1/4” |
| Switching capacity | NC/NO contacts – 60W/VA SPDT contacts – 30W/VA |
| Current | NC/NO contacts – 0.8A (resistive) / SPDT contacts – 0.5A (resistive) |
| Voltage | 220V – 50Hz |
| Electrical connection | Lead wires L. 500 mm (standard) |
| Fluid specific gravity | 0.7 kg/dm 3 |
| Actuation point | 1 or 2 with NO – NC – SPDT contacts |
| connection | Lead wires L. 500 mm |
| Body material | Hosform Float material Inox AISI 316 Actuation point 1 or 2 with NO |
| Maximum pressure | 5 Bar |
