Explore performance details, construction highlights, applications, and technical information in one clear overview.

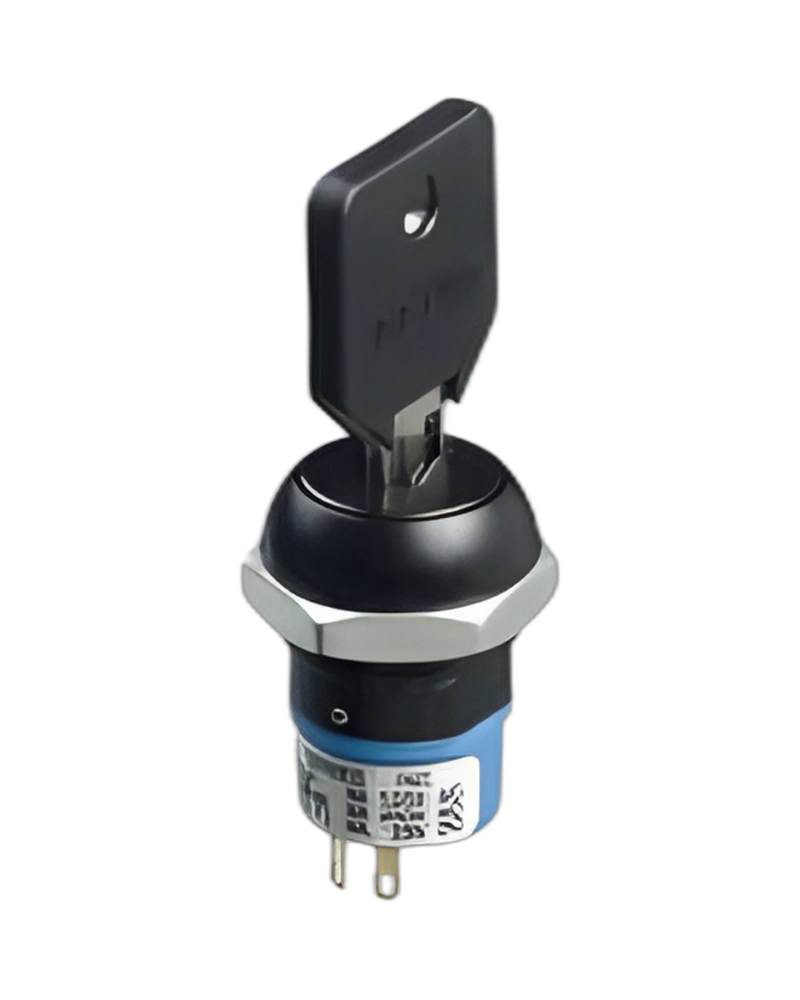

The APEM Keylock switches LK are robust autoswitches designed for reliable electrical control. These switches feature single and double pole configurations up to four positions, with gold-plated copper alloy contacts, ensuring high electrical life of 6,000 cycles at full load. They meet UL standards and deliver dielectric strength of 1000 V RMS minimum at sea level, insulation resistance of ≥109 MΩ, and contact resistance of ≤10 mΩ for demanding industrial applications.
APEM Keylock switches LK are precision-engineered autoswitches that provide dependable electrical switching solutions for industrial environments. Combining high durability with precise electrical performance, these switches are engineered to withstand rigorous operational demands while maintaining exceptional reliability. With features including gold-plated copper alloy contacts, UL certification, and robust electrical specifications, the Keylock switches LK deliver consistent performance in critical applications where electrical integrity is paramount.
The Keylock switches LK operate within contact ratings of 4A at 125 VAC or 28VDC, and 2A at 250 VAC. They feature a deflection angle of 90 degrees, ensuring precise mechanical operation under varying conditions.
With electrical life rated at 6,000 cycles at full load, these switches maintain consistent performance over extended operational periods. The contact resistance of ≤10 mΩ ensures minimal energy loss during switching operations, while the dielectric strength of 1000 V RMS minimum at sea level guarantees robust insulation against electrical stress.
The Keylock switches LK are UL certified, ensuring compliance with stringent safety standards for industrial use. This certification validates the product's reliability and safety in demanding electrical environments.
| Feature | Specification |
|---|---|
| Dielectric strength | 1000 V RMS minimum at sea level |
| Feature | Specification |
|---|---|
| Specifications Expand All + Electrical Specifications Contact rating | 4A at 125 VAC or 28VDC, 2A at 250 VAC |
| Deflection Angle | 90 degrees |
The APEMKeylock switches LK is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1000 V RMS minimum at sea level |
| Feature | Specification |
|---|---|
| Specifications Expand All + Electrical Specifications Contact rating | 4A at 125 VAC or 28VDC, 2A at 250 VAC |
| Deflection Angle | 90 degrees |
