Product Overview

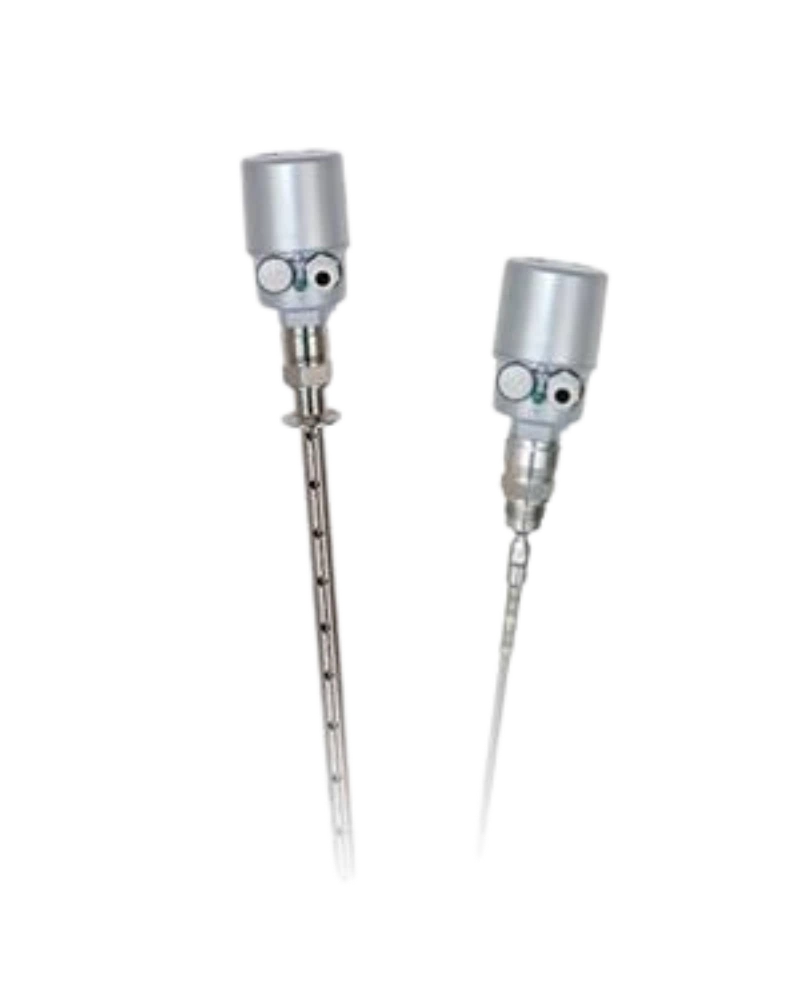

JTR Guided Wave Radar Level Transmitter - JTR305- JTR1327B-A3 is a FINETEK JTR Guided Wave Radar Level Transmitter configuration identified in the catalog by JTR305 and order code JTR1327B - A3. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual JTR305 identity rather than a generic description of the FINETEK range.

Contact guided-wave radar level measurement in which electromagnetic pulses travel along a rod, cable or coaxial probe and reflect from the medium surface. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Measuring range: 6 m / 20 m
• Accuracy: ±5 mm or ±0.1% FS, whichever is greater
• Repeatability: ±3 mm or ±0.05% FS, whichever is greater
• Operating temperature: -40 to 150 °C; high-temperature version up to 230 °C
• Operating pressure: 0 to 60 bar at 25 °C
• Power: 16–30 VDC loop / 4-wire configurations
• Output: 4–20 mA
• Current distinguishability: 1.6 µA
• Communication: HART 7.0 (2-wire) / RS485 Modbus (4-wire)
• Display: 128 × 64 LCM

Design and Features

The JTR Guided Wave Radar Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Contact measurement
• Rod, cable and coaxial configurations
• Echo-wave graphics and background-noise processing
• Suitable for steam, foam and agitation effects
• 4–20 mA two-wire operation
• Simulation of 4 mA and 20 mA output

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Power plants
• Chemical plants
• Cement plants
• Water treatment
• Paper mills
• Steel plants
• Refineries

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is JTR Guided Wave Radar Level Transmitter - JTR305- JTR1327B-A3 with order code JTR1327B - A3.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The JTR Guided Wave Radar Level Transmitter - JTR305- JTR1327B-A3 configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Measuring range: 6 m / 20 m
• Accuracy: ±5 mm or ±0.1% FS, whichever is greater
• Repeatability: ±3 mm or ±0.05% FS, whichever is greater
• Operating temperature: -40 to 150 °C; high-temperature version up to 230 °C
• Operating pressure: 0 to 60 bar at 25 °C
• Power: 16–30 VDC loop / 4-wire configurations
• Output: 4–20 mA
• Current distinguishability: 1.6 µA
• Communication: HART 7.0 (2-wire) / RS485 Modbus (4-wire)
• Display: 128 × 64 LCM

Product Identification

Model: JTR305- JTR1327B-A3. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
