Product Overview

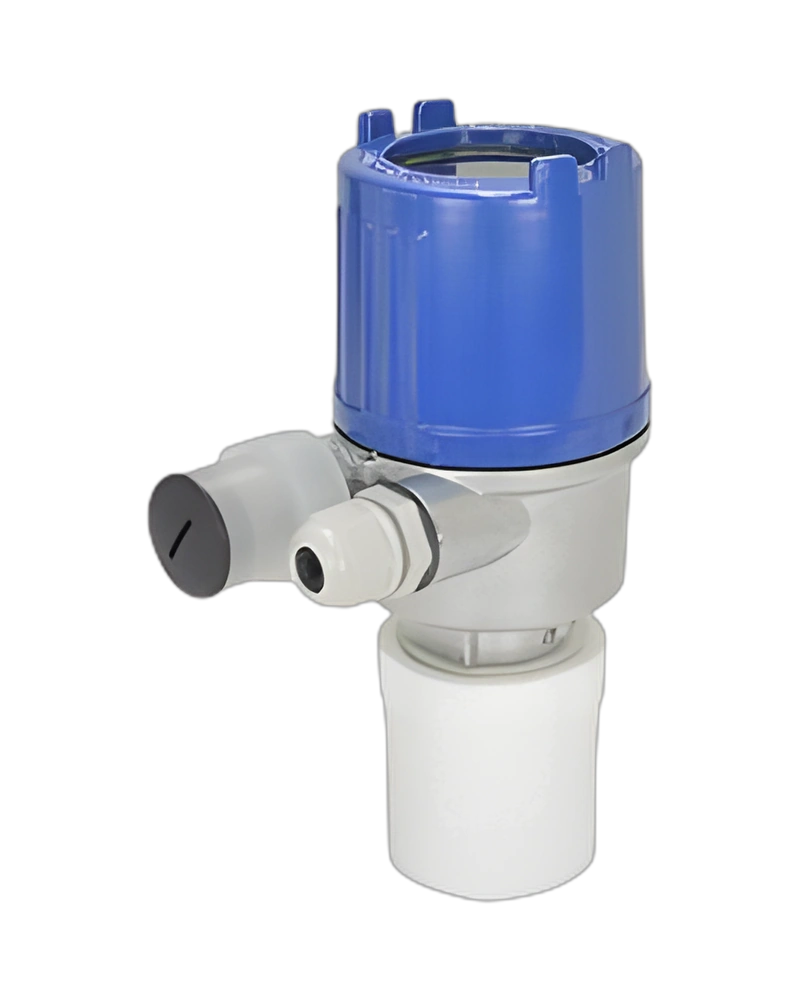

JFR3 FMCW Radar Level Transmitter - JFR301 - JFR30100-C217AAB20300CBA is a FINETEK JFR3 FMCW Radar Level Transmitter configuration identified in the catalog by JFR301 and order code JFR30100 - C217AAB20300CBA. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual JFR301 identity rather than a generic description of the FINETEK range.

Non-contact fmcw radar measurement for liquid levels, designed for demanding tanks and process environments. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Maximum power consumption: 720 mW
• Analog output: 4–20 mA
• Measurement: Non-contact liquid level
• Echo functions: Echo display and background-noise saving
• Output indication: Distance, level, percentage and 4–20 mA
• Software: FAS PC software

Design and Features

The JFR3 FMCW Radar Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Non-contact sensing
• Suitable for corrosive, toxic liquids, hydrocarbons and slurries
• Unaffected by specific gravity, temperature, viscosity and foam within the stated application envelope
• Low-power operation
• 4 mA / 20 mA output simulation
• FAS PC software support

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Water and wastewater
• Rivers, channels and pools
• Process liquids such as water, grease, resin, paint and heavy oil
• Chemical
• Agriculture/feed and grain
• Food and beverage

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is JFR3 FMCW Radar Level Transmitter - JFR301 - JFR30100-C217AAB20300CBA with order code JFR30100 - C217AAB20300CBA.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The JFR3 FMCW Radar Level Transmitter - JFR301 - JFR30100-C217AAB20300CBA configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Maximum power consumption: 720 mW
• Analog output: 4–20 mA
• Echo functions: Echo display and background-noise saving
• Output indication: Distance, level, percentage and 4–20 mA
• Measurement: Non-contact liquid level
• Software: FAS PC software

Product Identification

Model: JFR301. Order code: JFR30100-C217AAB20300CBA. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
