Product Overview

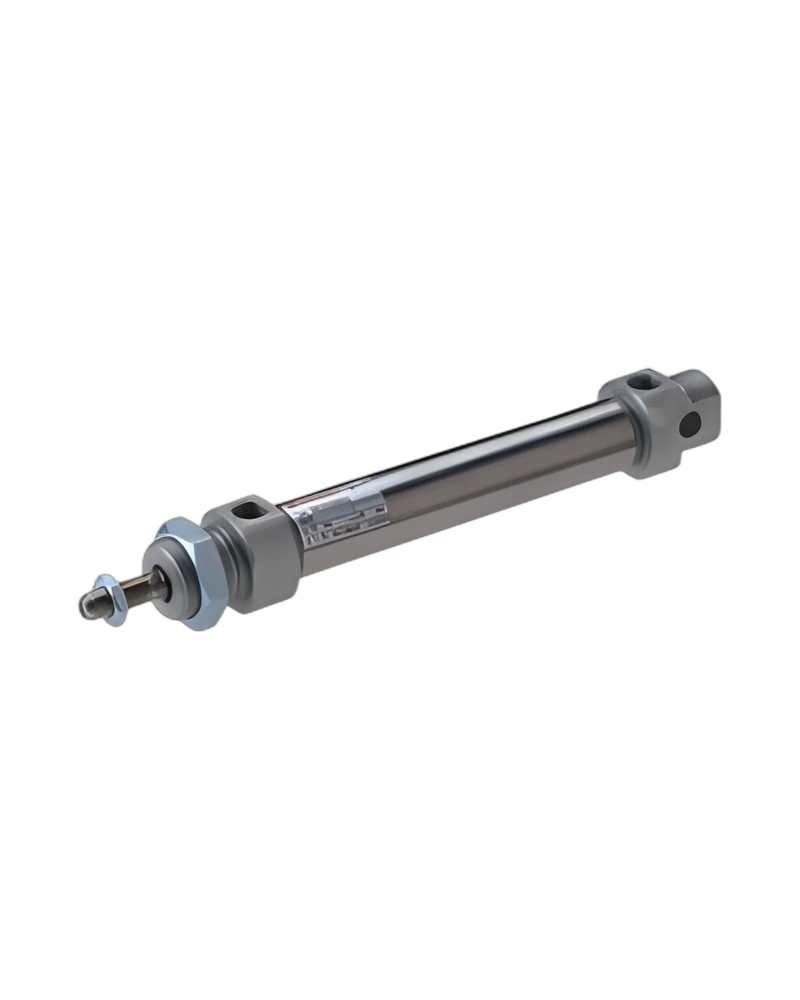

RM-8010-M-10 is a NORGREN ISO roundline double acting cylinder, 10mm diameter, 10mm stroke - RM/8010/M/10 configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Medium: Compressed air; Standard: ISO 6432; Cushioning: Buffer cushioning; Theoretical Force (6 bar): 47.1 N; Country of Origin: Czechia; Range: RM/8000/M. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Port Size: M5; Operating Temperature: -5 ... 80 °C, 23 ... 176 °F; Operating Pressure: 1 ... 10 bar, 15 ... 145 psi. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Materials - Barrel: Stainless steel (austenitic); Materials - Piston Head Seals: Nitrile rubber (NBR); Materials - Piston Rod: Stainless steel (austenitic). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Dimensions and Product Data

Additional product data includes Stroke Length: 10 mm; Dimensions - Height: 16.5 mm; Dimensions - Length: 94 mm; Dimensions - Width: 16.5 mm; Weight: 0.037 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.

Product Information

Languages 0 Basket Products Industries

Technical Specification Summary

Medium is specified as Compressed air. Standard is specified as ISO 6432. Port Size is specified as M5. Stroke Length is specified as 10 mm. Operating Temperature is specified as -5 ... 80 °C, 23 ... 176 °F. Operating Pressure is specified as 1 ... 10 bar, 15 ... 145 psi. Cushioning is specified as Buffer cushioning. Theoretical Force (6 bar) is specified as 47.1 N. Materials - Barrel is specified as Stainless steel (austenitic). Materials - Piston Head Seals is specified as Nitrile rubber (NBR). Materials - Piston Rod is specified as Stainless steel (austenitic). Dimensions - Height is specified as 16.5 mm. Dimensions - Length is specified as 94 mm. Dimensions - Width is specified as 16.5 mm. Weight is specified as 0.037 kg. Country of Origin is specified as Czechia. Range is specified as RM/8000/M.
